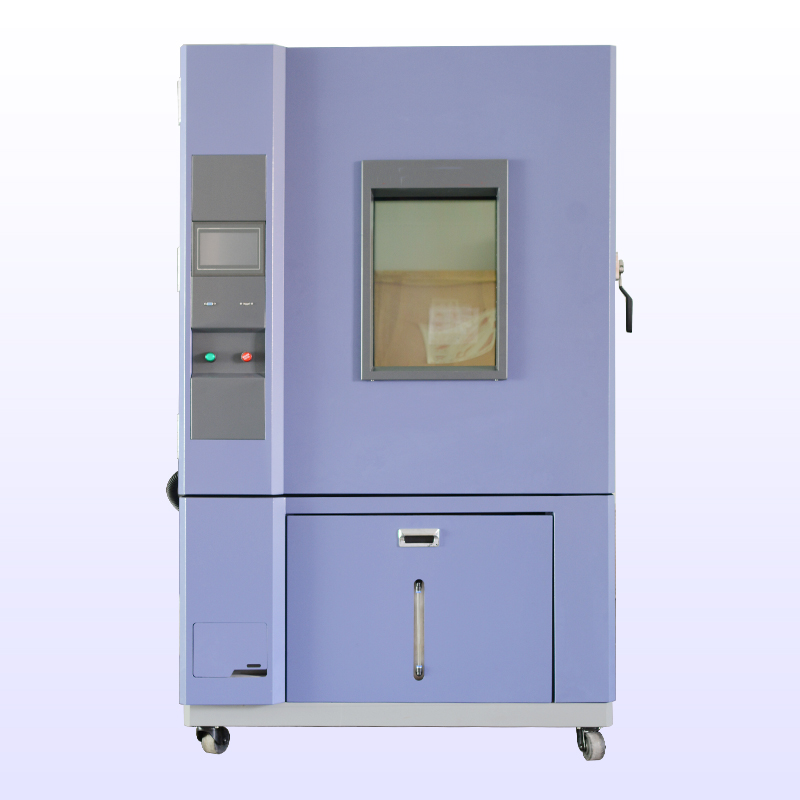

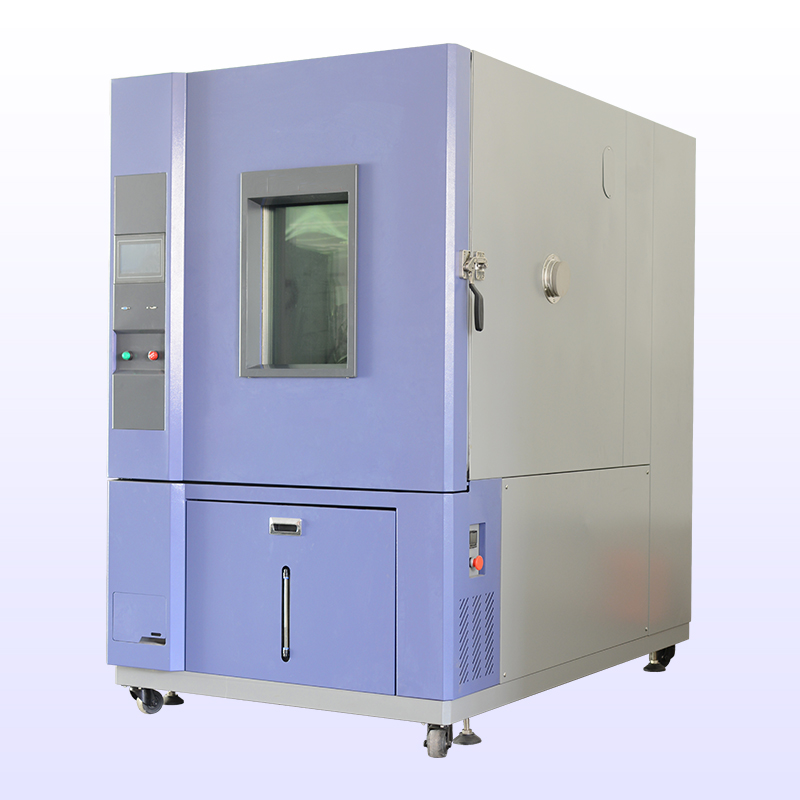

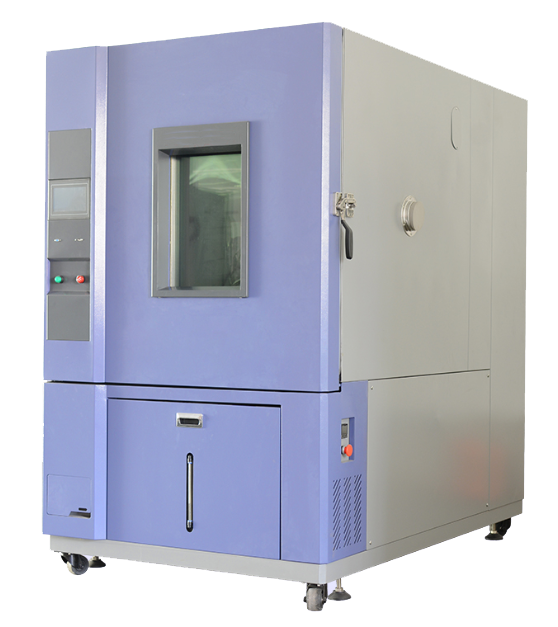

1000L Constant temperature and humidity test chamber
PRODUCT DETAILS
Used to test the performance of materials in various environments and test heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.
|
Performance
|
Temp.& Humi. Adjust Way
|
Balanced temperature and humidity control (BTHC) PID intelligent adjustment
|
|
Temperature range
|
-20℃,-40℃,-70℃~150℃
|
|
|
Temperature accuracy
|
0.01℃
|
|
|
Temperature tolerance
|
≤±1.0℃
|
|
|
Temperature fluctuations
|
≤±0.5℃ (without load and temperature stable)
|
|
|
Temperature uniformity
|
≤1.5℃ (without loading), 50mm≤SENSOR
|
|
|
Humidity range
|
20%-98%RH
|
|
|
Humidity accuracy
|
0.1%RH
|
|
|
Humidity tolerance
|
≥75%RH:≤±3%RH ;
≤75%RH :≤±6%RH |
|
|
Humidity fluctuations
|
≤±2.5%RH
|
|
|
Heating rate
|
3℃/min in average
|
|
|
Cooling rate
|
1℃/min in average
|
|
|
Internal Chamber Material
|
Stainless Steel 304
|
|
|
External Chamber Material
|
Stainless Steel steel of paint spray
|
|
|
Regulator
|
Cooling Method
|
Single stage compression, two stage compression
|
|
Refrigerator
|
Hermertically Sealed France Tecumseh Compressor or
Semi-hermetic BOcK Compressor |
|
|
Condensation Method
|
Air-cooled
|
|
|
Controller
|
Operation Panel
|
Programmable LCD Touch Screen
|
|
Running Mode
|
Fix Running, Pattern Running
|
|
|
Program Memory Capacity
|
120 Group Programmable, Max 100 Section Each
|
|
|
Output
|
Rs-232 (USB,Optional)
|
|
|
Water sup
|
Water Supply
|
Circulating Water
|
|
Water Tank Capacity
|
Chamber Internal Capacity < 800L: 25L * 1pc
Chamber Internal Capacity > 800L: 25L* 2pc |
TEST CHAMBER APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around door-frame
4. One 50 mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
