Luggage and luggage rod fatigue testing machine
PRODUCT DETAILS

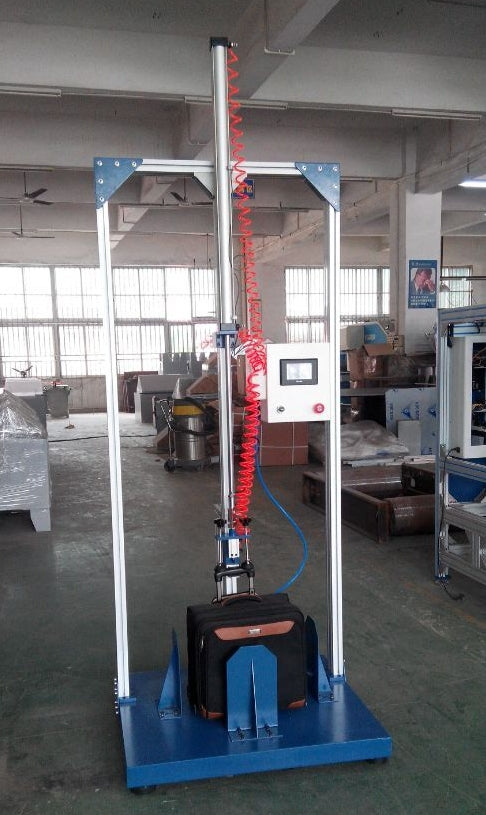

Product Name: Luggage Telescopic Handle Fatigue Tester
Model: JYGL-10000A (Customizable)
Product Overview:
The Luggage Telescopic Handle Fatigue Tester evaluates the durability, structural stability, and resistance to jamming/noise of telescopic handles on suitcases and travel bags through high-frequency extension/retraction simulations. Compliant with ASTM D4169, QB/T 2155, and other standards, it supports 100,000+ test cycles, ideal for luggage manufacturers, quality inspection agencies, and third-party labs to ensure compliance and reduce return rates.
Key Features
-
Multi-Dimensional Fatigue Testing
-
Adjustable Stroke: 0–500mm (motorized), speed 5–60 cycles/min, compatible with 20–32-inch luggage handles.
-
Load Simulation: 0–50kg electric weight loading to replicate real-world stress, with deformation accuracy ±0.1mm.
-
-
Intelligent Control System
-
7-inch touchscreen + PLC control with preloaded brand-specific programs (e.g., Samsonite, RIMOWA).
-
Real-time monitoring of peak force (0–500N) and friction coefficient; auto-alert for abnormal resistance spikes (≥20% increase).
-
-
Industrial-Grade Durability
-
High-strength alloy frame + German INA linear guides ensure ≤0.2mm displacement error over 100,000 cycles.
-
Modular clamps adapt to single/double handles (aluminum/steel), with <3-minute setup.
-
-
Certified Data Reporting
-
Generates CNAS/ISTA reports with cycle counts, resistance curves, and 120fps HD failure analysis videos.
-
Applications
-
Luggage Manufacturing: Handle lifespan validation, children’s backpack handle QC.
-
E-Commerce: Durability sampling for trending products (AQL 1.0–4.0).
-
Testing Labs: ASTM D4169 certification, export compliance checks.
-
R&D: Material comparison (carbon fiber vs. aluminum alloy).
Technical Specifications
-
Test Frequency: 5–60 cycles/min
-
Max Stroke: 500mm (extendable to 800mm)
-
Load Capacity: 0–50kg (motorized)
-
Test Stations: 1–4 (optional)
-
Power Supply: AC220V 50Hz
Core Advantages
✅ High Efficiency: 200 tests/day with 99% data consistency.
✅ Smart Diagnostics: AI noise detection identifies jamming/breakage/deformation.
✅ Military Durability: Mitsubishi servo motors + Schneider components for 500,000+ cycles.
✅ Full Support: Free testing plans + 24/7 remote assistance.
