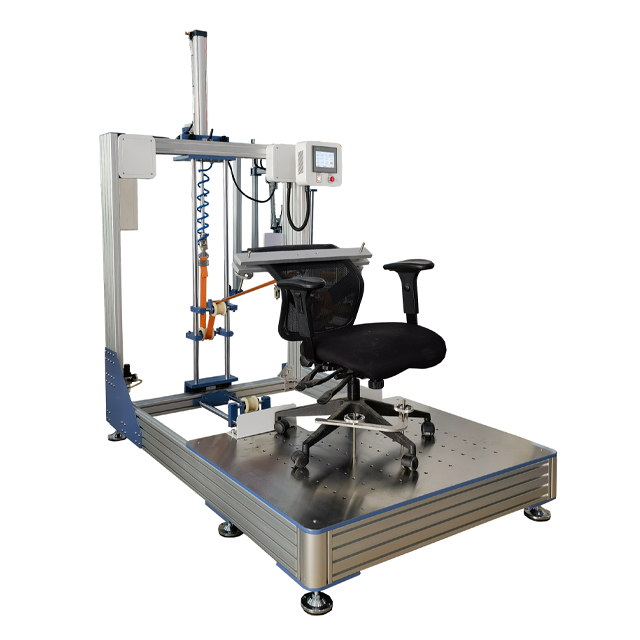

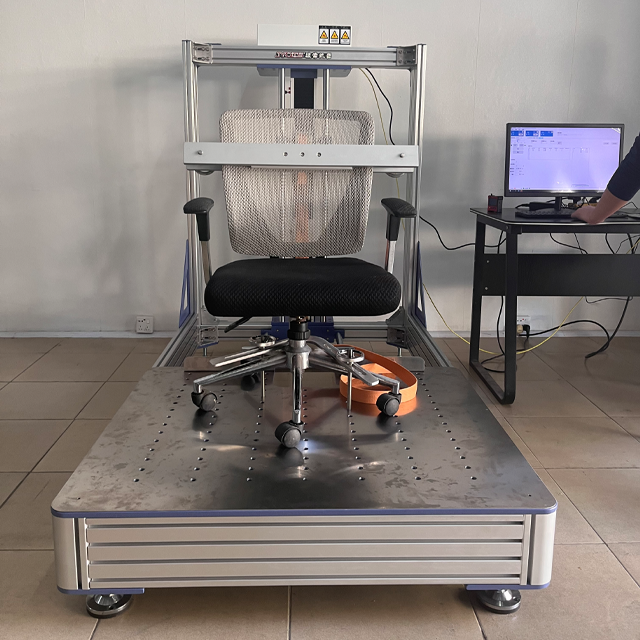

Office chair backrest testing machine
PRODUCT DETAILS
Office Chair Backrest Testing Machine – Simulate Real-World Durability & Safety
BIFMA X5.1, EN 1335 & ANSI/BIFMA Certified for Ergonomic Compliance
Our Backrest Testing Machine rigorously evaluates the structural integrity, fatigue resistance, and load-bearing capacity of chair backs, ensuring office chairs meet global safety standards and withstand years of daily use.
Core Testing Capabilities
Multi-Axis Dynamic Testing
- Static Load Test: Apply up to 2000N vertical/horizontal force to simulate user leaning or tilting.
- Cyclic Fatigue Test: 100,000+ cycles at 1–10 Hz (adjustable speed) to replicate repeated stress.
- Torsional Test: ±30° rotational force to assess backrest twist resistance.
- Impact Resistance: Optional drop weight module (e.g., 15kg from 100mm height).
Smart Control & Precision
- Force Accuracy: ±0.5% FS with dual load cells (front/rear monitoring).
- Displacement Tracking: 0.01mm resolution linear encoders.
- Angular Measurement: ±0.1° precision for reclining mechanisms.
Automation & Compliance
- Pre-Programmed Standards: BIFMA X5.1, EN 1335, GB/T 22894, ANSI/BIFMA.
- Batch Testing: Robotic arm auto-loads samples (test 15 chairs/hour).
- Real-Time Alerts: Detect cracks, joint failures, or permanent deformation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Load Capacity | 2000 N (450 lbf) |
| Test Speed | 5–500 mm/min (static), 1–10 Hz (cyclic) |
| Test Space | Adjustable height: 500–1200 mm |
| Data Sampling Rate | 1000 Hz |
| Power Supply | 220V±10%, 50/60Hz |
| Compliance | CE, ISO 17025, BIFMA X5.1-2023 |
Applications
✅ Office Chairs: Test mesh, foam, or hybrid backrests for corporate/ergonomic chairs.
✅ Gaming Chairs: Validate high-stress reclining and lumbar support durability.
✅ Healthcare Seating: Ensure compliance with medical equipment fatigue standards.
✅ Material R&D: Compare plastic, steel, or composite backrest frames.
Why Choose Our Machine?
✅ Multi-Standard Testing: Single machine covers BIFMA, EN, ANSI, and GB/T.
✅ Fail-Safe Design: Overload protection, emergency stop, and self-diagnostic software.
✅ Comprehensive Reports: Export force-time curves, cycle counts, and deformation data.
✅ Global Support: 3-year warranty, on-site calibration, and 24/7 remote assistance.
Customer Success Stories
“This machine helped us reduce warranty claims by 40% by catching weak weld points in prototypes.”
– ErgoDesign LLC, USA
“Testing 200+ chairs per month, the automated cycles cut our lab costs by 50%.”
– EuroOffice Furniture Group, Spain
FAQ
Q: Can it test chairs with adjustable lumbar support?
A: Yes! Custom fixtures simulate real-user adjustments (manual or motorized).
Q: How to prepare samples?

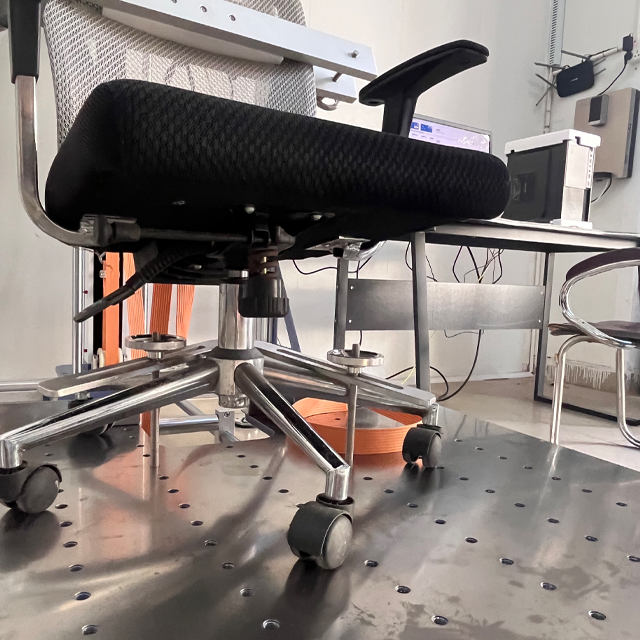

A: Mount chairs as used (with base) or isolate backrests for component-level testing.
Q: What’s the maintenance schedule?
A: Lubricate rails every 500 hours; annual calibration recommended.
Q: Can it test reclining office chairs?
A: Yes – add the optional multi-axis motion module for synchronized tilt/force tests.
Upgrade Your Chair Testing Lab Today!
📞 Request a Demo Video | 📧 Download Compliance Guide | 🌍 Global Shipping in 3 Weeks
