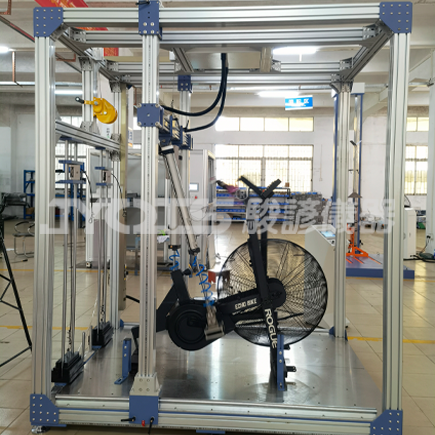

Spinning Bike Fatigue Testing Machine

Product Details

Mechanical Performance Parameters

• Test Force: Typically equipped with 2 sets of load cells, each with a capacity of 3000 N per set, and an accuracy of up to ±1%.

• Test Frequency: Adjustable within the range of 0–5 Hz.

Control and Display Parameters

• Control Method: Usually operated through a 7-inch smart touchscreen with PLC programming control.

• Display Method: The touchscreen provides real-time display of test parameters and status, such as test force, number of test cycles, and test frequency.

Stroke and Space Parameters

• Test Space Width: Generally 1200 mm.

• Displacement Stroke: Designed to accommodate spinning bikes of various sizes, with some equipment offering upward, downward, leftward, and rightward movement capabilities.

Other Parameters

• Power Source: Primarily uses a pneumatic control system.

• Power Supply: Typically AC 220V, 50Hz.

• Counting Range: 0–999,999 cycles.

• Load Time Setting: Can be set freely between 1 second and 99 hours 99 seconds.

• Dimensions and Weight:

  • Mainframe dimensions: Approximately 1400 × 1650 × 1850 mm.
  • Weight: Approximately 300 kg.
