Single column tensile strength testing machine
PRODUCT DETAILS

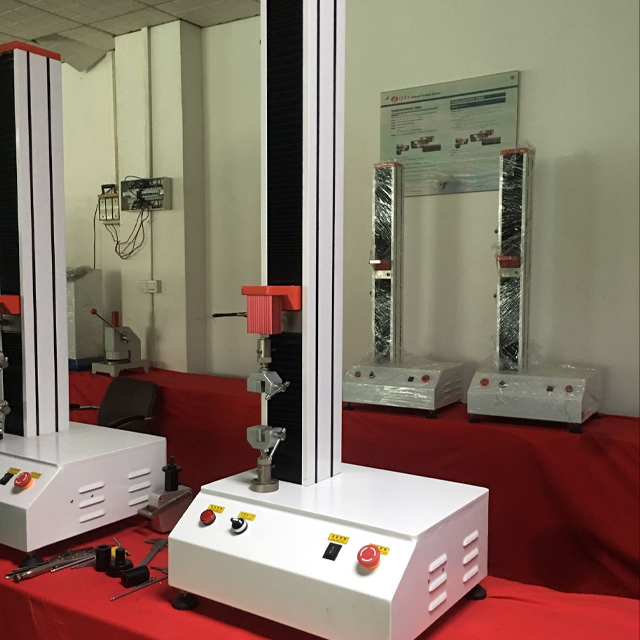

Single Column Universal Testing Machine – Precision Force Measurement for Materials & Components
Test Tensile, Compression, Flexural, and Shear Properties with Unmatched Accuracy
Our Single Column Universal Testing Machine delivers laboratory-grade performance in a compact design, ideal for QA labs, R&D centers, and educational institutions. Compliant with ASTM E8, ISO 6892, and GB/T 228.1, this machine ensures precise evaluation of metals, plastics, textiles, and more.
Key Features & Technical Excellence
⚙️ Versatile Testing Capabilities
- Load Capacity: 1 kN to 50 kN (configurable).
- Test Types: Tensile, compression, bending, peel, shear, and cyclic fatigue.
- Speed Range: 0.001–500 mm/min (±1% speed accuracy).
🎯 High-Precision Measurement
- Force Sensor: Imported strain-gauge load cell (±0.5% FS accuracy).
- Displacement Control: Optical encoder with 0.001 mm resolution.
- Extensometer Option: Clip-on or video extensometer for strain measurement (±0.5% accuracy).
💻 Smart Operation & Software

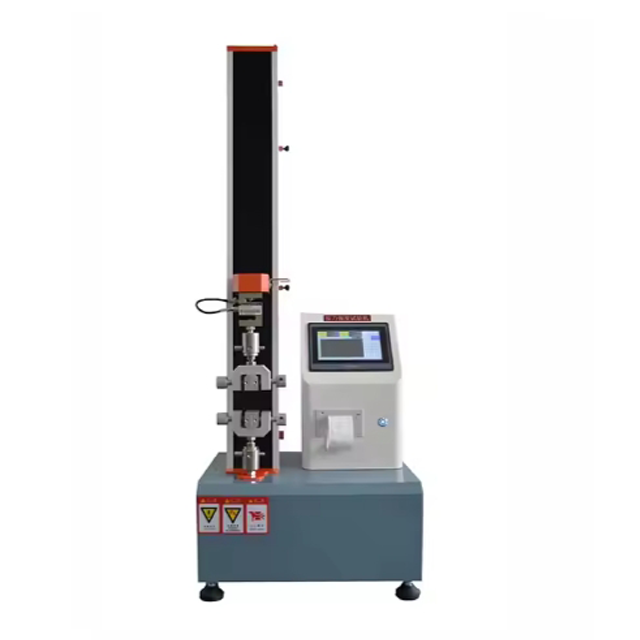

- 7-inch touchscreen HMI with pre-loaded ASTM/ISO test templates.

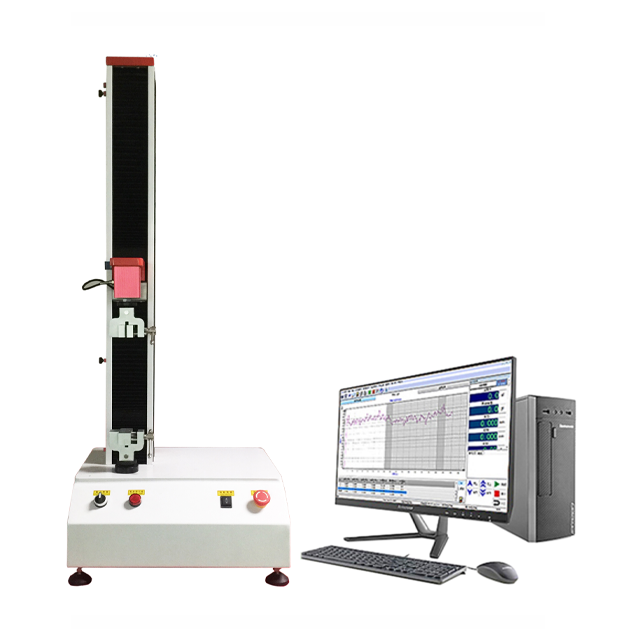

- Real-time stress-strain curves, data logging, and customizable reports (PDF/Excel).
- USB/RS-232 ports for seamless data export and integration with LabView™.
🔧 Durable & User-Friendly Design
- Frame: Rigid single-column structure with hardened steel guide rods.
- Drive System: Servo motor + ball screw for smooth, low-noise operation.

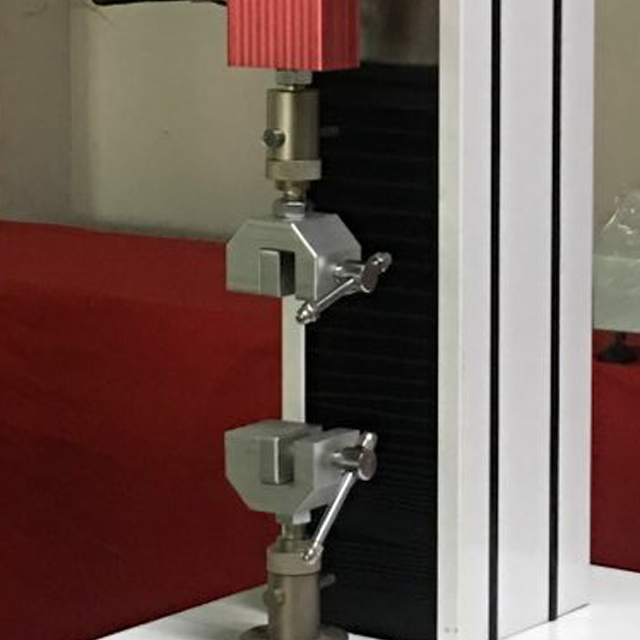

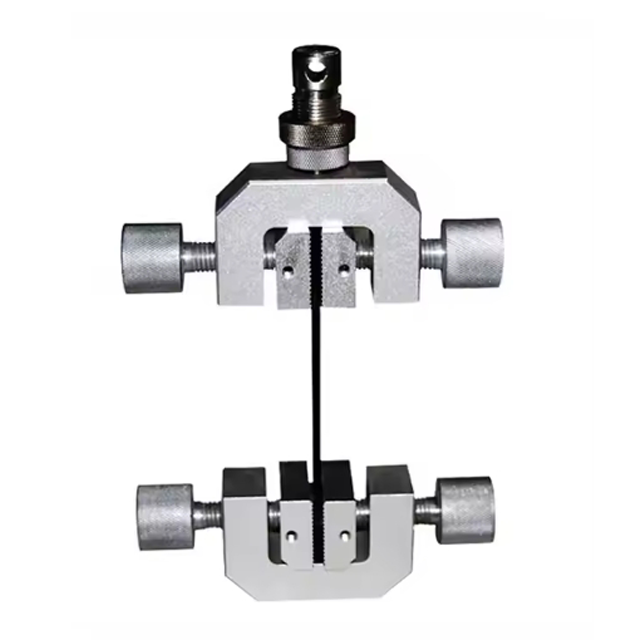

- Grips & Fixtures: Interchangeable wedge grips, compression plates, and 3-point bend fixtures (EN ISO 7500-1 compliant).
Applications
✅ Metals: Yield strength, elongation, and modulus of elasticity (ASTM E8).
✅ Polymers: Tensile strength, elongation at break (ISO 527, ASTM D638).
✅ Textiles & Cables: Breaking force of fibers, ropes, and wire harnesses.
✅ Packaging: Peel strength of adhesives, tear resistance of films (ASTM D882).
✅ Components: Fasteners, springs, and small structural parts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Load | 1 kN / 5 kN / 10 kN / 50 kN |
| Test Speed | 0.001–500 mm/min |
| Vertical Space | 1000 mm (standard) |
| Accuracy | ±0.5% of indicated load |
| Power Supply | 220V±10%, 50/60Hz |
| Weight | 150 kg (5 kN model) |
Why Choose Our Testing Machine?
✅ Space-Saving: Compact footprint fits small labs or production floors.
✅ Plug-and-Play: Pre-calibrated and ready for operation.
✅ Cost-Effective: 30% lower maintenance cost vs. dual-column models.
✅ Global Compliance: CE, RoHS, and ISO 17025 traceable calibration.
✅ Support: 24/7 technical assistance with 2-year warranty.
Customer Success Stories
“This machine simplified our tensile testing for automotive fasteners. The software’s auto-calculations saved us hours per batch!”
– Precision Components Ltd., UK
“From plastics to aluminum alloys, the single-column design handles all our R&D needs. The accuracy rivals high-end models.”
– Material Science Lab, Germany
FAQ
Q: Can I test both soft materials (e.g., rubber) and hard metals?
A: Yes! Adjust the load cell and grips for low-force (rubber) or high-stiffness (metals) testing.
Q: Is training provided for the software?
A: Free virtual training is included. We also offer on-site setup (optional).
Q: How to maintain the machine?
A: Lubricate guide rods monthly and recalibrate annually. Full manuals are provided.
Q: Can I add cyclic fatigue testing?
A: Yes! Upgrade with our fatigue testing module (up to 10 Hz frequency).
Request a Quote or Demo Today!
📞 Speak to an Expert | 📧 Custom Configuration | 🌍 Global Shipping & Support
