Environmental - Rain Test Chamber

Product Details

Structure and Material:

• Chamber Construction: The body of the rain test chamber is made of high-quality SUS304 stainless steel, ensuring excellent corrosion resistance. Both the chamber and the parts in contact with water are made from stainless steel for durability and reliability in wet conditions.

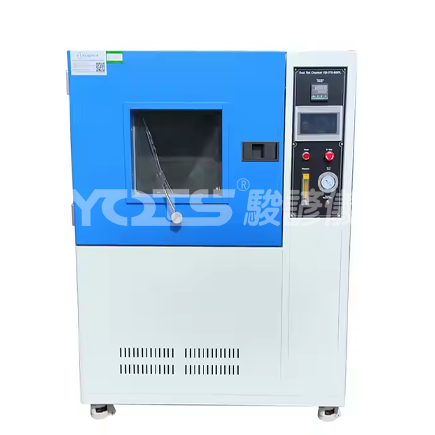

• Door: The chamber features a large, transparent visual door, making it easy to monitor the testing process without interrupting the test.

Water Spray System:

• Spray Nozzle Aperture: Typically ranges from 0.4mm to 1.0mm.
• Number of Nozzles: Usually between 16 to 20 nozzles for uniform water distribution.
• Spray Hole Spacing: Generally 50mm between spray holes for consistent coverage.
• Spray Ring Radius: The radius of the spray ring is usually R375mm.
• Spray Pipe Diameter: Typically 20mm for smooth water flow.
• Rain Water Pressure: Typically set at 3Kpa.
• Water Flow Supply: 10 kg of water for the test process.
• Flow Rate: 24.5 liters/min, ensuring a steady and continuous water flow during the test.

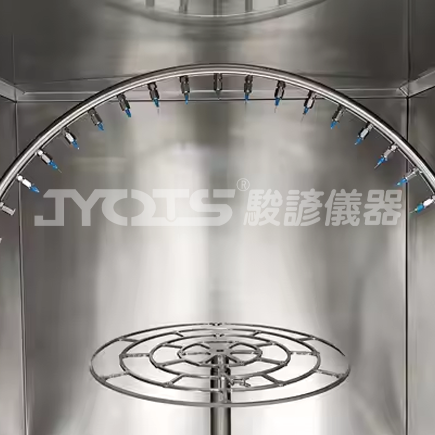

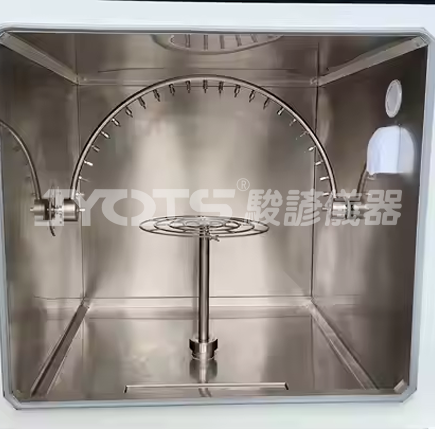

Oscillating Pipe System:

• Swing Angle: The oscillating pipes can be set at various angles such as 60°, 90°, 130°, allowing for versatile simulation of rain exposure.
• Swing Speed Adjustment: The swinging speed is infinitely adjustable, providing flexibility to meet different testing needs and conditions.

Test Platform:

• Platform Speed: The test platform's speed can be adjusted from 1-17r/min.
• Test Platform Area: The area of the test platform can be customized based on the specific needs of the user.

Technical Parameters

Control System:

• Control Method: The chamber is controlled by a PLC module with fully automatic hand-written settings, providing a user-friendly interface that is intuitive and aesthetically pleasing. The system is designed for easy and efficient operation.

• Display Features: The system can display real-time data, including temperature and humidity curves, to monitor and analyze the testing conditions.

• Memory Function: The chamber has a historical memory function that allows users to access up to 7 days' worth of past test records for reference and analysis.

Additional Parameters:

• Power Supply: The standard operating voltage is typically AC220V±10%, 50Hz.

• Safety Protection Features: The chamber is equipped with various safety mechanisms, including:

  • Grounding protection
  • Overload protection for the power supply
  • Low water protection
  • Short-circuit protection
  • Alarm system with audible and visual alerts for safety and malfunction warnings.

• Environmental Requirements:

  • Operating temperature range: 5°C to 30°C.
  • Relative humidity: ≤85% RH, ensuring optimal performance and safety during operation.
