Introduction:

Ring compression test machine can be used in many different types of test, such us ring crush test, edge crush test, glue strength test. Tensile test and peel test can also be operated on this instrument.

Basic Knowledge

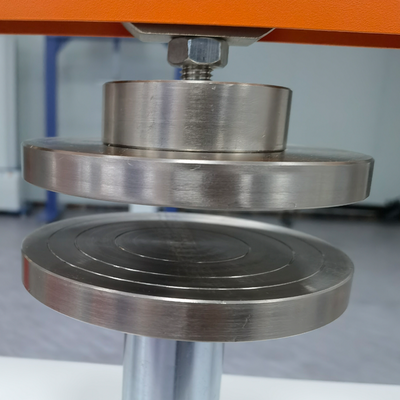

The instrument adopts a single-chip microcomputer intelligent control system. It is able to automatically complete the test items according to the test requirements. By changing the direction drive screw with motor, the single microcomputer reaches the the movement of upper and lower pressure plate. In the meanwhile, the stroke limit protection switch is arranged in the range of travel, and the pressure sensor is protected. By measuring the force system of high precision pressure sensor and peak keeping, storage, experimental data and statistics can be set with a plurality of samples, the system can calculate with samples of the maximum and minimum value, average value, standard deviation and coefficient of variation, these data are stored in the data memory, and through the LCD display.In addition, the instrument also has the printing function: print the statistical data of the tested samples according to the requirements of the experiment report.

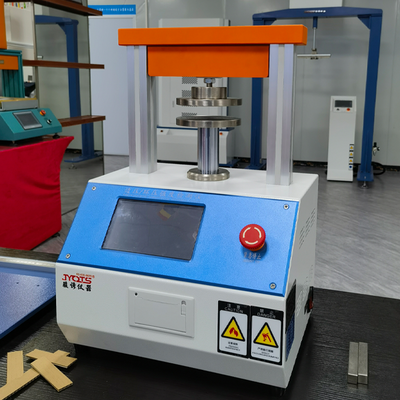

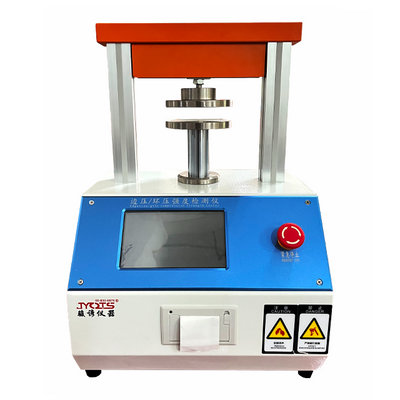

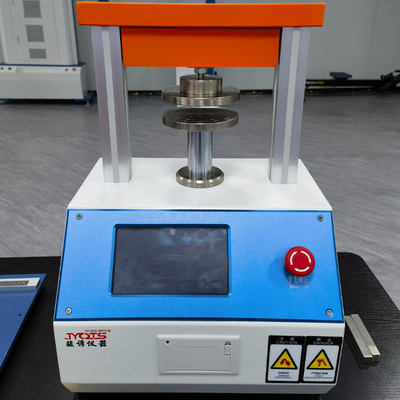

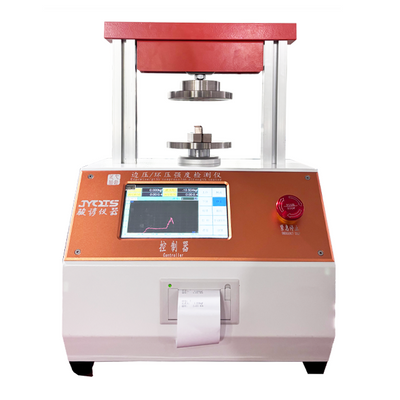

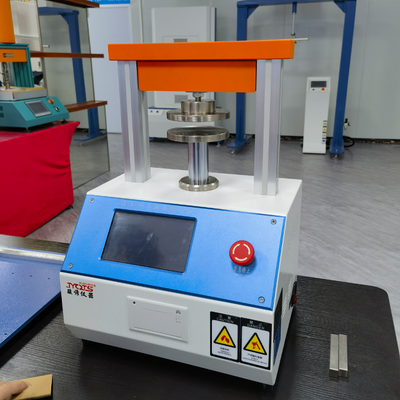

Cardboard Edge Compression Strength Compression Tester for Corrugated Paper
