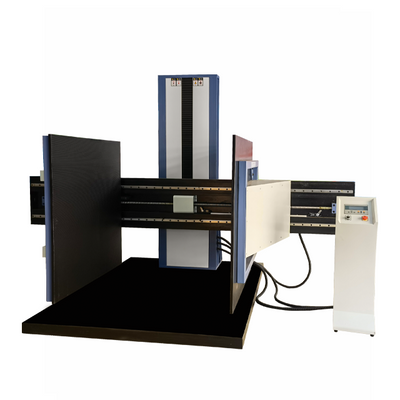

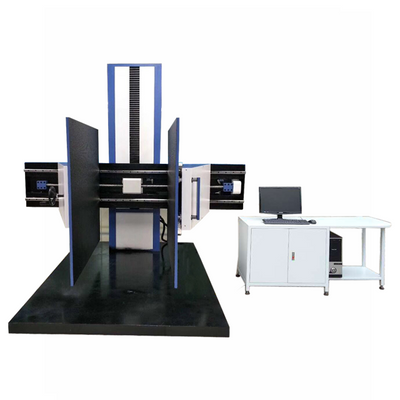

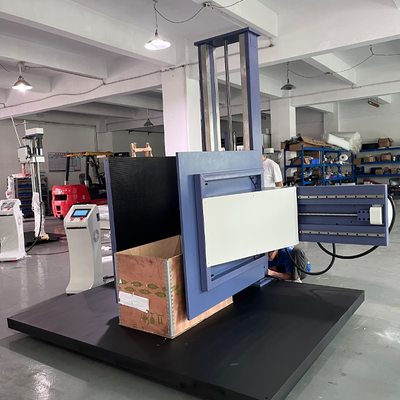

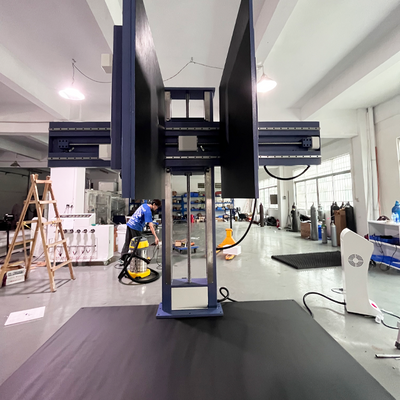

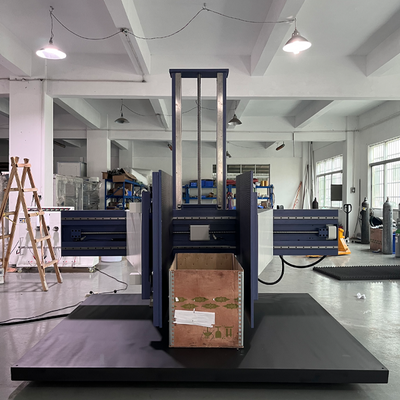

Carton Clamp Test Machine – Simulate Forklift Handling for Packaging Integrity

Validate Corrugated Box Durability Under Real-World Clamp Truck Stresses
Our Carton Clamp Test Machine replicates forklift clamp forces and lateral pressures to assess carton deformation, edge crush resistance, and stacking stability. Compliant with ASTM D6055, ISO 12048, and TAPPI T804, this system is critical for optimizing packaging design and reducing supply chain damage in logistics and warehousing.

Core Technologies & Features

📦 Realistic Clamp Force Simulation

Clamp Pressure: 0–5,000 N (adjustable via hydraulic/pneumatic systems).
Test Modes:
- Static Clamping: Hold force for 1–60 mins (simulate pallet storage).
- Dynamic Compression: Cyclic loading (1–5 Hz) to mimic repeated handling.
- Lateral Shear Test: Apply side pressure up to 3,000 N (EN 22872 compliance).

📏 Precision Measurement

Deformation Sensors: Laser displacement sensors (±0.1 mm accuracy) track box deflection.
Load Cells: Measure clamp force (Class 0.5 accuracy) and edge crush resistance (ECT).
Data Output: Generate stress-strain curves, peak load values, and failure analysis reports.

🔧 Robust Construction

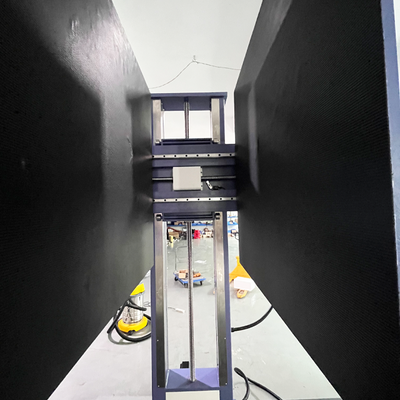

Clamp Arms: Hardened steel with anti-slip rubber pads (adjustable width: 200–1,200 mm).
Test Platform: 1,000×1,000 mm steel plate with T-slots for multi-box stacking tests.
Safety: Emergency stop, overload protection, and safety light curtains.

💻 Smart Control System

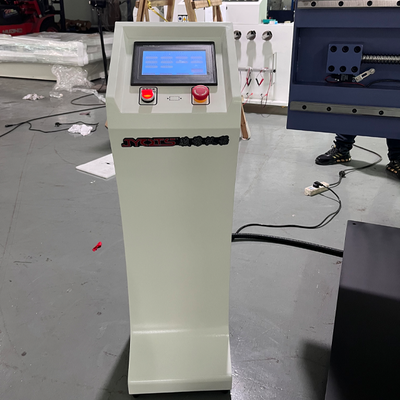

7-inch HMI touchscreen with preset ISTA 3E, ASTM D4169, and custom clamp profiles.
Real-time graphics of force vs. displacement and automated pass/fail judgment.
USB/Ethernet data export for PDF/Excel reports (barcode scanner optional).

Technical Specifications

Parameter	Specification
Max Clamp Force	5,000 N (1,124 lbf)
Clamp Arm Width	200–1,200 mm (adjustable)
Test Speed	1–500 mm/min (static), 1–5 Hz (dynamic)
Max Sample Size	1,200×1,200×1,200 mm (L×W×H)
Power Supply	380V/50Hz or 220V/60Hz
Compliance	ISO 12048, FEFCO 8, GM 10-Day Stack Test

Applications

✅ Corrugated Packaging: Optimize box ECT, burst strength, and palletizing stability.
✅ Third-Party Logistics (3PL): Certify packaging for retail giants (e.g., Amazon ISTA 6-SAMSCLUB).
✅ E-Commerce: Test mailer boxes and multiwall sacks for clamp truck abuse.
✅ Automotive: Validate parts packaging for just-in-sequence (JIS) handling.
✅ Food & Beverage: Ensure beverage cartons survive high-pressure DC environments.

Why Choose Our Clamp Test Machine?

✅ Real-World Correlation: Preloaded profiles for Chep pallets, clamp trucks, and automated warehouses.
✅ Cost Efficiency: Reduce packaging material waste by 20% through optimized design.
✅ Durability: Reinforced frame withstands 10,000+ test cycles annually.
✅ Global Compliance: CE, UL, and ISO 17025-certified calibration.

Customer Success Stories

“Testing 50+ box designs under 3,000N clamp force helped us slash logistics damage by 35%.”
– PackInnovate Solutions, USA

“The lateral shear test exposed weak seams in our export cartons – a $500K/year savings!”
– Global Logistics Co., Germany

FAQ

Q: How to prepare samples for clamp testing?
A: Condition boxes at 23°C/50% RH for 24h (TAPPI T402). Mark compression faces and edges.

Q: Can it test plastic totes or IBCs?
A: Yes! Use our interchangeable clamp heads (flat, serrated, or vacuum grip options).

Q: How to correlate lab data with real damage rates?
A: Our software includes ISTA 3B and ASTM D4169 DC13 profiles for field-validated simulations.

Q: Maintenance requirements?
A: Lubricate guide rails monthly; calibrate load cells every 6 months (kits included).

Upgrade Your Packaging Testing Today!

📞 Request a Free Trial | 📧 Custom Quote in 24h | 🌍 Global Installation & Training
