Product Description

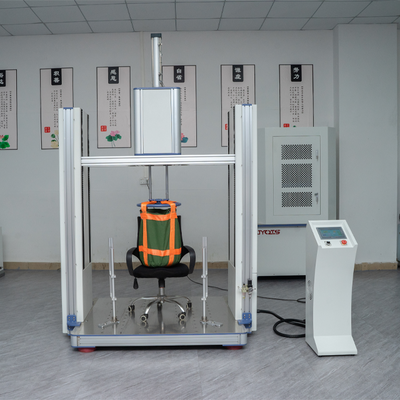

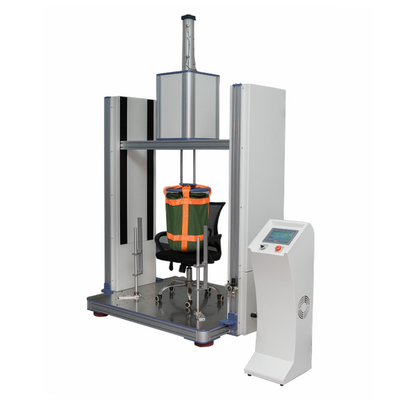

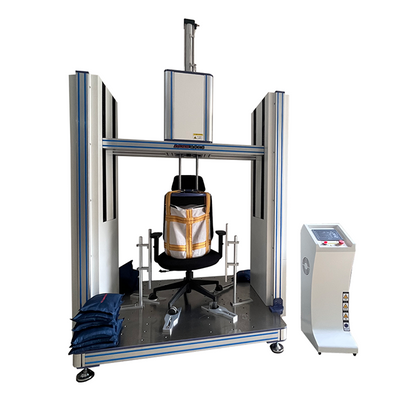

The office chair impact testing machine is used to test the deformation, loosening and melting damage of each part of the seat surface of the office chair under the repeated impact of a certain weight, speed and a specified number of times to determine the quality of the product. It can also be used as a one-time impact test for office chairs to observe the impact resistance of its tripod, air bar and seat bracket. One machine has multiple uses, saving equipment costs for customers.

Working principle

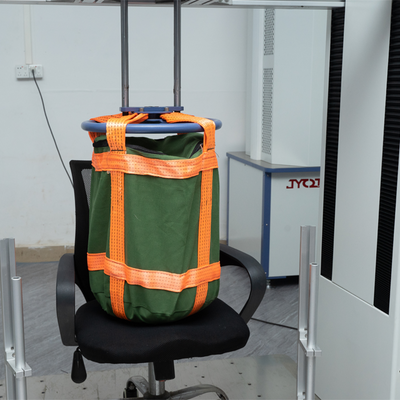

Simulate a product with a seating surface to sit on the product with the weight of the human body, and test the durability of the product

Features

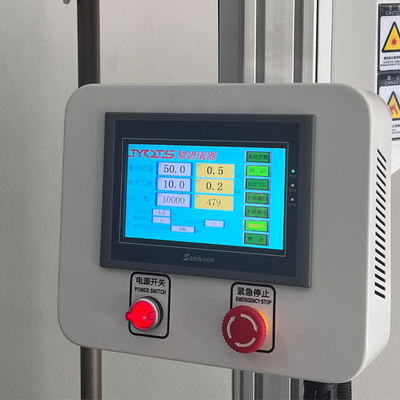

1. Aluminum profile frame structure, stainless steel test platform, beautiful structure 2. Use the electromagnet to pull in and release, completely simulate the free fall state, there is no resistance during the drop process, and the voice is low 3. Equipped with hydraulic buffer mechanism, which greatly reduces the impact noise 4. The horizontal direction of the chair adopts the foot cup structure to maintain the position, so that the chair is not constrained by external force in the vertical direction 5. Easy to operate, no need for any special tools to assist 6. With stop and power off memory function 7. Use the motor to adjust the impact height, which is convenient, fast and precise.

Specification

Maximum impact height	250mm
Impact speed	10-30 times/min
Specimen limit	the highest is less than 1000mm, the widest is less than 1200mm
Volume	120×136×210cm
Weight	200 kg
Power supply	AC～220V 50Hz
Standard：QB/T 2280-2016 BIFMA X5.1-2017 BIFMA X5.4-2020 BIFMA X5.9-2019 EN 1728:2012 EN 1730:2012

1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(60.00%),North America(20.00%),Eastern Europe(5.00%),Northern Europe(4.00%),Western Europe(3.00%),South America(3.00%),Southern Europe(2.00%),Mid East(2.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Test Chamber,Test Machine

4. why should you buy from us not from other suppliers?
1.With owner well known brand of OTS ( Overall Testing Systems) 2.With long history since 1978 3. Three factory from Taiwan ,Dongguan City and Suzhou City 4.Fast Delivery &Service ,high quality ,OEM & Customized requirements are acceptable

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian

chair Durability Impact Test Instrument
