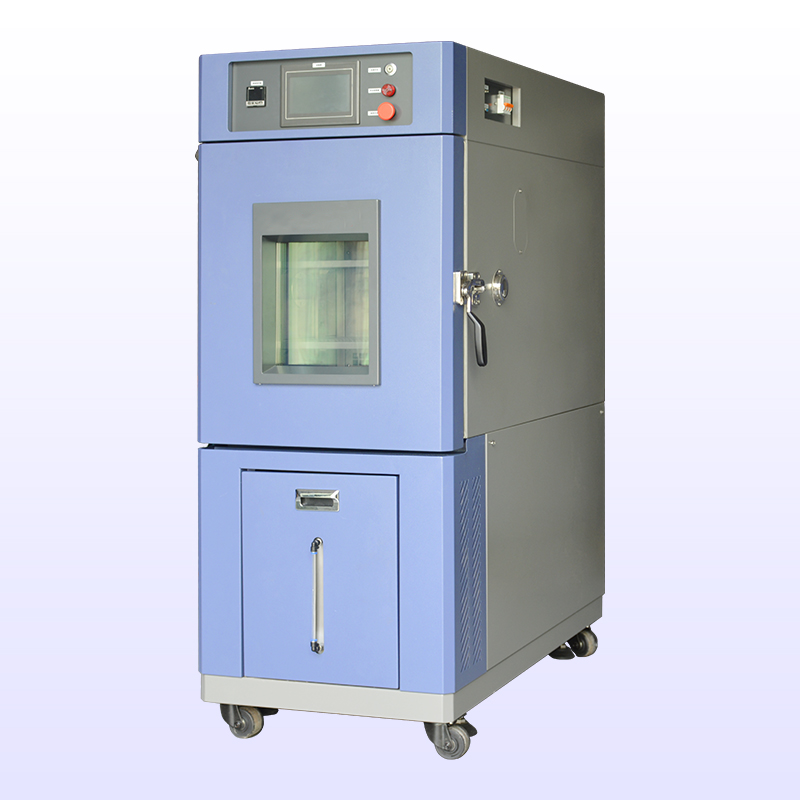

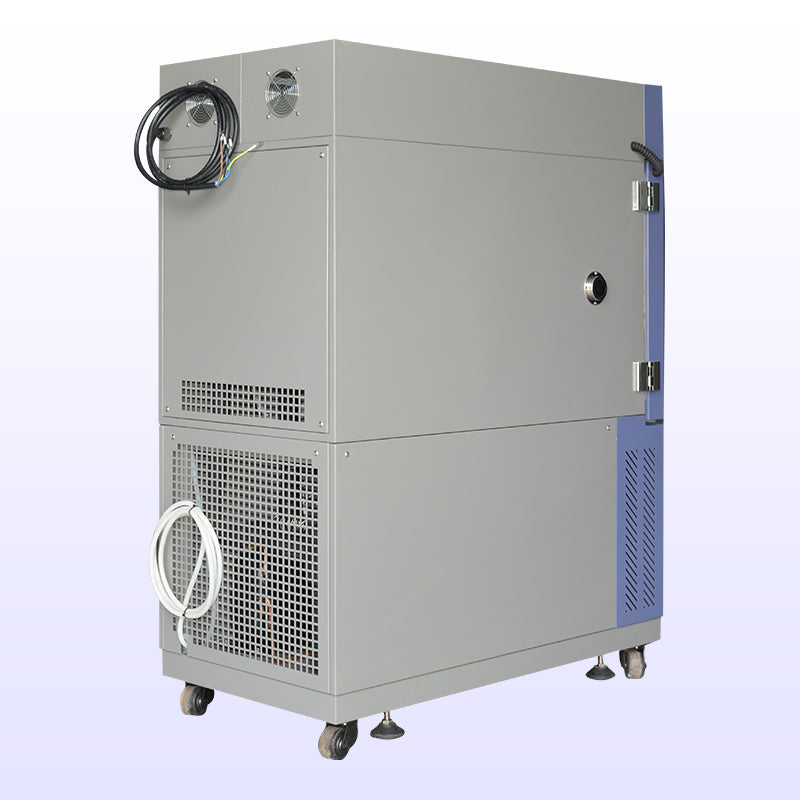

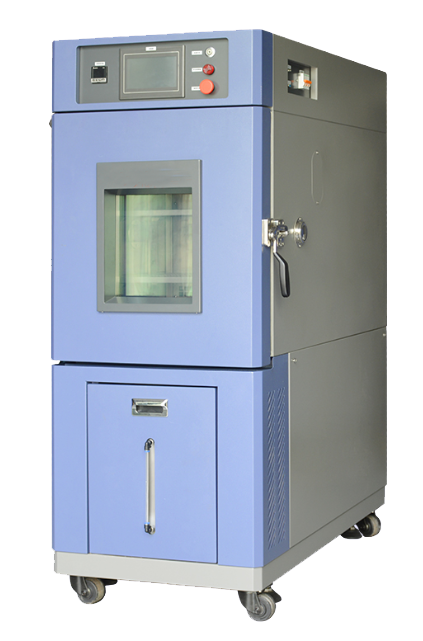

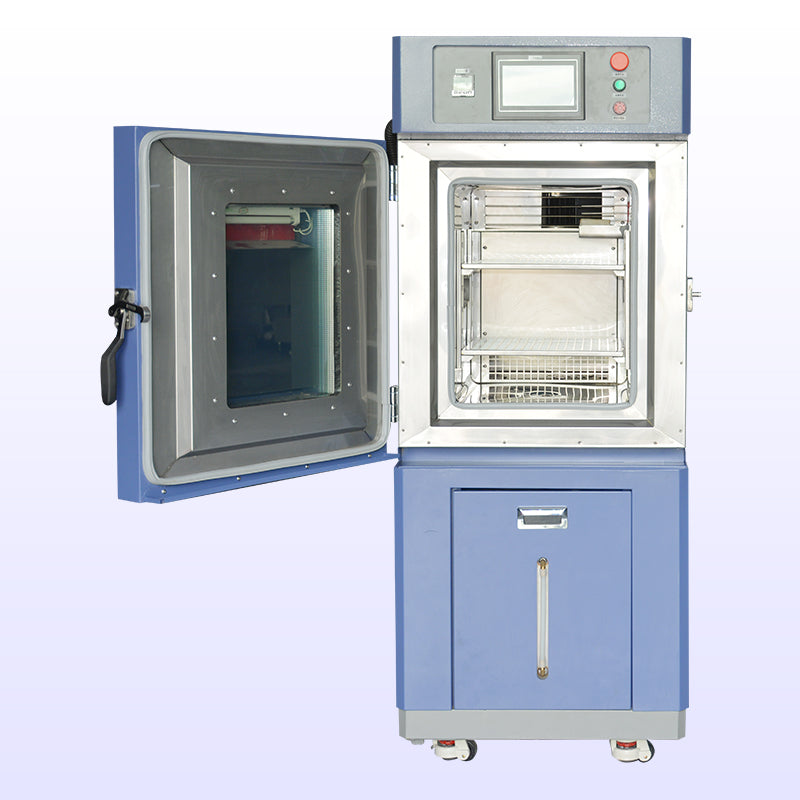

80L Constant temperature and humidity test chamber for electronics and semiconductors

PRODUCT DETAILS

50L Custom sizes available

At high temperatures, the test can reveal potential issues such as softening, reduced performance, altered characteristics, potential damage, and oxidation of product components and materials (for example, the softening or melting of fillers and seals, decreased stability and insulation damage in electronic circuits, and accelerated aging of polymers and insulators). At low temperatures, the test can reveal issues such as cracking, brittleness, jamming of moving parts, and altered characteristics (for example, hardening and brittleness of materials, changes in the performance of electronic components, water condensation and ice formation, and mechanical structural changes due to material contraction).

Test Standard 1.IEC60068-2-1 2.IEC60068-2-2 3.IEC60068-2-38 4.IEC60068-2-78

Model
JY-100
JY-150
JY-225
JY-408
JY-800
JY-1000
Inner volume
100L
150L
225L
408L
800L
1000L
W*H*D(mm)inner size
400*500*500
500*600*500
500*750*600
600*850*800
1000*1000*800
1000*1000*100
W*H*D(mm)external size
600*1400*1300
700*1500*1300
700*1650*1400
800*1750*1600
1200*1900*1650
1200*1900*1850
Temperature range
Low temperature:0℃、-20℃、-40℃、-55℃-60℃、-70℃;high:+150℃、+100℃、+80℃(adjustable)
Humidity range
5%~98RH;10%~98%RH; 20%~98%RH
Temperature change rate
3℃/min, 5℃/min, 10℃/min,15℃/min, 20℃/min,25℃/min (adjustable)
Temperature fluctuation
±0.2℃
Humidity fluctuation
±3%RH
Temperature uniformity
≤2℃
Humidity uniformity
±3%RH
Heating time
About 3~4℃/min
Temp.rising speed
+10℃→+80℃ 25 min nonlinearity(load testing))
Lead hole
2pcs 50mm (customize)

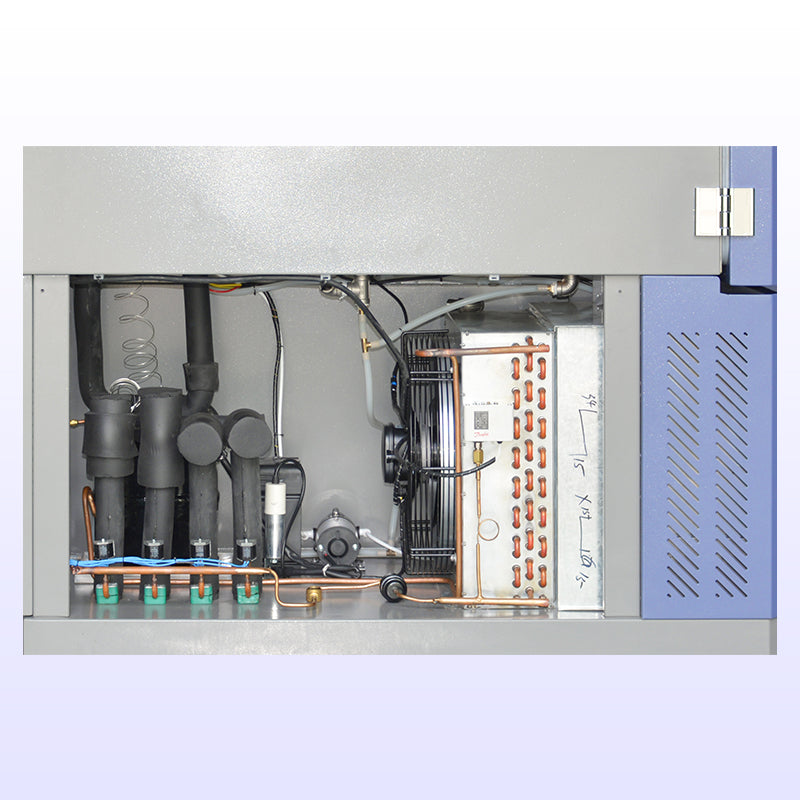

Condenser
Air-cooled condenser.
Cooling time
About 0.7℃~1.5℃/min (customize , linear or nonlinear )
Cooling method
Air or water cooling type
Heating system
Stainless steel fin heat pipe heating air way
Materials
SUS304 stainless steel
Total power
AC380V、50Hz、Three-phase four-wire + protected ground.
