【Product Overview】

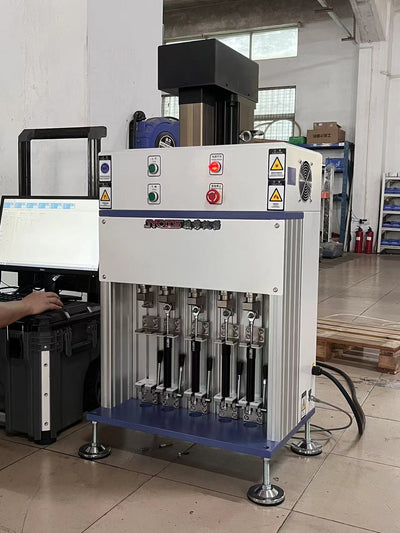

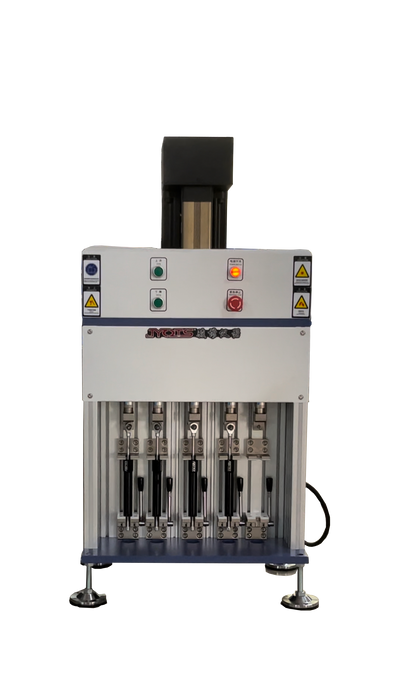

JUNYAN Brand Damper Testing Machine is engineered for automotive shock absorbers, home appliance damping rods, and industrial buffers. It integrates bidirectional tension-compression testing with a dynamic force range of 0.1N-50kN, complying with ISO 18137 and ASTM E1876 standards. Featuring 100% automated defect detection and sorting, it boosts production line yield by 35%, serving global clients like Tesla and Gree.

【Core Advantages】

✅ Nanoscale Precision
0.5-grade servo closed-loop system + rigid frame achieves 0.001N force resolution and ±0.002mm displacement accuracy. Thermal drift compensation ensures data stability across -40℃~+150℃ environments, with repeatability error <0.1%.

✅ Smart QC System
12" touchscreen preloads 50+ test programs (fatigue life, multi-speed cycles, SPC analysis). Auto-generates PDF reports synchronized to MES/QMS systems, with QR code traceability and real-time data dashboards.

✅ Industrial-Grade Durability
Carbon fiber dual-column structure + imported linear guides enable adjustable speed (1-1000mm/min), 2 million+ continuous cycles, 40% energy savings, and 60% lower maintenance costs.

✅ Smart Factory Integration
Modular fixtures accommodate φ1mm~250mm workpieces. Optional robotic arms and 3D vision positioning ensure seamless Industry 4.0 integration.

【Technical Parameters】

Parameter	Specification
Max. Test Force	50kN (Customizable to 200kN)
Displacement Resolution	0.001mm
Test Frequency	1-100 cycles/min
Sensor Accuracy	±0.5% F.S.
Power Supply	380V±10%/50Hz (3-phase)

【Applications】

◼ Automotive Shock Absorbers Full Inspection ◼ Home Appliance Hinge Lifespan Testing
◼ Aerospace Hydraulic Buffer Certification ◼ Rail Transit Component Fatigue Validation

【Service Commitment】

🔧 Free Customized Testing Solutions & Fixture Design
🔧 3-Year Full Machine Warranty + Lifetime Core Component Support
🔧 48-Hour Global Technical Response + On-Site Debugging
