Product Details

This machine is designed to evaluate the impact on product performance when the product is accidentally dropped by the customer during actual use.

This machine is designed to evaluate the impact on product performance when the product is accidentally dropped by the customer during actual use. It is suitable for drop and acceleration testing of small consumer electronics such as mobile phones, PDAs, telephones, electronic dictionaries, CDs, MP3 players, adapters, batteries, and similar devices.

Technical Parameters

Here’s the professional translation of the provided technical content:

Features of the Drop Testing Machine

Precision Height Adjustment: Utilizes an AC servo motor with a synchronous pulley to adjust the drop height. The system ensures precise height positioning and long-lasting durability.
Touchscreen and PLC Control: Equipped with a color LCD touchscreen and PLC for motion control and settings. The drop height can be directly set, and the machine will automatically stop when the desired height is reached. Features include power-off memory, with all controls—such as drop, reset, height setting, and counting—completed via the touchscreen.

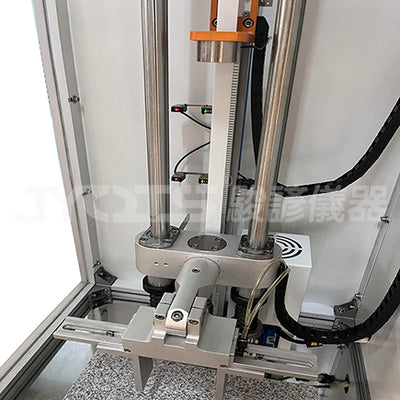

Specialized Fixture Design: Professional fixtures allow testing on product edges, corners, and surfaces. The fixture and drop assembly can be manually rotated 180 degrees with a locking mechanism for angle adjustment. The front end of the fixture can also be adjusted and locked at 180 degrees, while the side clamps are manually adjustable to accommodate products of different shapes and sizes. A pneumatic release mechanism quickly releases the product, ensuring it falls in a free-fall manner to the preset drop surface.
Drop Accuracy: When released from a height of 300mm, the product's drop angle closely matches the test's preset angle.

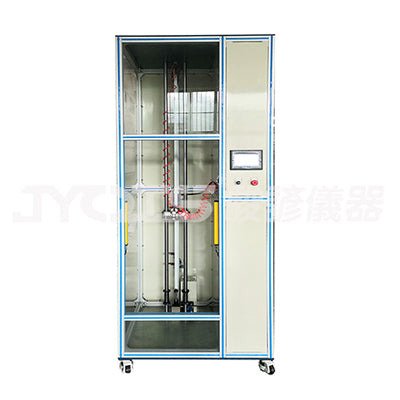

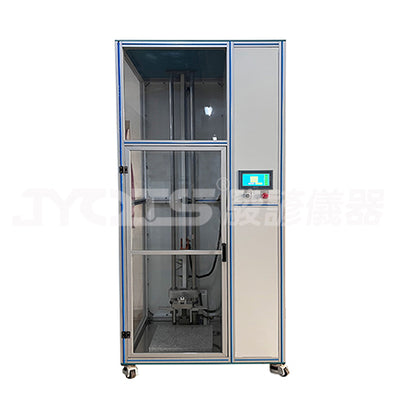

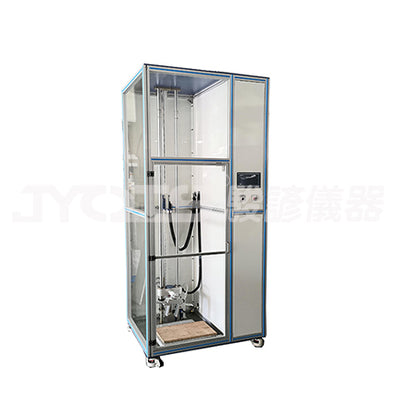

Safety and Design: The machine adopts a fully enclosed structure with an aluminum frame and a safety door. Testing is only possible when the door is closed; opening the door halts operations to enhance safety. The transparent imported PVC panels allow real-time observation of the drop test process.
High-Quality Pneumatic Components: All pneumatic components are sourced from Japan's SMC, ensuring durability and long-term reliability.
Versatile Drop Surfaces: Multiple drop panels are available, including steel, wood, and marble, to meet various international testing standards.
Ease of Operation: Simple to operate with a strong emphasis on safety.
Automatic Counting: Features an automatic drop counting function to track the number of tests.
Hydraulic Buffer Protection: A hydraulic buffer system at the base of the machine ensures the drop assembly decelerates smoothly after releasing the product, protecting the drop assembly and fixtures for long-term use.

Directional Drop Testing Machine
