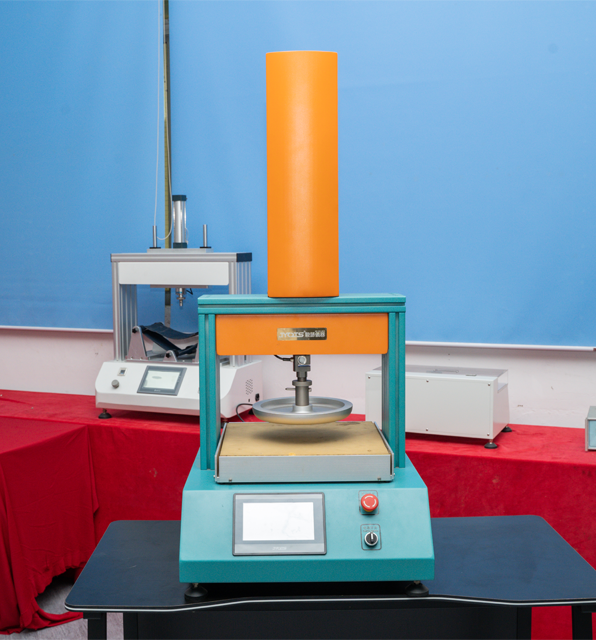

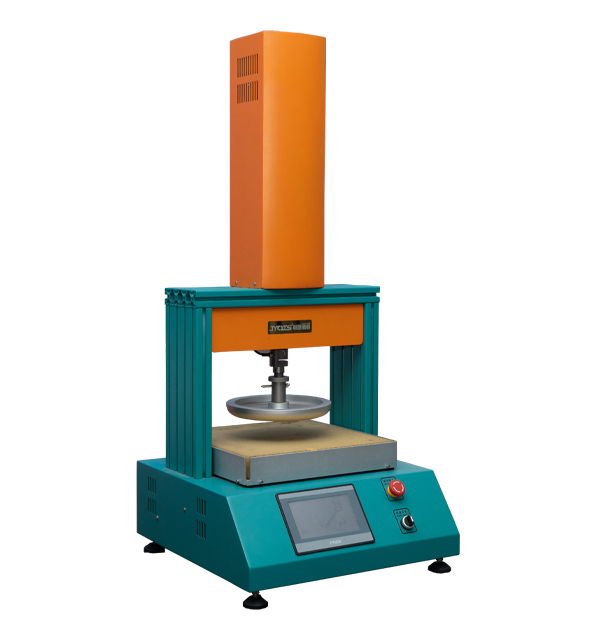

Sponge Compression Fatigue Testing Machine

Product Overview

The Sponge Compression Fatigue Testing Machine is an advanced testing system designed to evaluate the mechanical durability and long-term performance of sponge materials under cyclic compressive loads. It simulates real-world usage conditions, such as repeated compression in mattresses, automotive seating, furniture, or industrial applications. The machine provides precise measurements of deformation, load-bearing capacity, and fatigue resistance, enabling manufacturers to optimize material formulations, validate product quality, and predict service life.

Key Features

1. Versatile Testing Capabilities:

   • Supports both constant force and constant displacement modes.
   • Compatible with standard test methods (e.g., ASTM D3574, ISO 3385).

2. High Precision & Reliability:

   • Equipped with calibrated load cells (accuracy ±0.5%) and linear encoders for accurate force/displacement measurement.
   • Robust servo motor and hydraulic/pneumatic actuator for stable load application.

3. User-Friendly Interface:

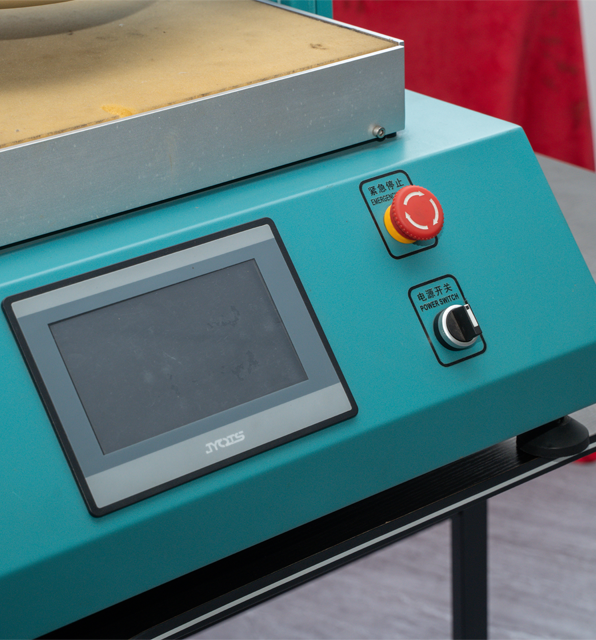

   • Touchscreen HMI with programmable test profiles and real-time data visualization.
   • Data export options (CSV, Excel) and report generation.

4. Customizable Setup:

   • Adjustable compression plates (size range: 50–200 mm diameter) to suit various sponge samples.
   • Configurable test parameters (speed, force, stroke, cycles).

Technical Specifications
