Applicable Industries

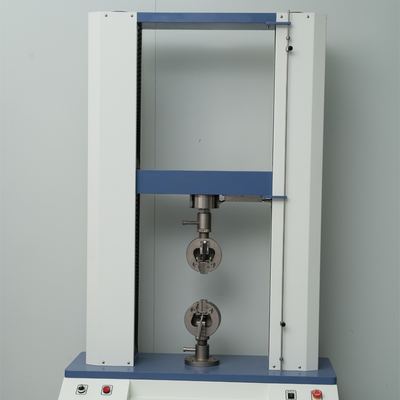

Use Manual Tensile Strength Tester Price can test various materials (both finished and semi-finished products ) of tensile
strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
Parts Of Universal Testing Machine,Tensile Compression Testing Machine,Universal Testing Equipment is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.

Model	JY-600
Max capacity	2,5,10,20,50,100,200,250,500kgf can be setting
Induction method	Precision load cell (sensor)
Max. Load Capacity	500kgf
Force Resolution/Accuracy	± 0.5%
Accuracy class	0.5
Resolution	1/1,000,000
Test stroke :	Max.700 mm( included the fixture)
Stroke Resolution:	0.01mm
Speed range:	0.001-20inches/min
Machine Dimension (WDH)	5805801250mm (WDH)
Weight:	About 65kg
Power :	1 phase 220V 50/60Hz
Packing	Standard Export plywood case
Force system	servo drives + Servo motor + precision ball screw drive

Tensile Strength Test Machine Features

1. Use the Windows working platform, set all parameters with dialog forms, and operate easily.
2. Using a single-screen operation, you do not need to change the screen.
3. Have simplified Chinese, traditional Chinese, and English three languages, and switch conveniently.
4. Plan test sheet mode freely.
5. Test data can directly appear on the screen.
6. Compare multiple curve data through translation or contrast ways.
7. With many units of measurement, the metric system and the British system can switch.
8. The tensile strength test machine has an automatic calibration function.
9. Have a user-defined test method function.
10. The universal material testing machine has a test data arithmetic analysis function.
11. Have the function of automatic magnification to achieve the size of the most appropriate graphic.

Tensile Strength Testing Equipment Applications

* Rubber
* Plastic
* Leather
* Metal
* Nylon
* Line
* Fabric
* Paper
* Aviation
* Packaging
* Construction
* Action
* Electrician
* Vehicle
* Leather
* Shoes

1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(60.00%),North America(20.00%),Eastern Europe(5.00%),Northern Europe(4.00%),Western Europe(3.00%),South America(3.00%),Southern Europe(2.00%),Mid East(2.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Test Chamber,Test Machine

4. why should you buy from us not from other suppliers?
1.With owner well known brand of OTS ( Overall Testing Systems) 2.With long history since 1978 3. Three factory from Taiwan ,Dongguan City and Suzhou City 4.Fast Delivery &Service ,high quality ,OEM & Customized requirements are acceptable

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
