Product Details

Structure and Material:

Chamber Construction: The body of the rain test chamber is made of high-quality SUS304 stainless steel, ensuring excellent corrosion resistance. Both the chamber and the parts in contact with water are made from stainless steel for durability and reliability in wet conditions.
Door: The chamber features a large, transparent visual door, making it easy to monitor the testing process without interrupting the test.

Water Spray System:

Spray Nozzle Aperture: Typically ranges from 0.4mm to 1.0mm.
Number of Nozzles: Usually between 16 to 20 nozzles for uniform water distribution.
Spray Hole Spacing: Generally 50mm between spray holes for consistent coverage.
Spray Ring Radius: The radius of the spray ring is usually R375mm.
Spray Pipe Diameter: Typically 20mm for smooth water flow.
Rain Water Pressure: Typically set at 3Kpa.
Water Flow Supply: 10 kg of water for the test process.
Flow Rate: 24.5 liters/min, ensuring a steady and continuous water flow during the test.

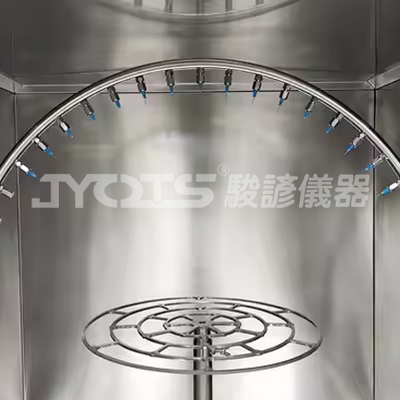

Oscillating Pipe System:

Swing Angle: The oscillating pipes can be set at various angles such as 60°, 90°, 130°, allowing for versatile simulation of rain exposure.
Swing Speed Adjustment: The swinging speed is infinitely adjustable, providing flexibility to meet different testing needs and conditions.

Test Platform:

Platform Speed: The test platform's speed can be adjusted from 1-17r/min.
Test Platform Area: The area of the test platform can be customized based on the specific needs of the user.

Technical Parameters

Control System:

Control Method: The chamber is controlled by a PLC module with fully automatic hand-written settings, providing a user-friendly interface that is intuitive and aesthetically pleasing. The system is designed for easy and efficient operation.
Display Features: The system can display real-time data, including temperature and humidity curves, to monitor and analyze the testing conditions.
Memory Function: The chamber has a historical memory function that allows users to access up to 7 days' worth of past test records for reference and analysis.

Additional Parameters:

Power Supply: The standard operating voltage is typically AC220V±10%, 50Hz.
Safety Protection Features: The chamber is equipped with various safety mechanisms, including:
- Grounding protection
- Overload protection for the power supply
- Low water protection
- Short-circuit protection
- Alarm system with audible and visual alerts for safety and malfunction warnings.
Environmental Requirements:
- Operating temperature range: 5°C to 30°C.
- Relative humidity: ≤85% RH, ensuring optimal performance and safety during operation.
