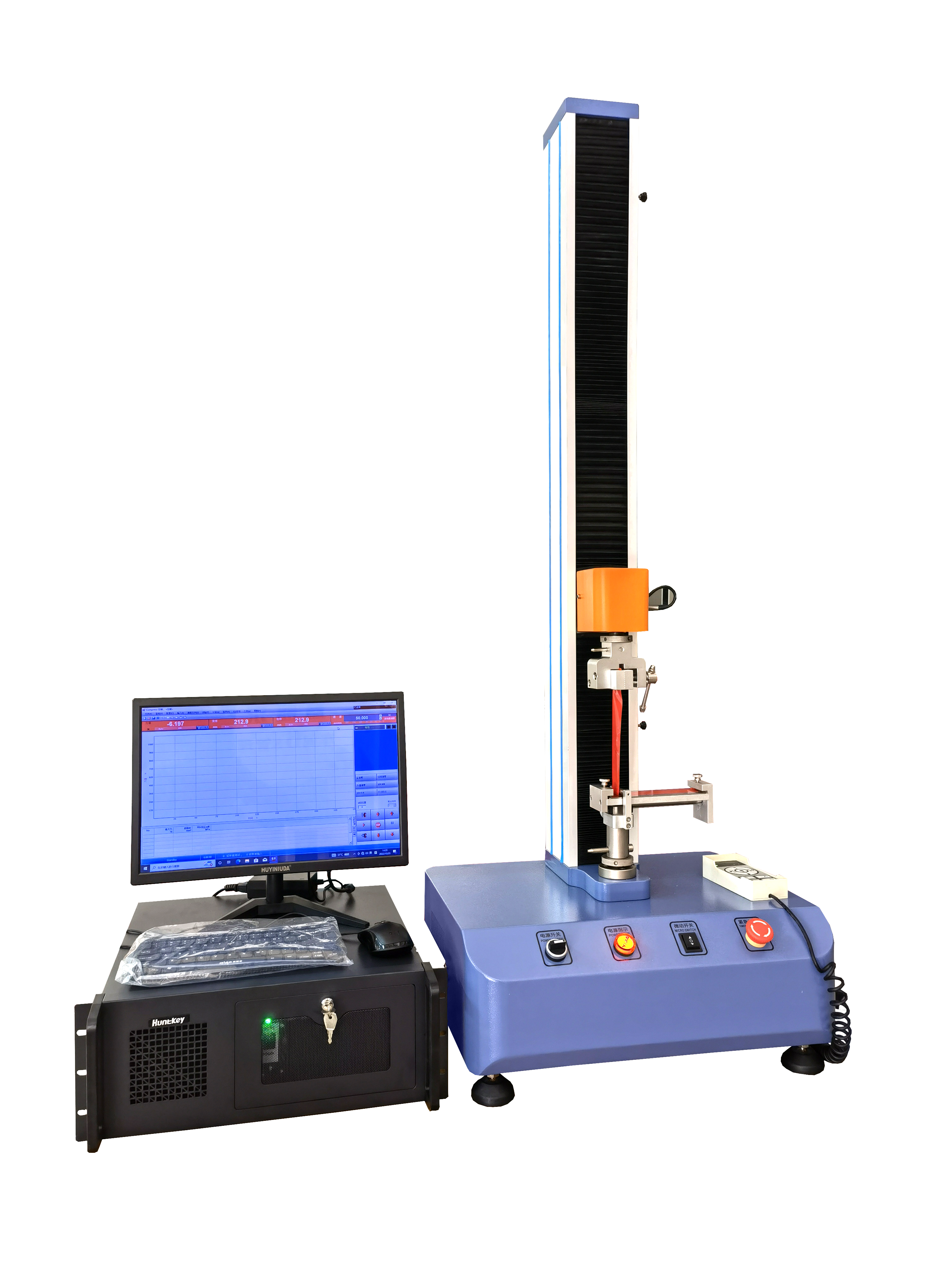

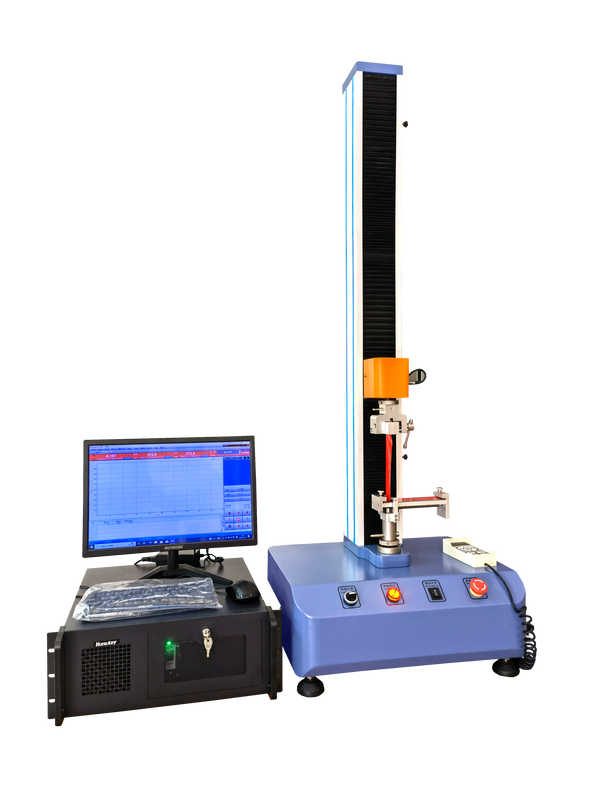

film Strength Elongation Tester
PRODUCT DETAILS
This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.
Features
1) Computer + Software control and display more than 12 kinds test curves, such as:
Force-displacement, force-deformation, stress-displacement,
Stress-deformation,force-time,displacement-time
2) It can install extensometer to test deformation of rubber or metal material
3) It can do high temperature test by high temperature oven and furnace

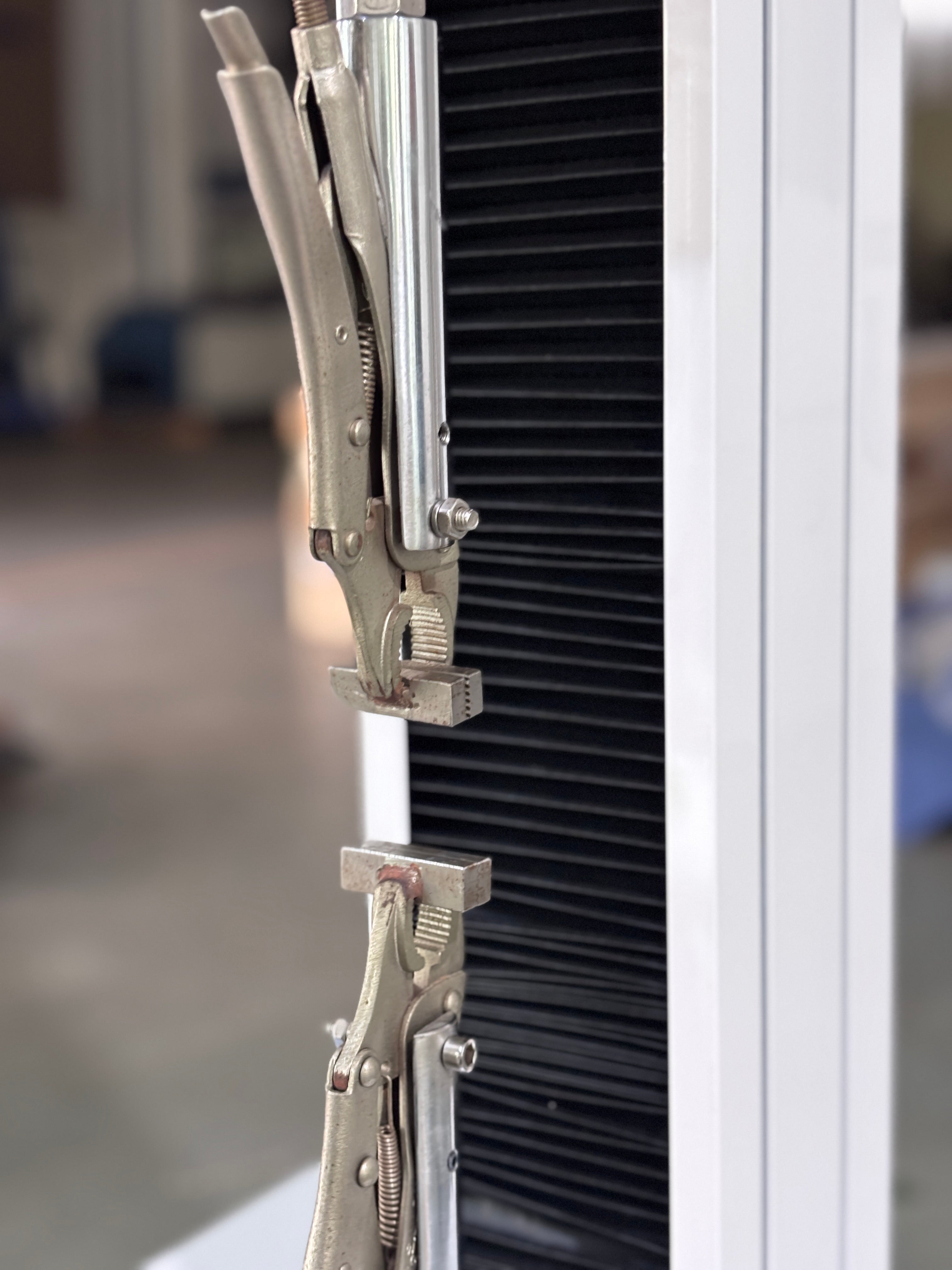

4) It can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) It can be customized height, width, and follow any test standard or customer request
6) It can also have ETM Digital Display Type.
|
Model
|
YY-1885
|
JY-1886
|
|
Range of speed
|
0.1~500mm/min
|
50~500 mm/min
|
|
Motor
|
Panasonic sevor motor
|
AC motor
|
|
Resolution
|
1/250,000
|
1/150,000
|
|
Capacity choice
|
1, 2, 5,10, 20, 50,100, 200, 500 kg optional
|
|
|
Stroke
|
850 mm (can be customized)
|
|
|
Accuracy
|
± 0.5 %
|
|
|
Force relative error
|
± 0.5 %
|
|
|
Displacement relative error
|
± 0.5 %
|
|
|
Test speed relative error
|
± 0.5 %
|
|
|
Effective testing space
|
120 mm
|
|
|
Accessories
|
Computer, printer, system operation manual
|
|
|
Optional accessories
|
Stretcher, air clamp
|
|
|
Operation method
|
Windows operation
|
|
|
Weight
|
70 kg
|
|
|
Dimension
|
(W * D * H) 58 * 58 * 145 cm
|
|
|
Power
|
1 PH, AC 220 V, 50/60 Hz
|
|
1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven, vacuum oven, Universal Tensile testing machine, Environmental Climatic chamber, Muffle furnace etc. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.
Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
