Product Details

Combustion Section

Flame Height: The flame height for horizontal combustion is typically around 20±1mm, while for vertical combustion, it is usually around 40±2mm. Some devices allow flame height adjustment between 20mm and 175mm according to standard requirements.
Torch Standards: Horizontal combustion generally follows the IEC60695-11-4 standard, while vertical combustion adheres to the IEC60695-11-3 standard.
Torch Size: The inner diameter of the nozzle is approximately 9.5±0.3mm to 9.5±0.5mm, with an effective length of the nozzle around 100±10mm.
Combustion Angles: The angle can be adjusted between 0°, 20°, 45°, and 90°.
Gas Flow: During horizontal combustion, the gas flow is approximately 105±10ml/min, and during vertical combustion, it is around 965±30ml/min.
Flame Application Time: Can be set from 0 to 99.99 seconds or 0 to 99 minutes and 99 seconds.

Measurement and Control Section

Temperature Detection: The maximum temperature is approximately 1050°C, with an accuracy of ±0.1%.
Timer: Uses imported timers with an accuracy of ±0.1 seconds to ±0.5 seconds. The time range is 0 to 99.99 seconds or 0 to 99 minutes and 99 seconds.
Flow Accuracy: Approximately 1.5%.
Control Methods: Common control methods include microcomputer control with touch screen, PLC control with touch screen, and manual control.

Sample and Test Environment Section

Sample Dimensions: Length 125mm±5mm, Width 13.0mm±0.3mm, Thickness 3.0mm±0.2mm.
Chamber Volume: Typically greater than 0.5 cubic meters, with a recommendation of at least 0.7 cubic meters. Some devices require the combustion chamber to have a sealed design and a volume greater than 1 cubic meter.
Ambient Temperature: During the entire test, the sample, equipment, and surrounding air should reach thermal equilibrium at a temperature of 23.0±2°C.

Other Parameters

Power Supply: Typically AC220V, 50Hz, with power ranging from 1.5KVA to 500W.
Equipment Size and Weight: The dimensions and weight vary significantly depending on the model. For example, the vertical combustion chamber dimensions are L305mm×W355mm×H610mm, the horizontal combustion chamber is L610mm×W355mm×H305mm, and the overall size of the testing machine is L920mm×W425mm×H850mm.

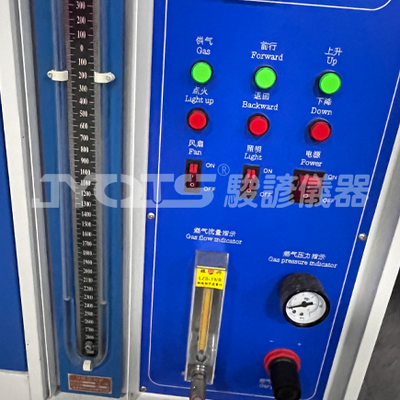

Horizontal and Vertical Combustion Tester
