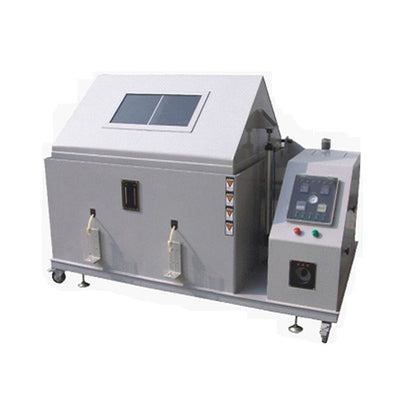

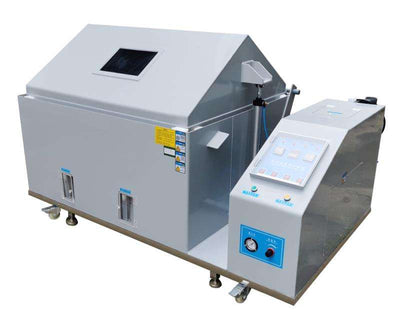

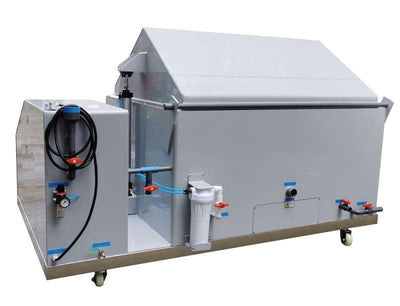

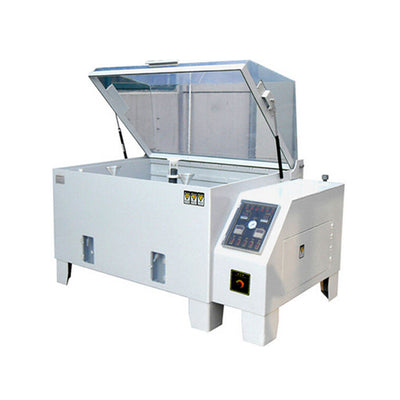

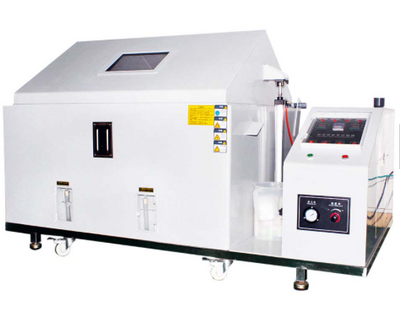

Lab High Configuration Salt Spray Corrosion Test Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Technial Parameters

Model	jy-A809
Inner Box Size (LWH)	604540 cm (Can be customized)
Outside Box Size(LWH)	10760118 cm (Can be customized)
Equipment Material	Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board
Temperature Range	RT+5°C~55°C
Temperature Fluctuations	≤±0.5°C
Temperature Uniformity	≤±2°C
Temperature Precision	±1°C
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35±1°C Corrosion-resistant Testing Method(CASS)50±1°C
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47±1°C Corrosion-resistant Testing Method(CASS)63±1°C
Brine Temperature	35°C±1°C
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	108L (Can be customized)
Brine Tank Capacity	15L
Power	1#, AC220V,10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment each 1 set
Standards	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268

Control system

Temperature control:Control the chamber temperature, according to standard, salt test is 35°C, and corrosion test is 50°C.
Saturated air barrel temperature controller:Control the saturated air barrel temperature, salt test is 47°C, corrosion test is 63°C.
Timer:Adjustable, can set the time in 0.1s~9999hr free, shut down automatically when the time is over.
Running timer:Direct read 0-9999.9hr, record the whole work hours.
Heat sink temperature controller:Control the temperature of heat sink, Controller with temperature control of the testing machine laboratory environmental temperature changes around the difference is too large, also need to meet the adjustments, the setting method in the control box.
Salt test :Chamber temperature set 35°C, heat sink temperature set is 47°C(40°C-50°C).
