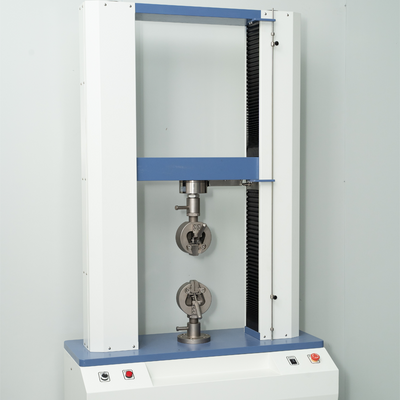

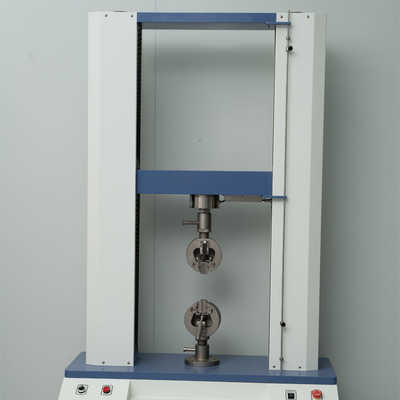

Tensile strength testing machine is an intelligent testing machine that combined with the electronic technology and mechanical transmission.it has accurate load speed, range of force measurement, high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.

Tensile testing equipment mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear,peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt,leather belt composite materials, plastic profiles, waterproof membrane, steel, copper,profiles, spring steel, bearing steel,stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

Applicable industry:

Tensile testing equipment widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturingmachinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs;instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory;inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.

Model	JYX-8061 20kN tensile testing equipment
Maximum load	2kN,5kN,10kN,20kN (optional)
Accurate	1 grade
Measuring accuracy	the value ±1% / the value±0.5%
Tester resolution	Max load 1/100000, constant the resolution
Effective testing width	400mm (or can be widened as customers requirement )
Effective tensile space	650,800,1000mm (or can be increased the height according to customers requirement)
Testing speed	From 0.5 to 1000mm/min
Unit	kgf, gf, lbf, N, kN, Mpa, pa(optional)
Data sampling rate	50 times/second
Accruacy of displacement measurement	Tolerance: ±0.5%
Accuracy of measured deformation	Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)
Safety	Electronic-limit protection
Testing plat form moving device	Fast /slow( two speeds to control) ,can jog
Return Back	Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection
Fixture	One set of tensile clamp
Volume	80010002500mm (LWH)
Motor	servo motor and drive
Power	220V,50HZ or as the requirement
Wattage	0.66kW (different demand of force with different motor)
Weight	300 Kg(approx)
*Please note that final price is subject to required parameters

FAQ

1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
