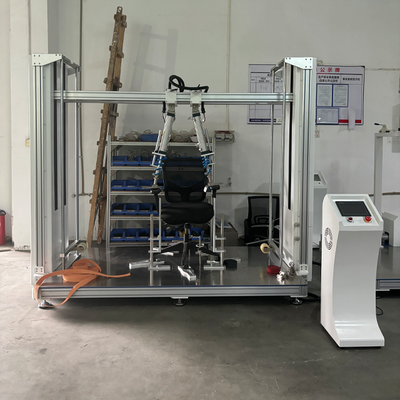

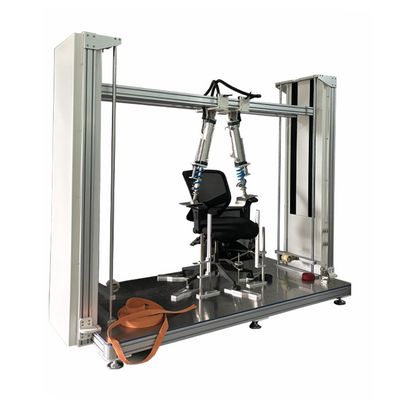

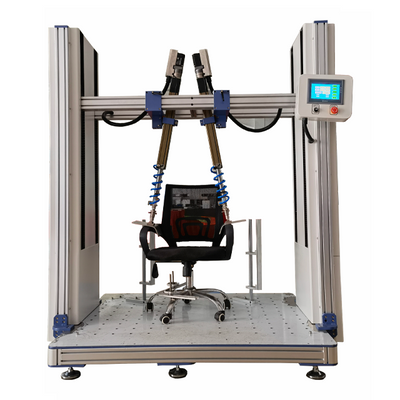

Office Chair Armrest Strength Testing Machine

Product Overview

The Office Chair Armrest Strength Testing Machine is a specialized device designed to evaluate the durability, load-bearing capacity, and safety performance of office chair armrests under simulated real-world conditions. It replicates repetitive stress, static loads, and dynamic impacts to ensure compliance with international ergonomic and safety standards (e.g., BIFMA, ISO, EN). This machine helps manufacturers assess armrest longevity, optimize material selection, and prevent failures in critical support areas.

Key Features

Comprehensive Testing Modes:
- Static Load Testing: Applies a fixed vertical/horizontal force to measure maximum load-bearing capacity.
- Dynamic Fatigue Testing: Simulates repetitive pressing (e.g., 10–30 cycles/min) to assess long-term durability.
- Pressure Distribution Analysis: Measures force distribution across the armrest surface using embedded sensors.
High Precision & Customization:
- Adjustable load range (50–500 N) and speed (1–30 cycles/min) to mimic diverse usage scenarios.
- Configurable test angles (0–90°) to evaluate armrest stability during different user postures.
Advanced Safety & Accuracy:
- Overload protection and emergency stop function to prevent mechanical failure.
- Load cells with ±0.5% accuracy and linear encoders for precise displacement measurement.
User-Friendly Operation:
- Touchscreen HMI with preloaded test protocols (BIFMA X5.1, EN 1335) and customizable parameters.
- Real-time data display, automatic failure detection, and exportable reports (CSV/Excel).

Technical Specifications

Parameter	Details
Test Modes	Static load, dynamic fatigue, pressure mapping
Load Capacity	50–500 N (adjustable)
Test Speed	1–30 cycles/min (programmable)
Armrest Size Compatibility	15–50 cm width; accommodates cylindrical, L-shaped, or contoured designs
Data Accuracy	±0.5% FS (Load), ±1 mm (displacement)
Control System	PLC + HMI with data logging, USB/RS232 output, and compliance report generation
Power Requirement	220V ±10%, 50/60 Hz, 2–5 kW

Components & Design

Frame:
- Heavy-duty steel structure with anti-vibration mounts for stable, high-cycle testing.

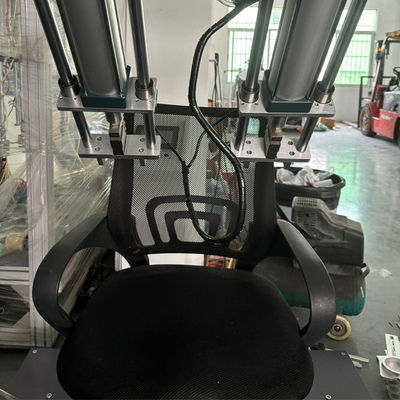

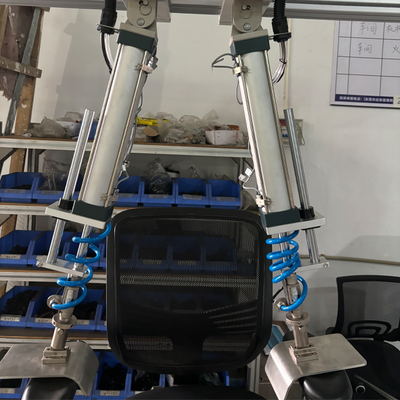

Loading System:
- Dual-acting pneumatic/hydraulic actuators for precise force application.
Fixtures:
- Adjustable clamps and pressure-sensitive pads to secure armrests of varying shapes.
Safety Features:
- Emergency stop button, door interlock, and overload protection system.

Applications

Quality Control: Verify compliance with ergonomic standards (e.g., BIFMA X5.1, ANSI/BIFMA X5.5).
R&D: Develop lightweight yet durable materials for ergonomic chair designs.
Failure Analysis: Identify weak points in armrest joints or welds under stress.

Compliance Standards

Aligns with BIFMA X5.1 (Office Chairs), EN 1335 (European Chair Standards), ISO 2768 (Plastic Components), and GB/T 3325 (Chinese National Standard).

Optional Accessories

Pressure Mapping System: Visualizes force distribution across the armrest surface.
Environmental Chamber: Tests armrest performance under combined temperature/humidity conditions.
Cyclic Fatigue Fixtures: For high-frequency loading simulations.
Data Acquisition Software: Advanced analytics for stress-strain curves and fatigue life prediction.

Why Choose This Machine?

Efficiency: Automated testing reduces manual effort by 70% compared to manual methods.
Accuracy: Certified calibration ensures traceable results for certifications and audits.
Durability: Built for continuous operation in fast-paced manufacturing environments.
Support: Includes installation, operator training, and 24/7 technical assistance.

Office chair armrest strength testing machine
