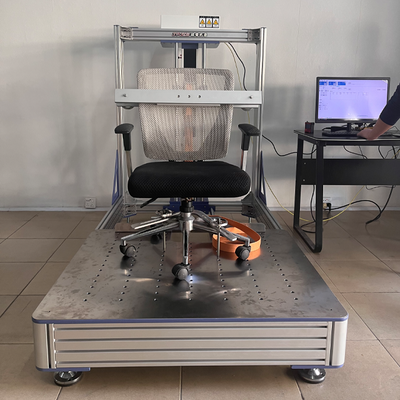

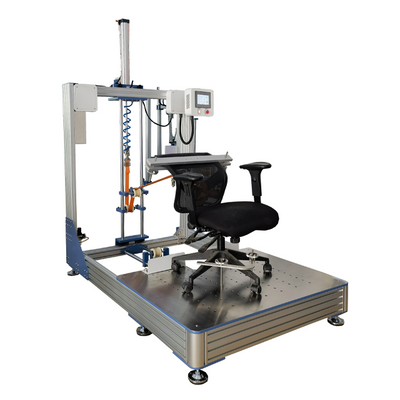

Office Chair Backrest Testing Machine

BIFMA X5.1, EN 1335 & ANSI/BIFMA Certified for Ergonomic Compliance
Our Backrest Testing Machine rigorously evaluates the structural integrity, fatigue resistance, and load-bearing capacity of chair backs, ensuring office chairs meet global safety standards and withstand years of daily use.

Core Testing Capabilities

Multi-Axis Dynamic Testing

Static Load Test: Apply up to 2000N vertical/horizontal force to simulate user leaning or tilting.
Cyclic Fatigue Test: 100,000+ cycles at 1–10 Hz (adjustable speed) to replicate repeated stress.
Torsional Test: ±30° rotational force to assess backrest twist resistance.
Impact Resistance: Optional drop weight module (e.g., 15kg from 100mm height).

Smart Control & Precision

Force Accuracy: ±0.5% FS with dual load cells (front/rear monitoring).
Displacement Tracking: 0.01mm resolution linear encoders.
Angular Measurement: ±0.1° precision for reclining mechanisms.

Automation & Compliance

Pre-Programmed Standards: BIFMA X5.1, EN 1335, GB/T 22894, ANSI/BIFMA.
Batch Testing: Robotic arm auto-loads samples (test 15 chairs/hour).
Real-Time Alerts: Detect cracks, joint failures, or permanent deformation.

Technical Specifications

Parameter	Specification
Max Load Capacity	2000 N (450 lbf)
Test Speed	5–500 mm/min (static), 1–10 Hz (cyclic)
Test Space	Adjustable height: 500–1200 mm
Data Sampling Rate	1000 Hz
Power Supply	220V±10%, 50/60Hz
Compliance	CE, ISO 17025, BIFMA X5.1-2023

Applications

✅ Office Chairs: Test mesh, foam, or hybrid backrests for corporate/ergonomic chairs.
✅ Gaming Chairs: Validate high-stress reclining and lumbar support durability.
✅ Healthcare Seating: Ensure compliance with medical equipment fatigue standards.
✅ Material R&D: Compare plastic, steel, or composite backrest frames.

Why Choose Our Machine?

✅ Multi-Standard Testing: Single machine covers BIFMA, EN, ANSI, and GB/T.
✅ Fail-Safe Design: Overload protection, emergency stop, and self-diagnostic software.
✅ Comprehensive Reports: Export force-time curves, cycle counts, and deformation data.
✅ Global Support: 3-year warranty, on-site calibration, and 24/7 remote assistance.

Customer Success Stories

“This machine helped us reduce warranty claims by 40% by catching weak weld points in prototypes.”
– ErgoDesign LLC, USA

“Testing 200+ chairs per month, the automated cycles cut our lab costs by 50%.”
– EuroOffice Furniture Group, Spain

FAQ

Q: Can it test chairs with adjustable lumbar support?
A: Yes! Custom fixtures simulate real-user adjustments (manual or motorized).

Q: How to prepare samples?
A: Mount chairs as used (with base) or isolate backrests for component-level testing.

Q: What’s the maintenance schedule?
A: Lubricate rails every 500 hours; annual calibration recommended.

Q: Can it test reclining office chairs?
A: Yes – add the optional multi-axis motion module for synchronized tilt/force tests.
