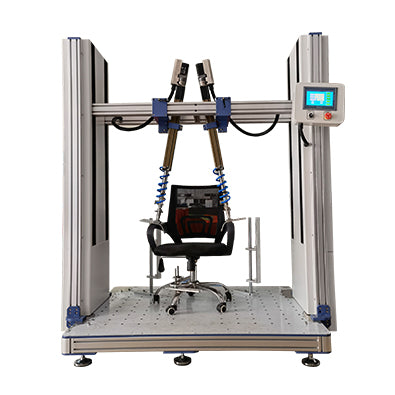

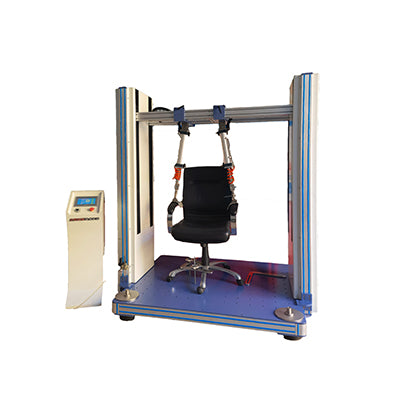

Office Chair Comprehensive Testing Machine (Armrest and Seat Surface)

Product Overview

Analysis of the Product Uses of the Office Chair Comprehensive Testing Machine (Armrest and Seat Surface)

The office chair comprehensive testing machine is a core device in the field of furniture quality inspection. It is mainly used to evaluate the durability, strength and safety performance of key components of office chairs, such as armrests and seat surfaces. The following comprehensively analyzes its core uses from dimensions including testing scenarios, technical parameters, industry applications, etc., in combination with international standards and actual measurement cases.

I. Core Testing Functions and Scenarios

Armrest Strength and Durability Testing:

Simulating Daily Pressure Scenarios: Vertical or lateral forces are applied to the armrests through air cylinders or servo motors to simulate actions such as long-term leaning and side pressure of the human arm. This is used to detect the anti-deformation ability of the welding points and connectors of the armrests.

Testing Standards: According to standards such as EN 1728 and BIFMA X5.1, set the number of cycles (e.g., 100,000 times) and the load range (e.g., 0 - 200 kg), and record failure situations such as cracks and looseness of the armrests.

Seat Surface Fatigue and Static Load Testing:

Seat Surface Load-Bearing Simulation: A constant weight (e.g., 100 kg) is loaded on the seat surface. Through reciprocating impact or continuous pressure testing, the collapse of the seat cushion material, deformation of the frame, and the durability of the gas spring are evaluated.

Destructive Testing: Some devices support ultimate load testing. By gradually increasing the pressure until the seat surface structure breaks, the maximum load threshold is determined, providing data for design optimization.

Dynamic Composite Testing:

Simulate the armrest pressure and seat surface impact simultaneously to detect the overall stability of the office chair under complex force application scenarios. For example, when a heavy object is placed on the seat surface, a lateral force is applied to the armrests to verify the anti-fatigue performance of the connectors.

II. Technical Advantages and Industry Applications

Technical Parameters and Equipment Characteristics:

Precise Control: Adopt a PLC controller + touch screen operation interface, supporting the free adjustment of parameters such as force value (0 - 300 kg), stroke (0 - 300 mm), and speed (10 - 30 times per minute).

Multifunctional Adaptability: The modular design enables quick replacement of fixtures, adapting to office chairs of different sizes and structures, such as swivel chairs, conference chairs, and e-sports chairs.

Data Recording: High-precision sensors are built-in to record displacement and pressure curves in real-time, and generate test reports, supporting export in formats such as ISO and ASTM.

Specifications:

I.
Device Model: JY - 217A

II.
Device Dimensions:

Machine dimensions (approximate): 1500 mm × 1500mm × 2000mm W (left - right) × D (front - back) × H (up - down).

III.
Device Introduction:
This testing instrument is mainly used to test the fatigue performance of the armrests and the fatigue of the front corner of the seat surface of chairs.

IV.
Main Technical Parameters of the Device:

Control Method: Computer - controlled, with real - time display of curve graphs.
Electric Cylinder: Stroke is 400mm, can move left and right, and the variable angle is adjustable from 0 to 10 degrees.
Crossbeam: Can be adjusted up and down to facilitate the control of the test arm (to meet the standard requirement of a length of 600 ± 10mm).
Force Sensor: 200kgf.
Force Sensor Resolution: 1/100000.
Dynamic Force Value Accuracy: ≤ ± 1% (less than the BIFMAEN tolerance. When the test force value is between 400 - 1125N, high accuracy is required. The force value deviation of the pneumatic method is relatively large compared with the electric cylinder method. The electric method is recommended).
Transmission Method: Servo electric cylinder transmission.
Weight (approximate): 350Kg.
Power Supply: ∮ AC 220V 50Hz 5A.

Specification Parameters

I	Equipment Model: JY-217A
II	Device Model: JY - 217A
	Machine dimensions (approximate): 1500 mm × 1500 mm × 2000 mm, W (left and right) × D (front and back) × H (up and down);
III.	Device Introduction：
	This testing instrument is mainly used to test the fatigue performance of the armrests of the chair and the fatigue of the front corner of the chair seat surface.
IV	Main Technical Parameters of the Equipment
	Control mode: Controlled by computer, and the curve graph is displayed in real time. Electric cylinder: The stroke is 400mm, which can move left and right, and the angle can be adjusted (ranging from 0 to 10 degrees). Crossbeam: It can be adjusted up and down, making it convenient to control the testing arm (to achieve the standard-required length of 600±10mm). Force sensor: 200kgf Resolution of the force sensor: 1/100,000; Dynamic force value accuracy: ≤±1% (less than the BIFMAEN tolerance. When the testing force value is between 400-1125N, a high precision is required. Compared with the electric cylinder method, the force value deviation of the pneumatic method is relatively large. The electric method is recommended.) Transmission mode: Driven by a servo electric cylinder. Weight (approximate): 350Kg Power supply: ∮ AC 220V 50Hz 5A

V. Standards Compliance and Brief Introduction of Functions

ANSI/BIFMA X5.1-2017 20 Arm Durability Test-Cyclic (1) Loading device: An armrest loading device that meets the material size requirements specified in the standard.
(2) Apply a downward force of 400N (90 lbf) at an angle of 10° ± 1°, and conduct the test for 60,000 cycles at a speed of 10 - 30 times per minute.
ANSI/BIFMA X5.1-2017 10.4 Front Corner Load-Ease Test-Cyclic-Off-centre (Front Corner Load Ease Test - Cyclic)

(1) Loading device: A front corner loading device that meets the material size requirements specified in the standard.
(2) Apply a vertical force of 890N (200 lbf) at a rate of 10 - 30 times per minute. Conduct the test 20,000 times for each of the two front corners respectively.
