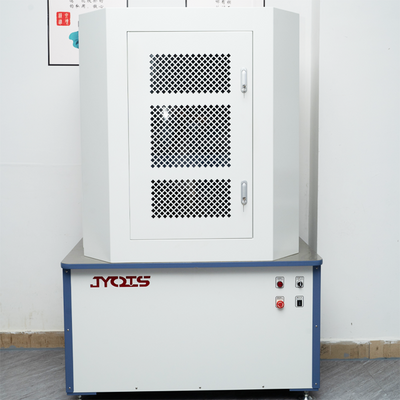

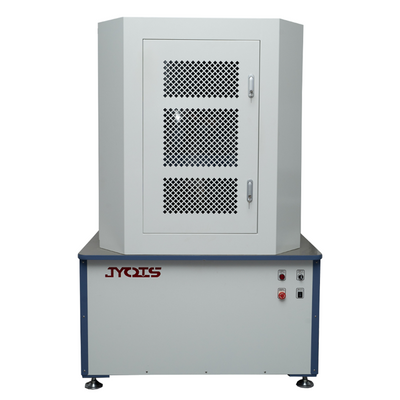

Office Chair Five-Pedestal Pressure Resistance Tester

Product Overview

The Office Chair Five-Pedestal Pressure Resistance Tester is a specialized device designed to evaluate the load-bearing capacity and structural integrity of office chair pedestal bases (five-point support systems) under simulated user weight and dynamic stress. It replicates real-world seating conditions, including static pressure, uneven weight distribution, and cyclic loading, to ensure compliance with international safety and durability standards (e.g., BIFMA, EN, ISO). This machine helps manufacturers assess pedestal deformation, weld strength, and material fatigue to optimize chair design for long-term reliability.

Key Features

Five-Pedestal Simulation:
- Simulates pressure on all five pedestal points simultaneously, mimicking uneven weight distribution (e.g., lateral leaning or rotational stress).
Testing Modes:
- Static Load Testing: Applies a fixed vertical force (up to 2000 N) to measure deformation and maximum load capacity.
- Dynamic Fatigue Testing: Cycles loads (10–100 cycles/min) to assess material fatigue and weld durability over time.
- Peak Force Measurement: Records maximum force before structural failure.
Precision & Customization:
- Adjustable load range (200–2000 N) and speed (1–50 mm/min) to replicate diverse usage scenarios.
- Configurable pedestal spacing (15–50 cm) to accommodate various chair base sizes.
Advanced Safety & Accuracy:
- Overload protection, emergency stop function, and real-time overload alarms.
- High-precision load cells (±0.5% FS) and linear encoders for displacement measurement.
User-Friendly Operation:
- Touchscreen HMI with preloaded test protocols (BIFMA X5.1, EN 1335) and customizable parameters.
- Real-time data display, automatic failure detection, and exportable reports (CSV/Excel/PDF).

Technical Specifications

Parameter	Details
Load Capacity	200–2000 N (adjustable)
Test Speed	1–50 mm/min (programmable)
Pedestal Spacing	15–50 cm (adjustable for different chair base sizes)
Pressure Distribution	Simulates uneven loads (e.g., 30–70% force on specific pedestals)
Data Accuracy	±0.5% FS (Load), ±1 mm (displacement)
Control System	PLC + HMI with data logging, USB/RS232 output, and compliance report generation
Power Requirement	220V ±10%, 50/60 Hz, 5–10 kW

Components & Design

Frame:
- Heavy-duty steel structure with reinforced bearings for stable, high-cycle testing.

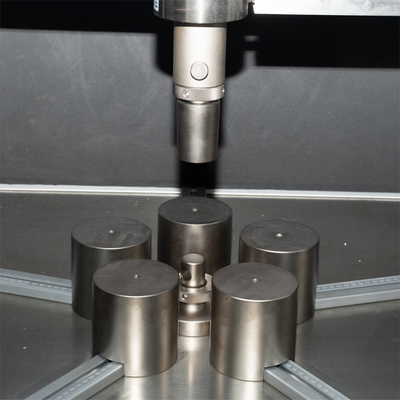

Loading System:
- Hydraulic/pneumatic actuators with independent pedal force control for precise five-point loading.

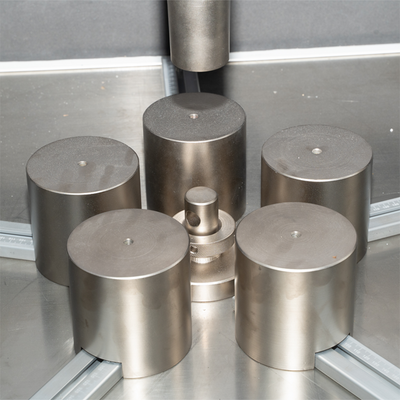

Fixtures:
- Adjustable clamps and anti-slip pads to secure chair pedestals of varying shapes (e.g., cylindrical, rectangular).
Safety Features:

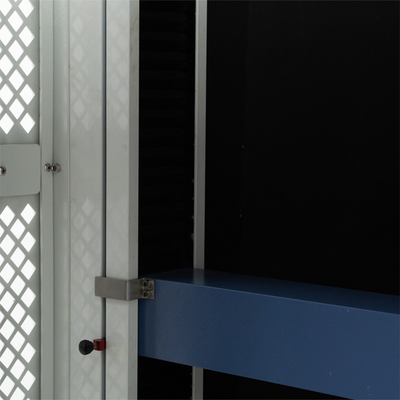

- Emergency stop button, door interlock, and overload protection system.

Applications

Quality Control: Verify compliance with ergonomic standards (e.g., BIFMA X5.1, ANSI/BIFMA X5.5).
R&D: Develop lightweight yet durable pedestal materials for ergonomic chair designs.
Failure Analysis: Identify weak points in welds, joints, or plastic components under stress.

Compliance Standards

Aligns with BIFMA X5.1 (Office Chairs), EN 1335 (European Chair Standards), ISO 2768 (Plastic Components), and GB/T 3325 (Chinese National Standard).

Optional Accessories

Force Gauges: For real-time force feedback during testing.
Environmental Chamber: Tests pedestal performance under combined temperature/humidity conditions.
Fatigue Fixtures: For high-frequency loading simulations.
Data Acquisition Software: Advanced analytics for stress-strain curves and fatigue life prediction.

Why Choose This Machine?

Precision: Certified calibration ensures traceable results for certifications and audits.
Efficiency: Automated five-point loading reduces testing time by 50% compared to manual methods.
Durability: Built for continuous operation in fast-paced manufacturing environments.
Support: Includes installation, operator training, and 24/7 technical assistance.

Office chair five claw compression testing machine
