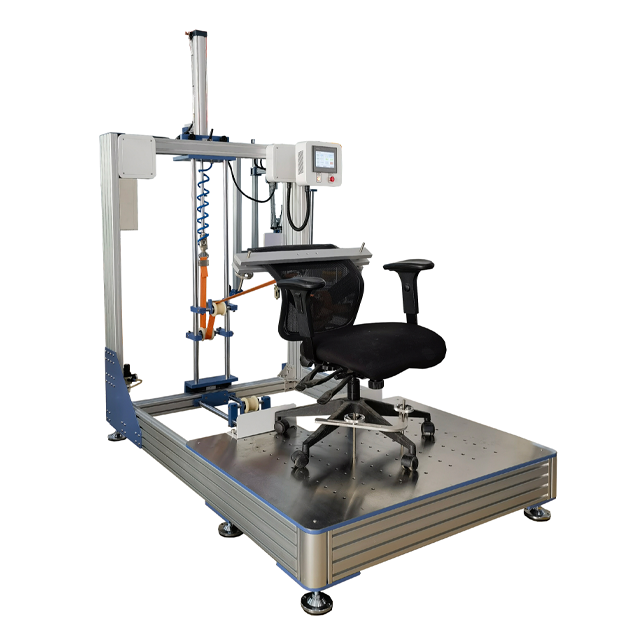

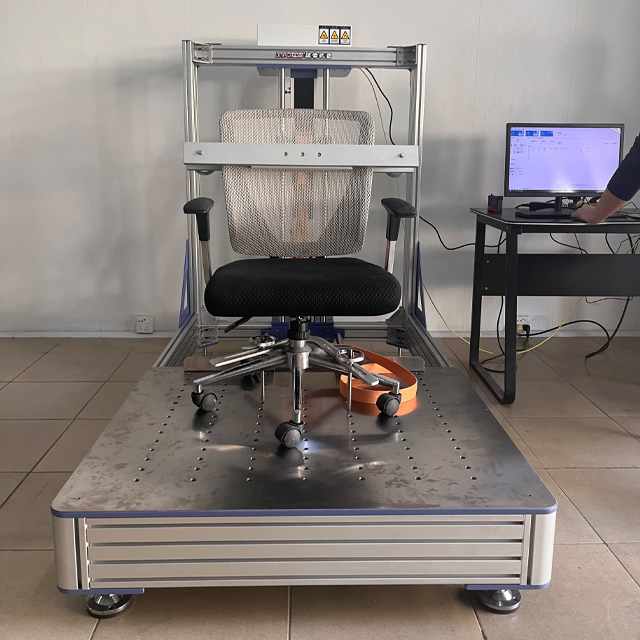

Office Chair Backrest Tensile Strength Testing Machine

Product Overview

The Office Chair Backrest Tensile Strength Testing Machine is a specialized device designed to evaluate the durability, load-bearing capacity, and safety performance of office chair backrests under simulated real-world conditions. It replicates repetitive tensile stress, static loads, and dynamic forces to ensure compliance with international ergonomic and safety standards (e.g., BIFMA, ISO, EN). This machine helps manufacturers assess backrest longevity, optimize structural design, and prevent failures in critical support areas.

Key Features

1. Comprehensive Testing Modes:

   • Static Load Testing: Applies a fixed vertical/horizontal force to measure maximum tensile strength.
   • Dynamic Fatigue Testing: Simulates repetitive pulling (e.g., 10–50 cycles/min) to assess long-term durability.
   • Multi-Axis Testing: Evaluates stress distribution across the backrest frame, including armrest connections and lumbar support.

2. High Precision & Customization:

   • Adjustable load range (100–1000 N) and speed (1–50 cycles/min) to mimic diverse usage scenarios.
   • Configurable test angles (0–180°) to evaluate backrest stability during different user postures.

3. Advanced Safety & Accuracy:

   • Overload protection, emergency stop function, and automatic shut-off to prevent mechanical failure.
   • High-precision load cells (±0.5% accuracy) and linear encoders for displacement measurement.

4. User-Friendly Operation:

   • Touchscreen HMI with preloaded test protocols (BIFMA X5.1, EN 1335) and customizable parameters.
   • Real-time data display, automatic failure detection, and exportable reports (CSV/Excel/PDF).

Technical Specifications

Components & Design

1. Frame:

   • Heavy-duty steel structure with reinforced bearings for stable, high-cycle testing.

2. Loading System:

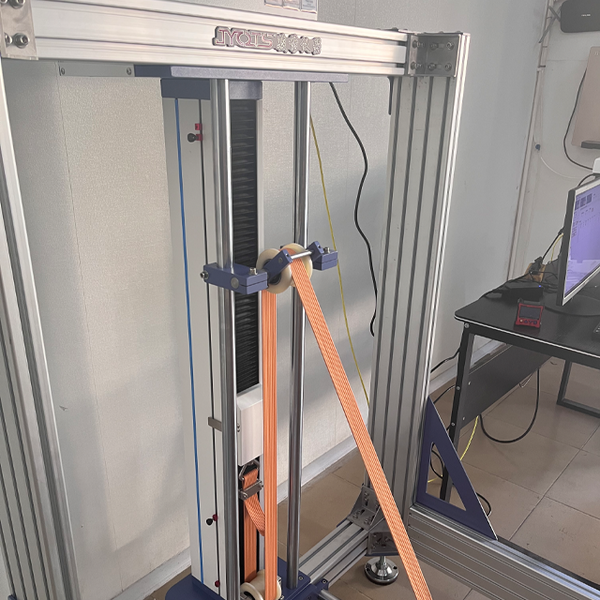

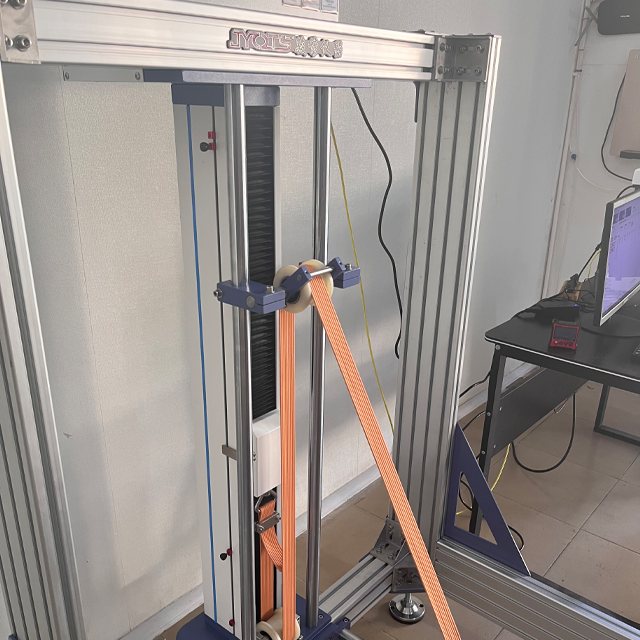

   • Dual-acting pneumatic/hydraulic actuators for precise tensile force application.

3. Fixtures:

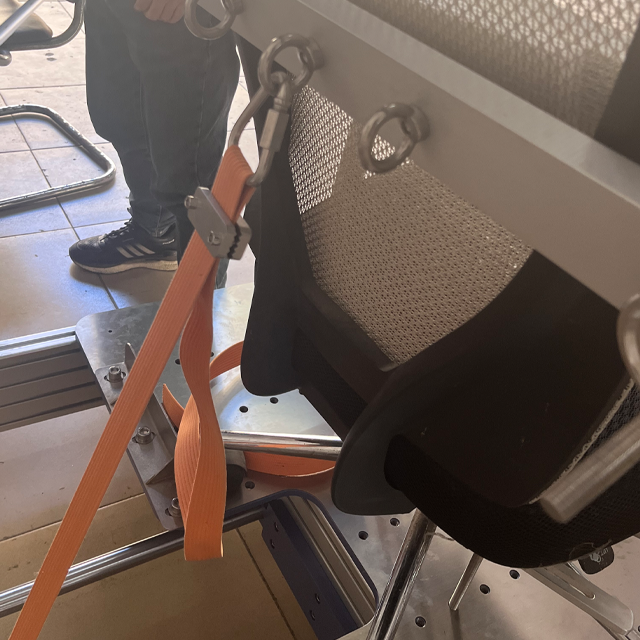

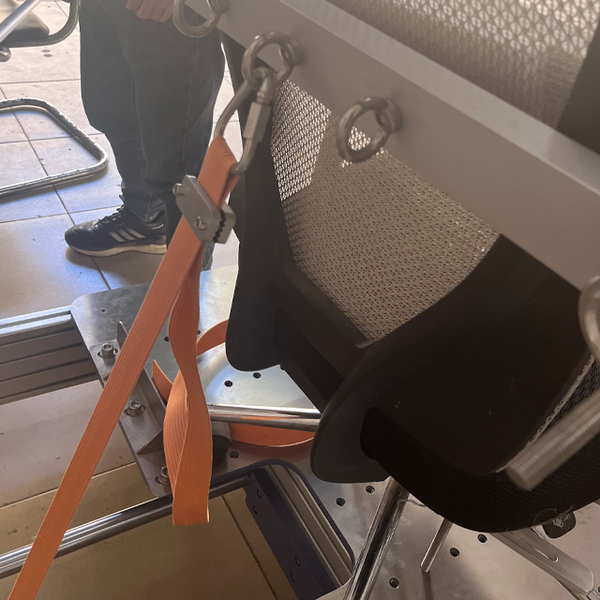

   • Adjustable clamps and pressure-sensitive pads to secure backrests of varying shapes (e.g., mesh, padded, or metal frames).

4. Safety Features:

   • Emergency stop button, door interlock, and overload protection system.

Applications

• Quality Control: Verify compliance with ergonomic standards (e.g., BIFMA X5.1, ANSI/BIFMA X5.5).
• R&D: Develop lightweight yet durable materials for ergonomic chair designs.
• Failure Analysis: Identify weak points in welds, joints, or fabric attachments under stress.

Compliance Standards

• Aligns with BIFMA X5.1 (Office Chairs), EN 1335 (European Chair Standards), ISO 2768 (Plastic Components), and GB/T 3325 (Chinese National Standard).

Optional Accessories

• Force Gauges: For real-time force feedback during testing.
• Environmental Chamber: Tests backrest performance under combined temperature/humidity conditions.
• Fatigue Fixtures: For high-frequency loading simulations.
• Data Acquisition Software: Advanced analytics for stress-strain curves and fatigue life prediction.

Why Choose This Machine?

• Efficiency: Automated testing reduces manual effort by 70% compared to manual methods.
• Accuracy: Certified calibration ensures traceable results for certifications and audits.
• Durability: Built for continuous operation in fast-paced manufacturing environments.
• Support: Includes installation, operator training, and 24/7 technical assistance.
