Product Overview

Product Application:

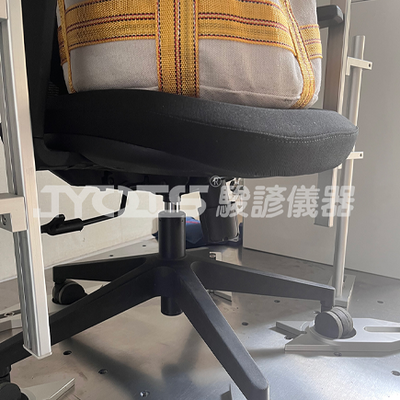

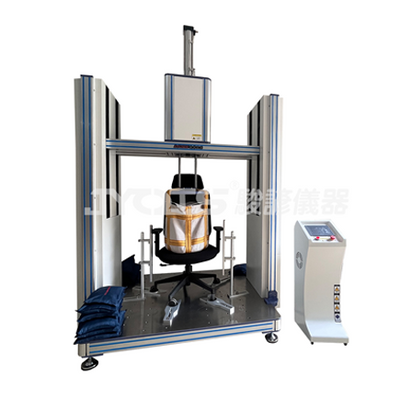

The Office Chair Seat Impact Testing Machine is designed for testing seating products such as office chairs and stools. It conducts mechanical performance tests, including free-fall impact and durability impact tests, at room temperature. This machine is widely used in the office chair and furniture industry to evaluate the seat's ability to withstand vertical forces during single impacts and fatigue durability testing. It helps enhance the overall quality and reliability of seating products.

Product Application:

The Office Chair Seat Impact Testing Machine is designed for seating products such as office chairs and stools. It conducts mechanical tests, including free-fall impact and durability impact tests, at room temperature. The machine is widely used in the office chair and furniture industry to evaluate the seat's performance under vertical forces, simulating single impacts and fatigue durability. It aims to improve product quality by ensuring the seat's ability to withstand everyday usage conditions.

Product Features:

Realistic Simulation:
- Accurately simulates various impacts and pressures experienced by office chair seats during daily use, such as sudden leaning, rapid sitting, and getting up.
- Ensures test results closely reflect real-life usage scenarios.
Adjustable Parameters:
- The machine allows adjustments to the force, speed, angle, and weight of the impact object.
- Simulates different user weights and various usage scenarios, comprehensively evaluating the seat’s performance under diverse conditions.
Strength and Durability Testing:
- Precisely applies specific impact forces to assess the seat's compressive strength and durability.
- Evaluates whether the seat deforms excessively, cracks, collapses, or fails under high pressure, ensuring it can withstand user weight and additional loads during use.

Compliance Standards:

ANSI/BIFMA X5.1-2017:
- 7 Dynamic Drop Test
- 10 Chair Durability Test - Cyclic
- 10.4 Front Edge Load Ease Test - Cyclic
ANSI/BIFMA X5.4-2012:
- 14 Chair Durability Test - Cyclic
- 15 Dynamic Drop Test
QB/T2280-2016:
- 6.6.2 Seat Impact Test
- 6.6.12.1 Seat Durability Test
- 6.6.3.1 Static Load Test

Technical Parameters

Technical Specifications:

Sample Height:
- 330–600mm
Sample Width:
- Less than 1400mm

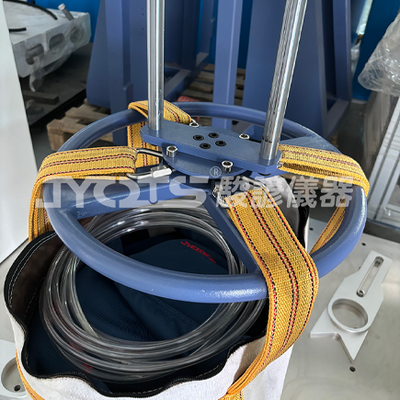

Sandbag Weight:
- 136kg
Impact Stroke:
- 1–400mm
Test Speed:
- Adjustable up to 20 cycles/min
Transmission Method:
- Pneumatic cylinder transmission (Note: Pneumatic systems cannot automatically measure height. For automatic height measurement, an electric system is recommended.)
Machine Weight:
- Approximately 300kg
Air Source Requirement:
- ≥6kg/cm²
