Product Details

Test Torque: The maximum test torque typically reaches 500 Nm or higher. For instance, the plastic kayak paddle blade torsion testing machine produced by Jinan Yinuo Century Testing Instrument Co., Ltd. has a maximum test torque of 500 Nm and is customizable.
Torque Measurement Range: Generally, the range is 1%–99% FS, with some testing machines achieving 1%–100% FS.
Torque Indication Error: It is usually required to keep the relative error of torque indication within ±0.5%, with a repeatability error of less than 0.5%.
Torque Resolution: The resolution is high, for example, reaching 1/300,000 of the maximum torque.

Torsional Angle Measurement Range: Typically 0–10,000°, which meets most requirements for paddle torsional angle measurements.
Torsional Angle Indication Error: The relative error of torsional angle indication is generally required to be controlled within ±0.5%, with a repeatability error of less than 0.5%.

Test Rotational Speed: Stepless speed regulation is typically achievable within the range of 0.05–720 r/min.
Torsional Speed Error: The relative error of torsional speed indication is generally required to be controlled within ±1%.

Specimen Clamping Range: Customizable based on the buyer's requirements to accommodate different specifications of paddle specimens.
Distance Between Force Plate and Torque Plate: Typically 0–650 mm, adjustable according to practical needs.
Coaxiality of Two Chucks: The coaxiality of the two chucks is usually required to be within 0.3 mm.
Power Supply: Commonly uses AC 220V ±10%, 50Hz.
Mainframe Dimensions and Weight:
- Net dimensions of the mainframe are generally 1,500–2,000 mm (L) × 500–600 mm (W) × 1,000–1,200 mm (H).
- Weight ranges from 400–600 kg.

Torsional Angle Resolution: The resolution is high, with a minimum resolution of 0.0001°.

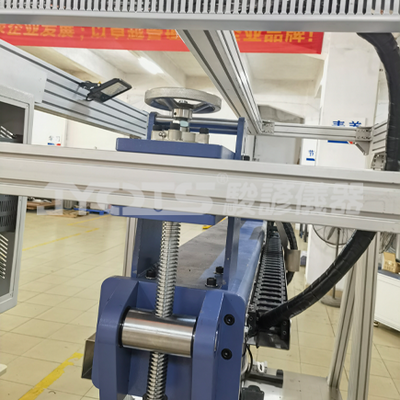

Paddle Testing Machine
