Salt spray test chamber
PRODUCT DETAILS

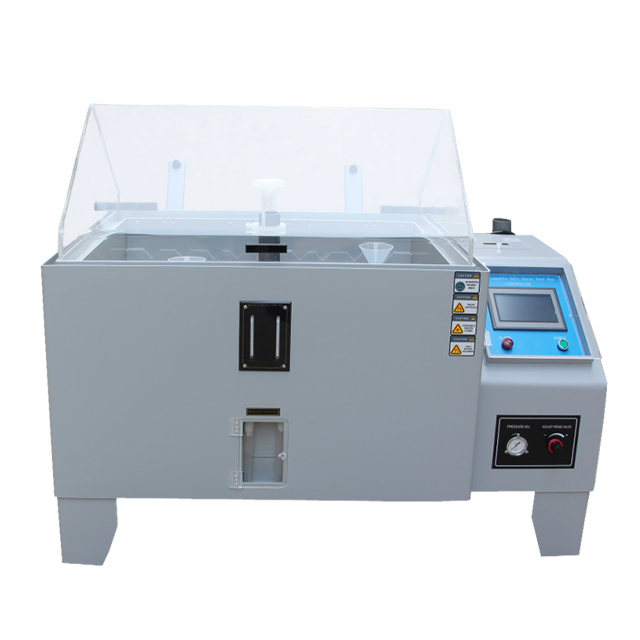

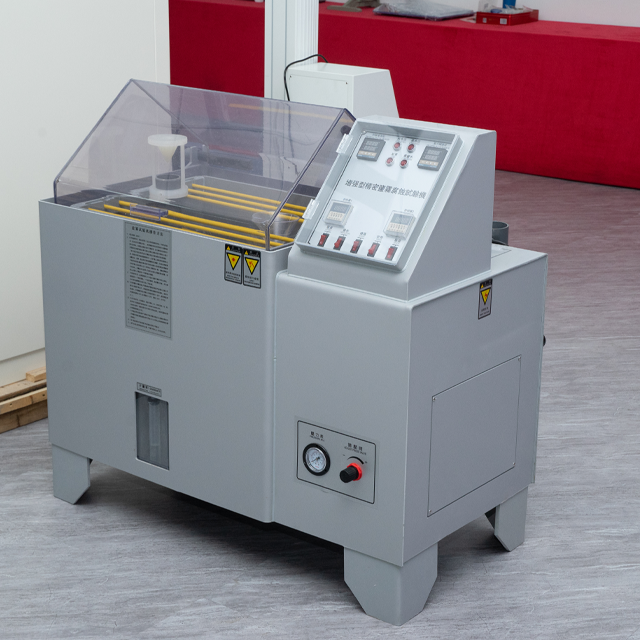

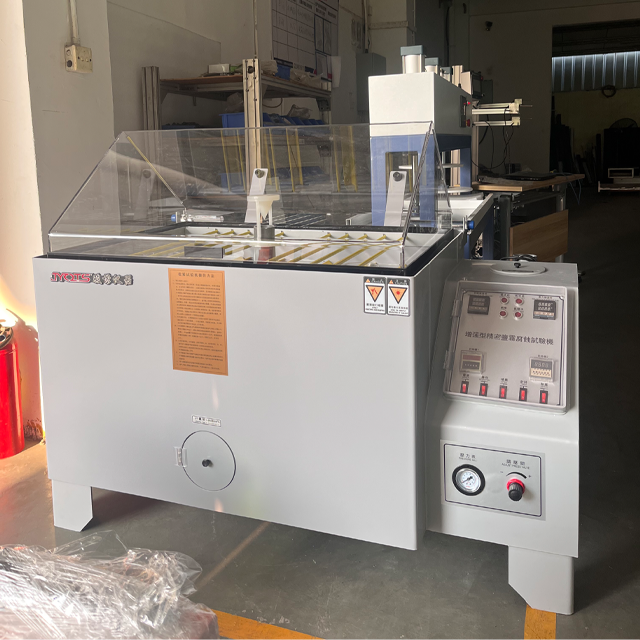

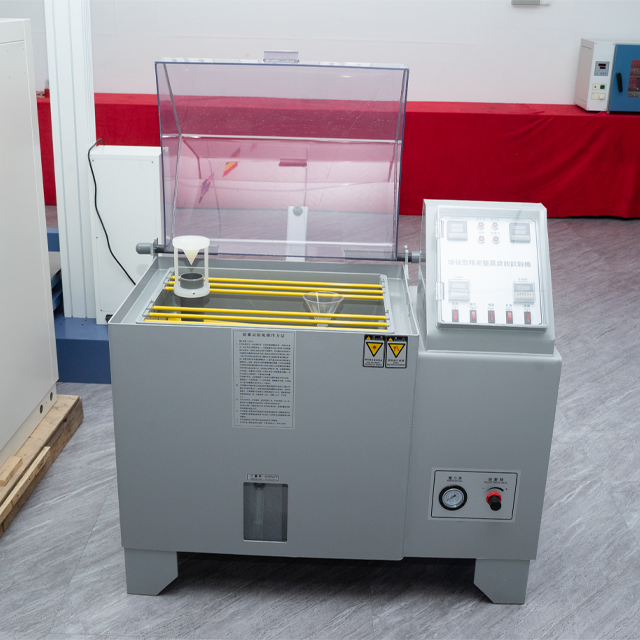

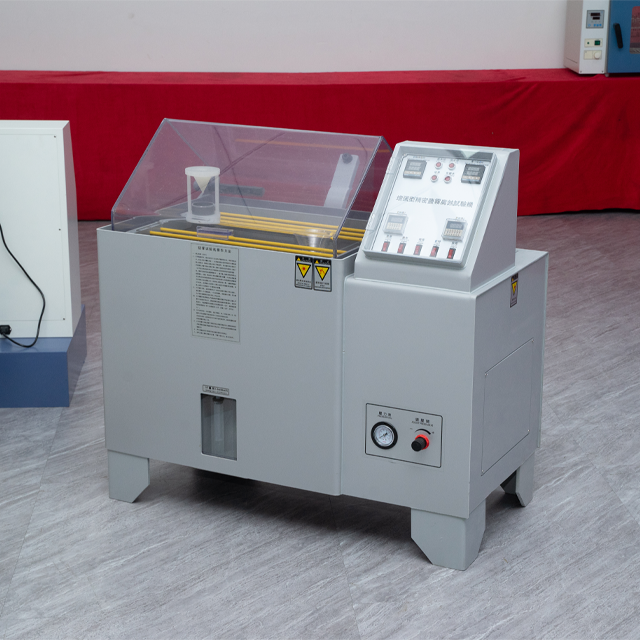

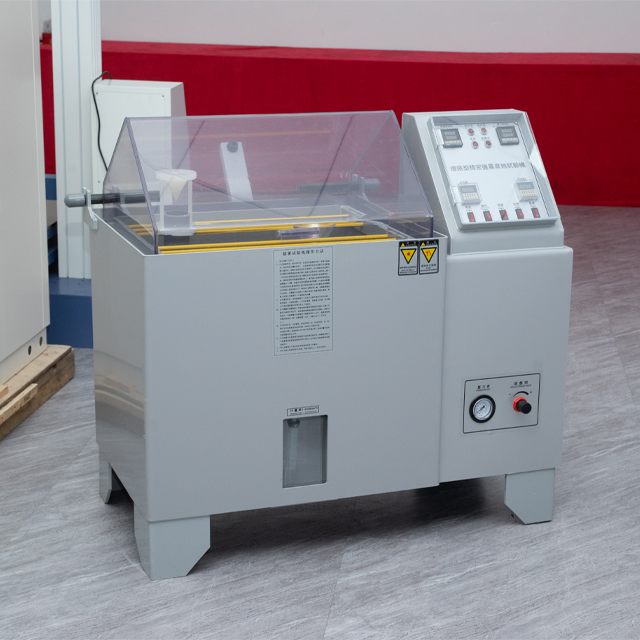

Salt Spray Test Chamber – Precision Corrosion Testing Solutions
Simulate Harsh Environments to Validate Material Durability
Our Salt Spray Test Chamber is engineered to replicate corrosive salt-laden environments, enabling industries to predict product lifespan and compliance with global standards like ASTM B117, ISO 9227, and JIS Z 2371. Ideal for automotive, aerospace, electronics, and coatings industries, this chamber ensures your materials withstand the toughest real-world conditions.
Key Features & Technical Excellence
🔬 Advanced Testing Modes
- Neutral Salt Spray (NSS): 5% NaCl solution, pH 6.5–7.2, for general corrosion evaluation.
- Acetic Acid Salt Spray (AASS): Accelerated testing with pH 3.1–3.3 for automotive coatings.
- Copper-Accelerated Salt Spray (CASS): Rapid assessment of decorative electroplated layers.
🌡️ Precision Control
- Temperature Range: Ambient to 55°C (±1°C stability).
- Salt Settling Rate: 1–2 mL/80cm²/hour (adjustable via digital pressure regulation).
- Chamber Material: Corrosion-resistant PP/FRP or PVC construction with stainless steel fog tower.
💻 Smart Operation
- 7-inch touchscreen with pre-loaded test profiles (ASTM, ISO, DIN).
- Automatic pH monitoring, brine replenishment, and humidity compensation.
- Data logging via USB/RS-485 and remote monitoring (optional).
Applications
✅ Automotive: Test coatings, fasteners, and electrical connectors for coastal or winter road salt resistance.
✅ Electronics: Validate PCB conformal coatings and connector housings against salt-induced failures.
✅ Aerospace: Assess aluminum alloys and magnesium components in marine atmospheres.
✅ Coatings & Plating: Qualify paint, zinc, nickel, or chrome layers for porosity and corrosion resistance.
✅ Construction: Evaluate hardware, steel structures, and marine-grade materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Standards | ASTM B117, ISO 9227, JIS Z 2371 |
| Chamber Capacity | 60L / 150L / 300L / 1000L (custom) |
| Temperature Control | ±1°C accuracy |
| Spray System | Pneumatic atomizer with ceramic nozzle |
| Power Supply | 220V/50Hz or 380V/60Hz |
| Dimensions | 1200×800×1000mm (standard 150L model) |
Why Choose Our Salt Spray Chamber?
✅ Durability: Reinforced PP body resists deformation and chemical corrosion.
✅ Low Maintenance: Self-cleaning nozzles and easy-drain design minimize downtime.
✅ Custom Solutions: Add cyclic humidity, drying functions, or multi-zone testing.
✅ Global Compliance: CE, RoHS, and ISO 9001 certified.
✅ Support: 24/7 technical assistance with 3-year warranty.
Customer Success Stories
“This chamber streamlined our coating validation process. The CASS mode helped us identify a plating defect in just 24 hours!”
– AutoTech Manufacturing, Germany
“The precise pH control and data export features saved us weeks of lab work. Highly recommended for ISO 9227 testing.”
– Oceanic Aerospace, USA
FAQ
Q: How long does a typical salt spray test run?
A: Tests range from 24h (quick checks) to 1000h (long-term validation). We provide programmable cyclic modes.
Q: Can I test non-metallic materials like plastics?
A: Yes! Use NSS mode to evaluate color fading, cracking, or electrical insulation degradation.
Q: How often should I clean the chamber?
A: Flush the system after each test and deep-clean monthly. Our user manual includes a maintenance checklist.
Q: Do you offer combined corrosion-humidity chambers?
A: Yes! Ask about our Cyclic Corrosion Test Chambers for multi-environment simulations.
Boost Your Quality Control Today!
📞 Request a Free Quote
📧 Customize Your Chamber
🚚 Global Shipping & Installation Support
