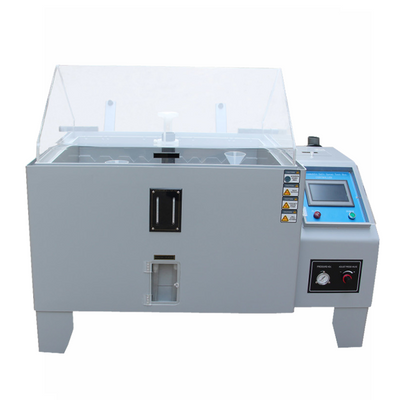

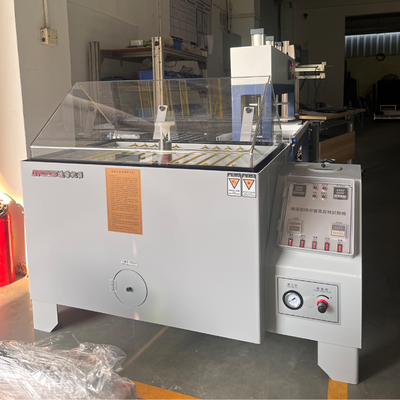

Salt Spray Test Chamber

Product Overview

The Salt Spray Test Chamber is a specialized environmental testing device designed to simulate corrosive salt-laden environments to evaluate the corrosion resistance of materials, coatings, and components. Widely used in industries such as automotive, aerospace, marine, electronics, and metal processing, this chamber accelerates corrosion testing to predict product lifespan, validate protective treatments (e.g., galvanization, powder coating), and ensure compliance with international corrosion standards.

Key Features

Standardized Corrosion Simulation:
- Compliant with ASTM B117 (Salt Spray Fog Testing), ISO 9227 (NSS, AASS, CASS), DIN 50021, and other global standards.
- Supports neutral salt spray (NSS), acetic acid salt spray (AASS), and copper-accelerated acetic acid salt spray (CASS) tests.
Precise Environmental Control:
- Temperature range: 35–50°C (adjustable with ±0.5°C accuracy).
- Spray rate: 1.0–2.5 mL/80 cm²/hour (programmable for consistent fog distribution).
- Salt solution concentration: 4–6% NaCl (with automatic calibration).
High-Performance Components:
- Corrosion-resistant stainless steel chamber and accessories (SS316L grade).
- High-pressure diaphragm pumps and nozzles for uniform fog distribution.
User-Friendly Operation:
- Touchscreen HMI with preloaded test programs and customizable parameters (test duration, temperature, spray intensity).
- Real-time monitoring of temperature, humidity, and salt concentration.
Safety & Durability:
- Overload protection, door interlock, and emergency stop function.
- Compact design with easy-to-clean drainage and fog collection systems.

Technical Specifications

Parameter	Details
Test Chamber Size	Standard: 1200 × 800 × 600 mm (L × W × H); custom sizes available
Temperature Range	Ambient +5°C to 50°C
Salt Spray Rate	1.0–2.5 mL/80 cm²/hour (adjustable)
Humidity Range	≥95% RH (maintained via continuous fogging)
Power Requirement	220–380V, 50/60 Hz, 10–25 kW (varies by capacity)
Material	SS316L stainless steel interior; polyurethane-insulated exterior

Components & Design

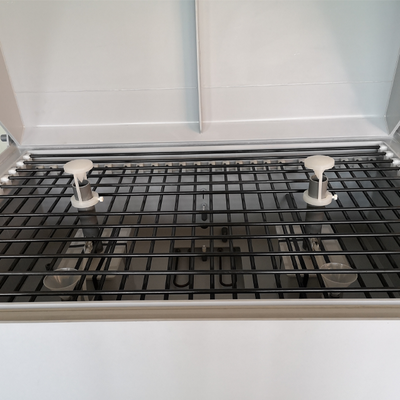

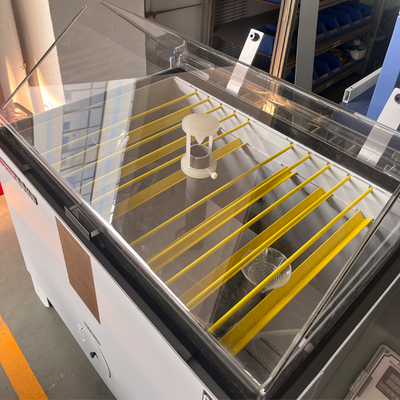

Test Chamber:
- Double-walled, insulated design for energy efficiency and temperature stability.
Fog Generation System:
- Adjustable nozzle angles and spray nozzles for uniform fog coverage.

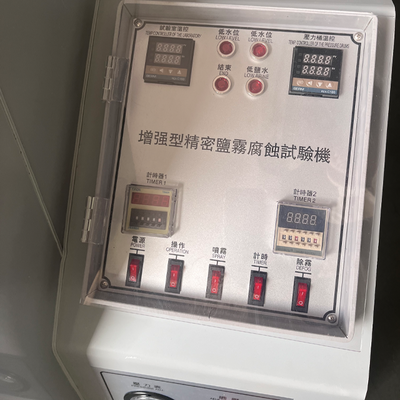

Control System:
- PLC-based automation with data logging, USB/RS232 output, and compliance report generation.
Safety Features:
- Leak detection alarms, emergency stop button, and automatic drain system.

Applications

Automotive: Test anti-corrosion coatings on vehicle bodies, chassis, and engine components.
Marine: Evaluate rust resistance of ship components and offshore structures.
Electronics: Assess corrosion of PCBs, connectors, and metal enclosures.
Aerospace: Validate corrosion protection for aircraft parts exposed to harsh environments.

Compliance Standards

Aligns with ASTM B117, ISO 9227, JIS Z 2371, GB/T 10125 (Chinese National Standard), and SAE J2334.

Optional Accessories

Humidity Sensors: For precise humidity monitoring.
Copper Accelerated Salt Spray Fixtures: For accelerated corrosion testing (CASS).
Data Acquisition Software: Advanced analytics for corrosion rate and failure mode analysis.
Environmental Chambers: Combines salt spray with temperature/humidity cycling.

Why Choose This Chamber?

Accuracy: Certified calibration ensures reliable, repeatable results for certifications.
Efficiency: Compact design reduces footprint while maintaining high performance.
Durability: Corrosion-resistant materials ensure long-term reliability.
Support: Includes installation, operator training, and 24/7 technical assistance.
