Summary:

Salt Spray Test is a standardized and popular corrosion test method, used to check corrosion resistance of materials and surface coatings. Usually, the materials to be tested are metallic and finished with a surface coating which is intended to provide a degree of corrosion protection to the underlying metal.

Features:

1. Automatic add water when water shortage, with a group of manually water.

2. Special glass nozzle(PYREX), guarantee non-crystalline block.

3. With dual over-temperature protection, water shortage warning, ensure safety use.

4. Temperature device adopts digital display, PID control, precision is 0.1 centigrade degree.

5. Chamber adopts direct steam heating method, fast warming, shortening standby time

6. Spray tower attached cone diffuser, with functions of directional mist, adjustable mist, uniformity fog Lamp.

Test Standards:

CNS: 3627, 3385, 4159, 7669, 8886.

JIS: D0201, H8502, H8610, K5400, Z2371.

ISO: 3768, 3769, 3770.

ASTM: B 117, 8117, B268.

Model	JY-YW60		JY-YW90		JY-YW120
Test room size(cm)	60x45x40		90x60x50		120x80x50
Outside box size(cm)	107x63x118		141x88x128		190x120x140
Testing room temperature	Salt Test (NESS ACSS) 35°C±1°C / Corrosion Test (CASS) 50°C±1°C
Saturated air barrel Temperature	Salt Test (NESS ACSS) 47°C±1°C / Corrosion Test (CASS) 63°C±1°C
PH	Salt Spray Test (NESS ACSS) 6.5~7.2 Corrosion-resistant Test(CASS) 3.0~3.2
Spray volume	1.0~2.0ml/h
Testing room relative humidity	> 85%
Salt concentration	The concentration of sodium chloride 5%
Testing room Capacity	108L		270L		480L
Brine tank capacity	15L		25L		40L
Air pressure	1.00±0.01kgf/cm2
Spray form	Programmable spray (Including continuous and intermittent spray)
Multiple safety protection devices	Current discharge protection, over pressure protection,over temperature protection, over load fuse protection
Power	220V,10A	220V,15A		220V,20A

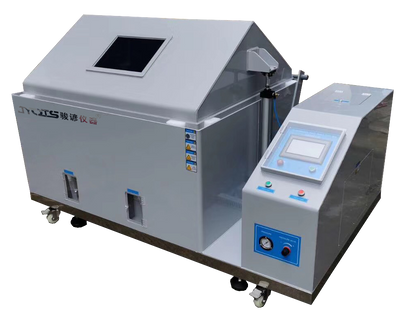

60L Salt spray test chambers are used for metal corrosion
