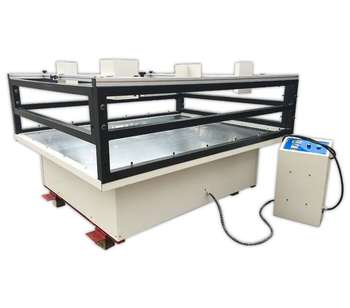

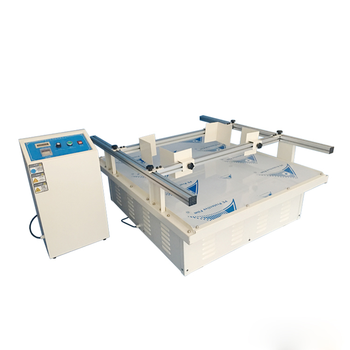

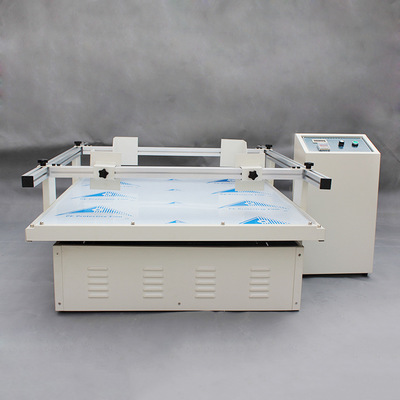

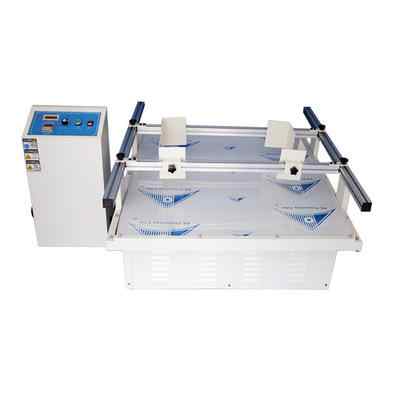

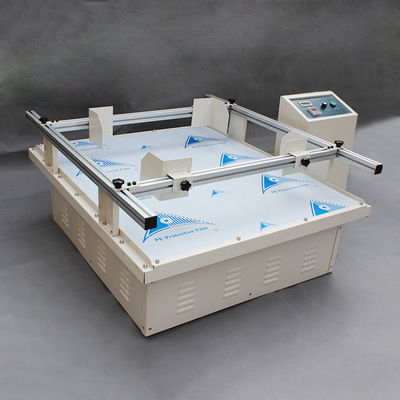

Transport Simulation Vibration Tester – Realistic Testing for Product Durability

Replicate Road, Rail, and Air Freight Vibration to Predict Real-World Shipping Failures
Our Transport Simulation Vibration Tester combines vertical/horizontal vibration, shock, and drop testing to validate packaging integrity and product reliability. Compliant with ASTM D4169, ISTA 3A, and MIL-STD-810G, this system is essential for electronics, automotive, and consumer goods industries to minimize logistics damage.

Core Technologies & Features

📦 Multi-Axis Vibration Modes

Vibration Types:
- Random Vibration: 5–2000 Hz (PSD up to 0.1 g²/Hz).
- Sine Vibration: 5–3000 Hz (±50 mm displacement).
- Shock Testing: Half-sine/impact pulses (up to 100G, 11ms duration).
Axes: Vertical (Z-axis) + Horizontal (X/Y-axis optional).

🔧 Heavy-Duty Performance

Payload Capacity: 50 kg ~ 1000 kg (modular expansion).

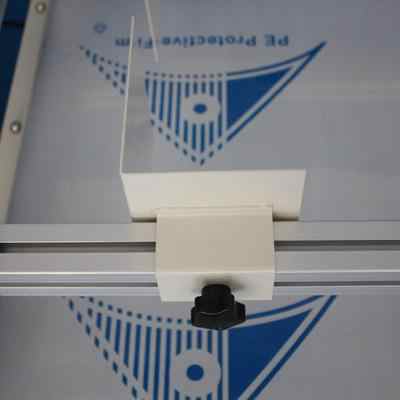

Slip Table: 600×600 mm aluminum platform with T-slot fixtures.
Control Accuracy: ±5% acceleration deviation (ISO 13355 certified).

📊 Smart Operation

10-inch touchscreen with preloaded ISTA, ASTM, and custom road profiles.
Real-time FFT analysis, SRS plots, and failure detection algorithms.
Remote control via Ethernet/RS-232 and cloud data storage (optional).

🚚 Real-World Simulation

Road Profiles: Simulate truck (ISO 13355), train (EN 15433), or airfreight vibrations.
Drop Tower Integration: Combine vibration with 0–2m programmable drops (optional).
Temperature/Humidity Chamber: Add environmental stress (optional).

Technical Specifications

Parameter	Specification
Frequency Range	5–3000 Hz (sine), 5–2000 Hz (random)
Max Acceleration	50 m/s² (random), 100G (shock)
Displacement	±50 mm (peak-to-peak)
Payload	100 kg (standard), 1000 kg (custom)
Compliance	ISTA 3A, ASTM D999, EN 60068-2-64
Power Supply	380V/50Hz or 480V/60Hz

Applications

✅ Electronics: Test PCBs, servers, and displays for solder joint fatigue.
✅ Automotive: Validate sensors, infotainment systems, and EV battery packs.
✅ Pharmaceuticals: Ensure vial integrity and medical device functionality post-shipment.
✅ Consumer Goods: Optimize packaging for glassware, appliances, and luxury items.
✅ Aerospace: Certify avionics and satellite components under launch vibration profiles.

Why Choose Our Vibration Tester?

✅ Hyper-Realistic Simulation: Database of 100+ global transport road profiles.
✅ Cost Savings: Reduce field testing by 70% with lab-validated results.
✅ Modular Design: Expand with drop testers, environmental chambers, or multi-axis shakers.
✅ Zero Downtime: Brushless linear motors with 20,000-hour MTBF.
✅ Global Support: CE, UL, and ISO 17025-certified calibration services.

Customer Success Stories

“Simulating 8,000 km truck vibrations in 8 hours exposed critical PCB cracks. Saved $1M in recalls!”
– ElectroTech Systems, USA

“Combining vibration + temperature testing cut our automotive sensor validation time by 60%.”
– AutoInnovate Group, Germany

FAQ

Q: How to choose between electrodynamic vs. hydraulic shakers?
A: Our electrodynamic system offers higher frequency (up to 3000Hz) and lower maintenance vs. hydraulic.

Q: Can I test irregularly shaped products?
A: Yes! Use custom jigs or 3D-printed fixtures (design support available).

Q: How often is calibration needed?
A: Annual calibration recommended. We provide NIST-traceable certificates.

Q: Can it simulate ocean vessel vibrations?
A: Yes! Load our marine profile (IEC 60068-2-53) for low-frequency sway testing.

Optimize Your Shipping Reliability Today!

📞 Request a Demo | 📧 Custom Configuration | 🌍 Global Delivery & Training
