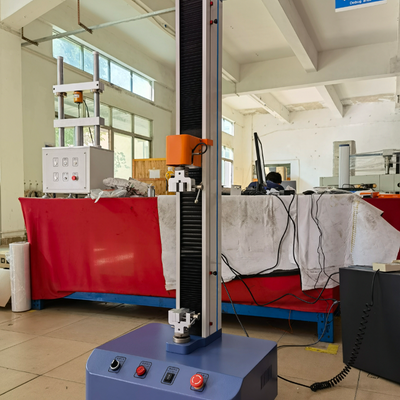

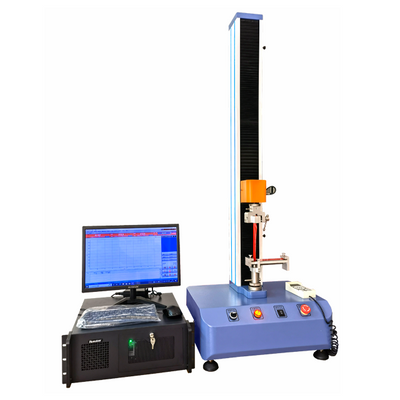

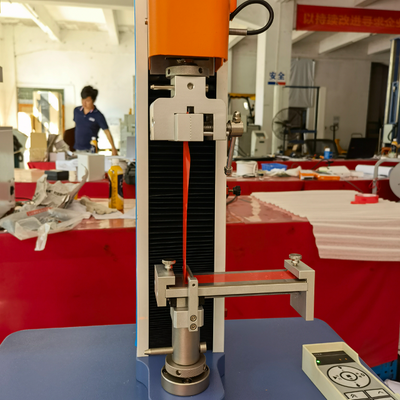

Single Column Tensile Testing Machine

Product Overview

The Single Column Tensile Testing Machine is a compact yet robust device designed to evaluate the tensile strength, elongation, and mechanical properties of materials such as metals, plastics, rubber, textiles, adhesives, and composites. Ideal for quality control, R&D, and academic research, this machine delivers precise force measurement and accurate data analysis to ensure material compliance with international standards (e.g., ASTM, ISO, GB/T).

Key Features

High Precision Measurement:
- Equipped with high-accuracy load cells (±0.5% FS) and digital encoders for force and displacement measurement.
- Measures critical parameters: tensile strength, yield strength, elongation at break, modulus of elasticity, and stress-strain curves.
Versatile Testing Capabilities:
- Supports static tensile tests (constant rate of extension) and dynamic cyclic tests (fatigue resistance).
- Compatible with standard test methods: ASTM D638, ISO 527, GB/T 1040, and more.
User-Friendly Operation:
- Touchscreen HMI with preloaded test programs and customizable parameters (test speed, preload, dwell time).
- Real-time data display, automatic calculations, and exportable reports (CSV/Excel/PDF).
Compact Design:
- Single-column structure for space efficiency without compromising rigidity.
- Lightweight yet durable materials for lab or production environments.
Safety & Reliability:
- Overload protection, emergency stop button, and automatic shut-off to prevent damage.
- Anti-vibration design ensures stable operation during high-force tests.

Technical Specifications

Parameter	Details
Maximum Load Capacity	1 kN to 50 kN (selectable models)
Test Speed Range	0.01–500 mm/min (programmable)
Stroke Length	500–1500 mm (adjustable)
Load Accuracy	±0.5% Full Scale (FS)
Displacement Resolution	0.001 mm
Control System	PLC + HMI with data logging, USB/RS232/RS485 output
Power Requirement	220V ±10%, 50/60 Hz, 1–5 kW (varies by model)

Applications

Metals & Alloys: Test tensile properties of steel, aluminum, and wires.
Plastics & Polymers: Evaluate plastic films, pipes, and injection-molded parts.
Rubber & Elastomers: Measure elongation and tear resistance.
Textiles & Composites: Assess fabric strength and composite bond durability.
Adhesives & Coatings: Determine peel strength and substrate adhesion.

Compliance Standards

Aligns with ASTM D638 (Plastics), ISO 527 (Plastics), GB/T 1040 (Plastics), ASTM E8 (Metals), and EN 10002 (Metal Materials).

Optional Accessories

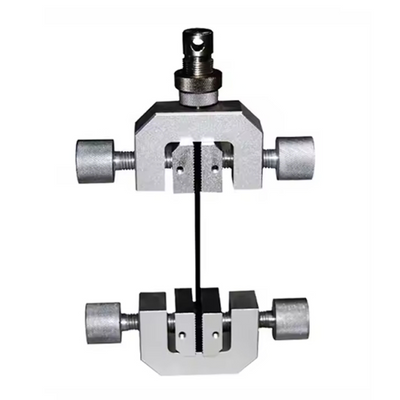

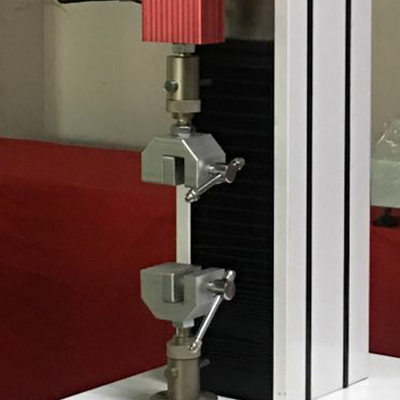

Advanced Grips & Fixtures: For specimens of varying shapes (e.g., flat, round, tubular).
Environmental Chamber: Tests materials under combined temperature/humidity conditions.
Data Acquisition Software: Advanced analytics for stress-strain curves and fatigue life prediction.
Calibration Kits: Traceable accuracy validation for certifications.

Why Choose This Machine?

Cost-Effective: Compact design reduces lab space requirements while maintaining high performance.
Versatility: Adaptable to a wide range of materials and industries.
User-Friendly: Intuitive interface for operators of all experience levels.
Support: Includes installation, operator training, and 24/7 technical assistance.

Single column tensile testing machine
