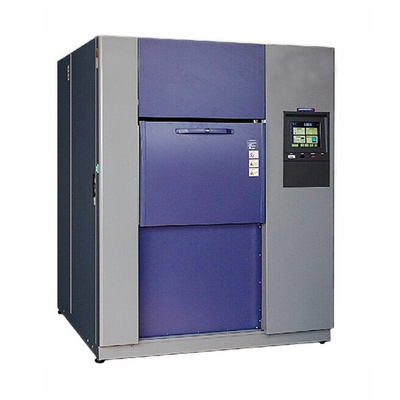

Thermal Shock Test Chamber

Master Extreme Temperature Transitions in Seconds
Our Thermal Shock Test Chamber is engineered to simulate rapid temperature shifts, exposing products to abrupt changes from -65°C to +150°C in seconds. Designed for aerospace, automotive, and electronics industries, this chamber validates material integrity under the most demanding thermal stress conditions.

Core Technology & Advantages

⚡ Ultra-Fast Temperature Switching

Temperature Range: -70°C to +180°C (customizable to +220°C).
Transition Time: ≤10 seconds (between high/low zones).
Recovery Time: ≤5 minutes (to stabilize target temperature).

🔧 Three-Zone & Two-Zone Designs

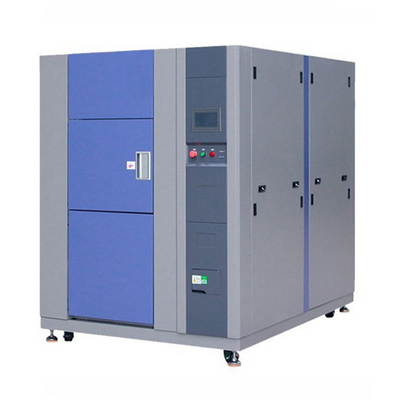

Three-Zone Model: Independent high-temperature, low-temperature, and test zones for continuous cycling.
Two-Zone Model: Direct transfer between hot/cold chambers via basket or elevator.
Optional Liquid Cooling: For ultra-low temperatures (-80°C) or high-power testing.

📈 Precision Control & Monitoring

10.4-inch touchscreen with preset profiles (MIL-STD-750, JEDEC, IEC 60068).
Real-time graphing of temperature curves and event logs.
Remote access via Ethernet/Wi-Fi (optional).

🏭 Robust Construction

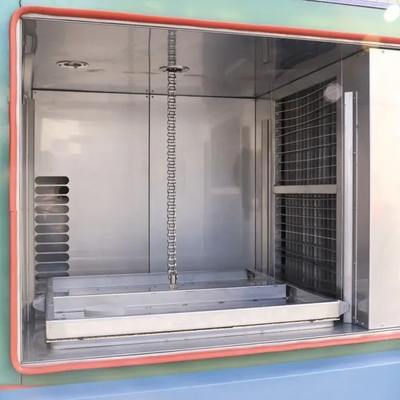

High-strength stainless steel (SUS316) interior with PTFE-coated seals.

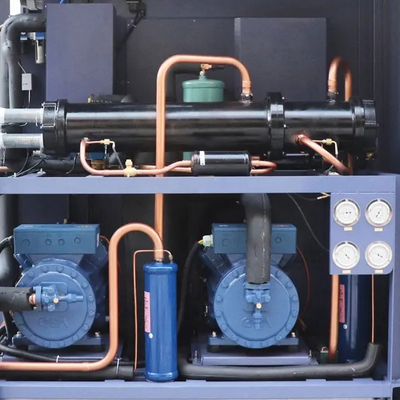

Dual cascade refrigeration systems for extreme cold stability.
Industrial-grade insulation for minimal thermal leakage.

Applications

✔️ Semiconductors: Test IC packages, solder joints, and MEMS devices for thermal fatigue.
✔️ Automotive: Validate connectors, sensors, and LED lighting under rapid temperature shocks.
✔️ Aerospace: Simulate high-altitude cold and re-entry heat for avionics components.
✔️ Consumer Electronics: Ensure smartphones, displays, and wearables survive global climates.
✔️ Military & Defense: Accelerate lifespan testing of ruggedized equipment.

Technical Specifications

Parameter	Specification
Temperature Range	-70°C ~ +180°C (High Zone: +60°C to +220°C)
Transition Speed	≤10 sec (mechanical transfer)
Internal Volume	50L / 100L / 300L (custom up to 1000L)
Chamber Material	SUS316 stainless steel
Power Supply	380V/50Hz or 220V/60Hz
Compliance	MIL-STD-810G, IEC 60068-2-14, GB/T 2423.22

Why Choose Our Thermal Shock Chamber?

✅ Industry-Leading Speed: Achieve 50% faster test cycles than conventional models.
✅ Zero Condensation: Patented dry air purge system prevents frost/ice buildup.
✅ Custom Solutions: Add humidity control, vibration modules, or explosion-proof designs.
✅ Global Support: 24/7 technical assistance with 3-year warranty and on-site maintenance.

Customer Success Stories

“Testing aerospace connectors from -65°C to +175°C in 8 seconds was a game-changer. The data consistency is unmatched.”
– Orion Aerospace, France

“Our semiconductor team reduced qualification time by 40% using the three-zone model. A must-have for R&D!”
– SiliconTech Labs, South Korea

FAQ

Q: What’s the difference between two-zone and three-zone chambers?
A: Two-zone chambers transfer samples between hot/cold zones, while three-zone models enable continuous cycling without manual intervention.

Q: Can the chamber test multiple samples simultaneously?
A: Yes! Customizable racks and trays optimize batch testing capacity.

Q: How often should maintenance be performed?
A: We recommend annual inspections for refrigeration systems and monthly seal checks.

Elevate Your Testing Standards Today!
📞 Free Consultation | 📧 Instant Quote | 🚀 Fast Global Delivery
