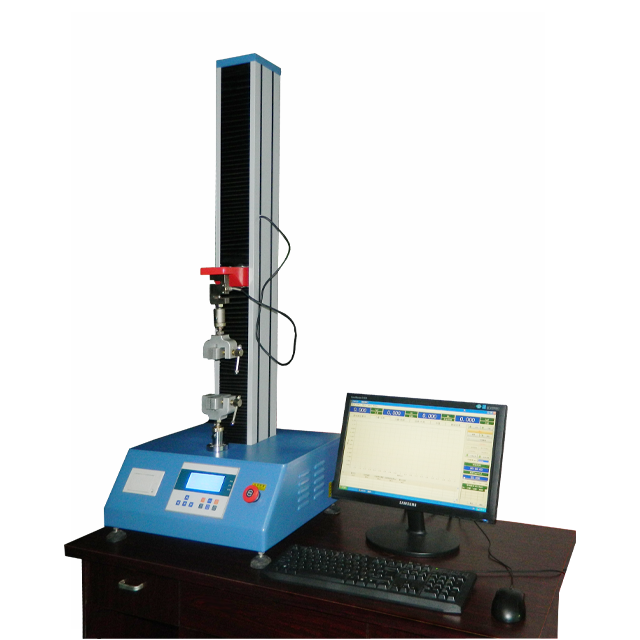

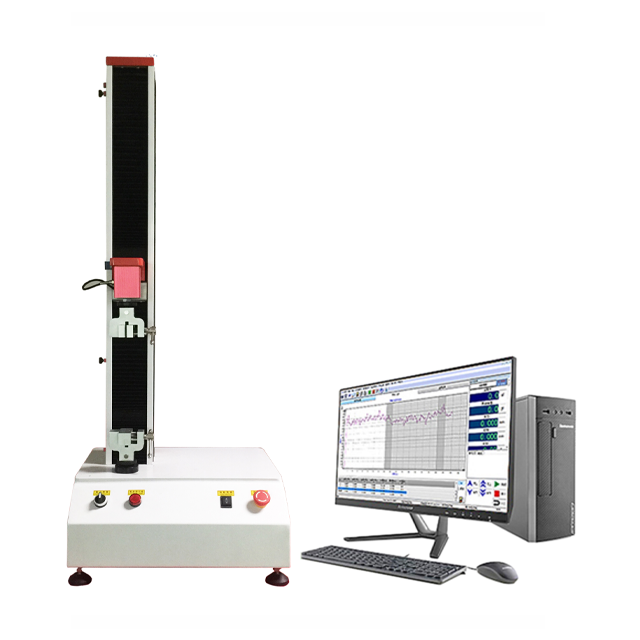

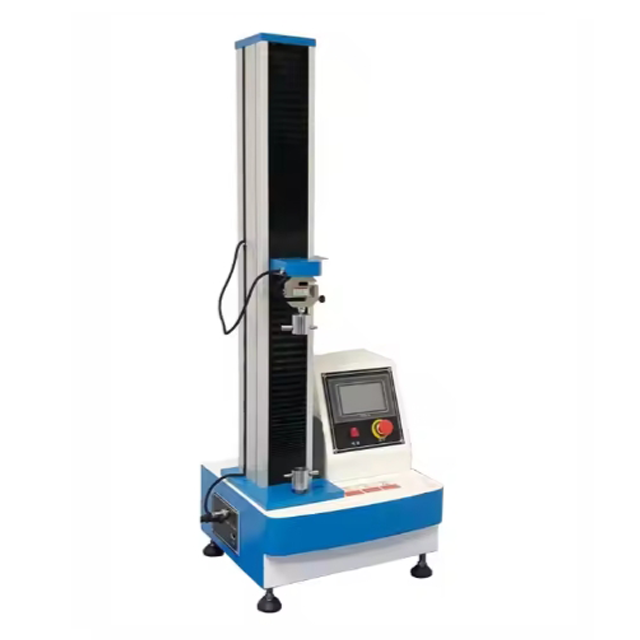

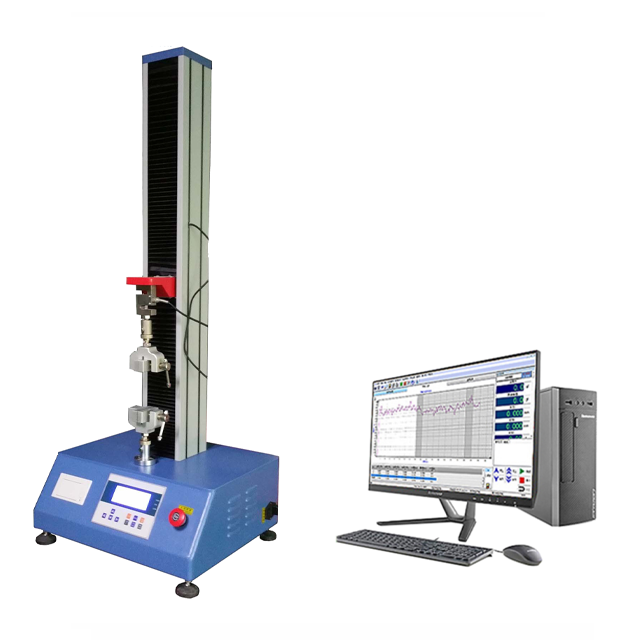

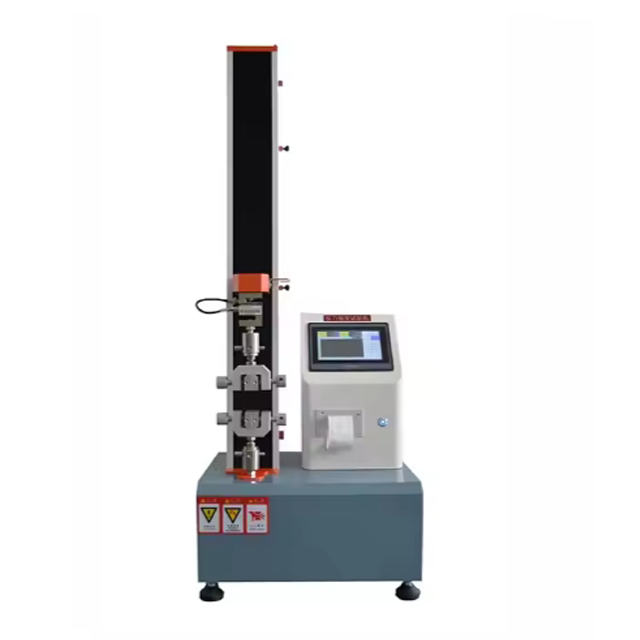

Touch screen single-column tensile testing machine
PRODUCT DETAILS
Touchscreen Single-Column Tensile Tester – Compact Precision for Materials & Components
ISO 6892, ASTM D638 & ASTM E8 Compliant Testing in Benchtop Design
Our Touchscreen Single-Column Tensile Tester integrates high-accuracy force measurement (±0.5% FS) with intuitive touch controls for rapid tensile, compression, peel, and bend tests – ideal for plastics, textiles, adhesives, and thin metals.
Key Features & Advantages
Smart Touchscreen Operation
- 10" Touchscreen: Preloaded ISO, ASTM, GB/T, and JIS standards with one-touch testing.
- Auto-Calibration: Self-diagnosis and guided calibration routines.
- Real-Time Curves: Graph force-displacement, stress-strain, and modulus data live.
Precision Performance
- Capacity Range: 5 kN / 10 kN / 20 kN / 50 kN (1,125–11,240 lbf).
- Speed Range: 0.001–600 mm/min (creep to high-speed testing).
- Accuracy: ±0.5% FS (Class 0.5) with temperature-compensated load cell.
- Displacement Resolution: 0.0001 mm (optical encoder).
Modular Flexibility

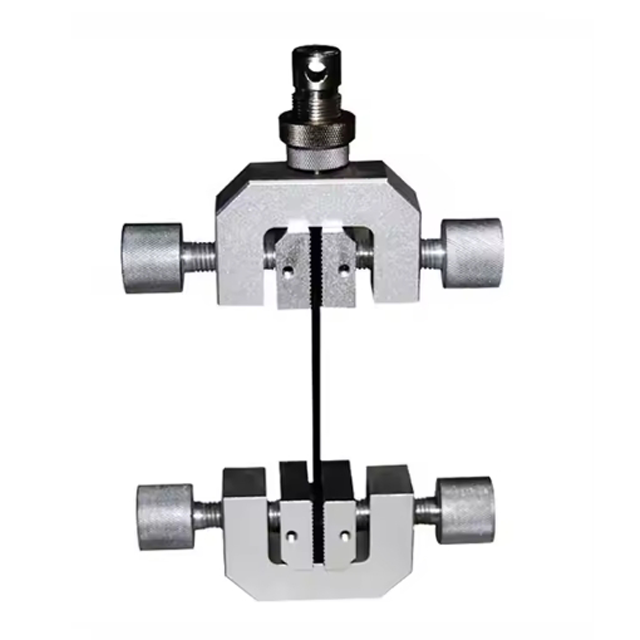

- Quick-Change Fixtures: Swap grips for tensile, compression, peel, or friction tests in <60 sec.
-
Optional Attachments:
- Video Extensometer (non-contact strain).
- Thermal Chamber (-40°C to +200°C).
- Advanced Software Package (FEA data export).
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Load Capacity | 50 kN (11,240 lbf) |
| Test Space Height | 950 mm (adjustable) |
| Control Modes | Position / Speed / Force / Strain |
| Data Sampling | 1,000 Hz |
| Grip Types | Wedge, pneumatic, rollers, film grips |
| Compliance | ISO 7500-1, CE, RoHS |
Applications
✅ Plastics & Films: Tensile tests (ASTM D638), tear strength (ISO 34-1).
✅ Textiles & Nonwovens: Yarn strength, zipper durability (ASTM D5035).
✅ Adhesives: Peel strength (ISO 11339), shear tests (ASTM D3165).
✅ Electronics: PCB flexure, solder joint strength (IPC-TM-650).
✅ Medical Devices: Catheter tensile, packaging seal tests (ISO 11607).
Why Choose Our Benchtop Tester?
✅ Space-Saving: 50% smaller footprint vs. dual-column systems.
✅ Zero Learning Curve: Drag-and-drop test programming on intuitive touch UI.
✅ Lab-Grade Accuracy: High-repeatability results (<±0.7% RD).
✅ Cost Efficiency: 30% lower ownership cost vs. competitors.
Customer Success
“Testing 100+ adhesive strips daily with touchscreen presets cut operator training from weeks to hours!”
– MediSeal Packaging, Germany
“The video extensometer caught micro-cracking in OLED films our manual system missed.”
– FlexTech Displays, South Korea
FAQ
Q: How accurate is the strain measurement?
A: ±0.5% with optical encoder or ±0.2% with optional video extensometer.
Q: Can it perform cyclic fatigue tests?
A: Yes! Pre-programmed fatigue cycles (1–10 Hz) with SN curve analysis.
Q: What sample sizes are supported?
A: Max width: 150 mm; Max thickness: 40 mm (custom fixtures for larger samples).
Q: How to export reports?
A: USB/Excel/PDF or direct cloud sync (QTestLab™ software).
Request Quote or Virtual Demo!
📞 Technical Support | 📧 Get Compliance Checklist | 🌍 Global Delivery in 2 Weeks
