Product Details

Impact Energy: Typically simulated by converting the potential energy of a freely falling weight, which depends on the weight's mass and drop height. For example, the weight mass is 75 kg, with an adjustable drop height ranging from 10–300 mm.
Impact Frequency: Adjustable within a certain range, generally 1–120 times/min.
Impact Position: Usually located at specific positions on the treadmill running surface, such as at 66% of the length measured from the rear end.

Treadmill Running Speed: Can simulate various running speeds, typically adjustable between 6–12 km/h.
Testing Machine Base Dimensions: Generally large to ensure treadmill stability, such as 1200 mm × 2000 mm or 1500 mm × 1000 mm.
Effective Net Width of the Machine Platform: Typically around 100 cm.

Control Method: Typically uses PLC + color touchscreen control, with a programmable controller as the electrical control system. This setup is user-friendly and enables automated control.
Display Method: Commonly equipped with 5.7-inch or 7-inch TFT true color touchscreen displays, capable of showing real-time test parameters and status.

Power Source: Generally provided by motor and compressed air, supplying the power needed for impact testing.
Safety Protection Devices: Includes emergency stop switches, overload protection devices, and other safety features to ensure a secure and reliable testing process.
Power Supply: Typically AC 220V 50Hz.

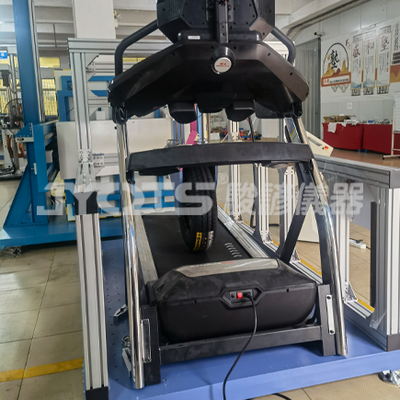

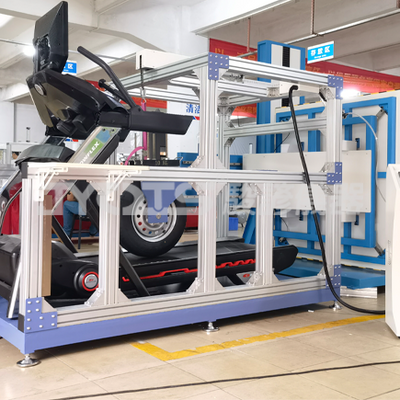

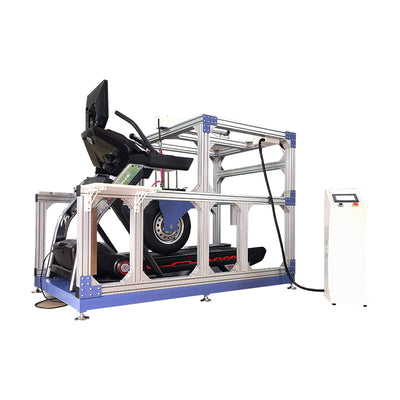

Treadmill Impact Testing Machine
