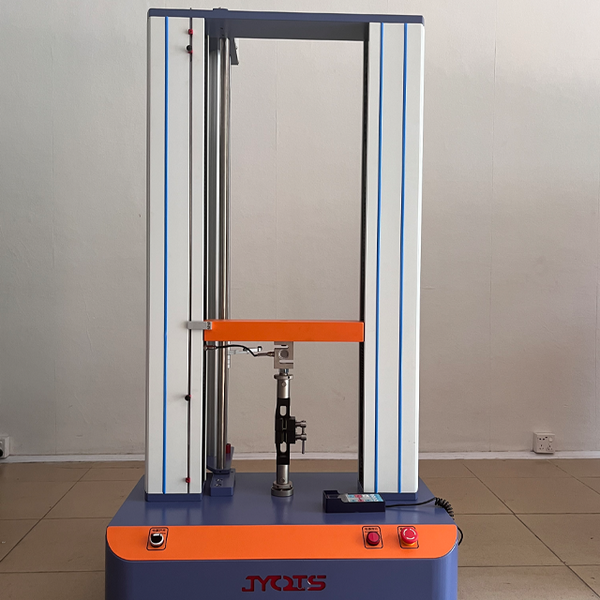

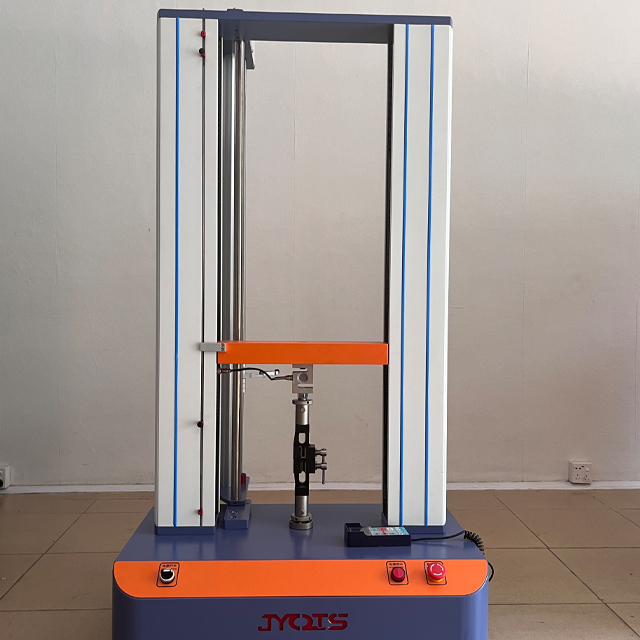

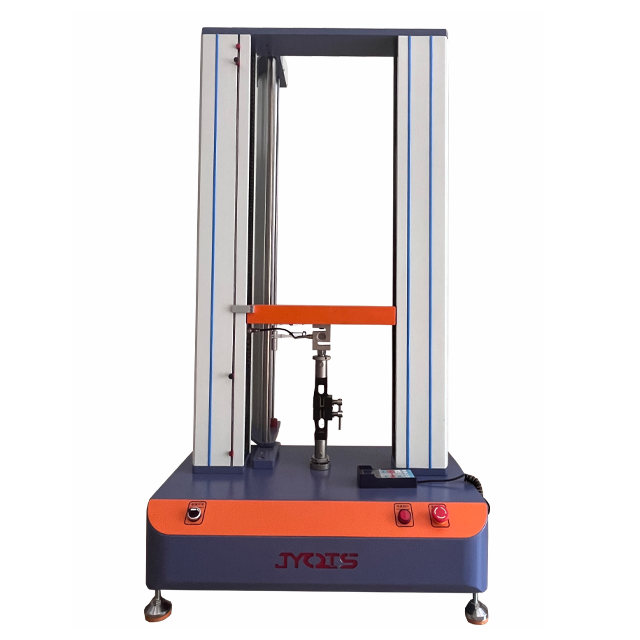

Double column 2T material tensile testing machine for wire and cable
PRODUCT DETAILS

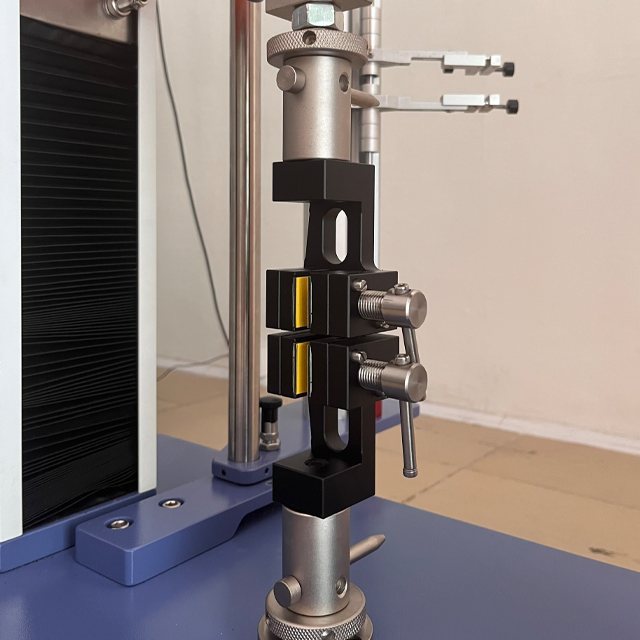

Electronic tensile tester used in tensile test for rubber, plastic, textile fabrics, waterproof material, wire&cable, braided

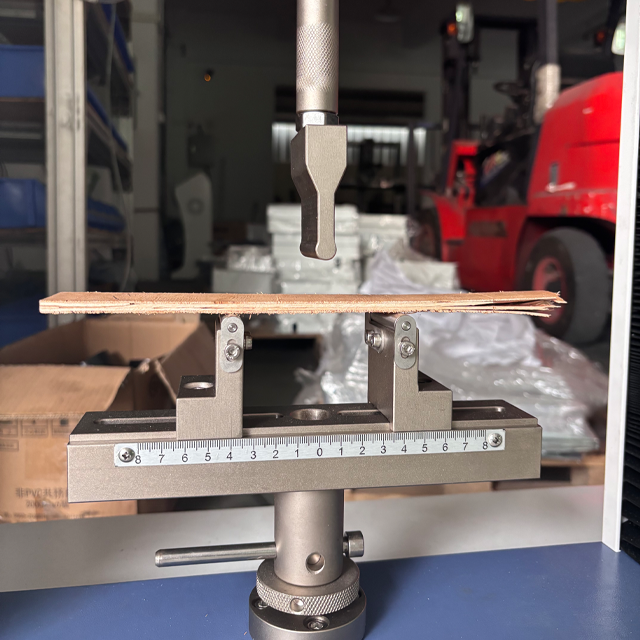

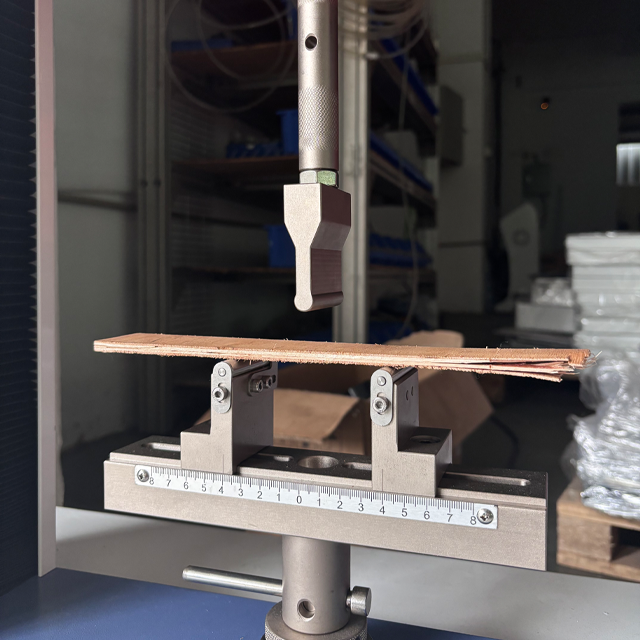

rope, metal wire, metal rod, metal plate.If added other tools this tester can also doing compression or bending test. It has the function of digital display of test force, continuous adjustable test speed, automatic stop when the sample is pulled off, and automatic stop when the peak value is maintained.With good cost performance.
Function And Characteristic
1.To have a wide range of test speed adjustment, low noise and stable operation, this tester uses high precision all-digital speed regulation system which can actuate precision lead screw to doing the test.
2.Touch key operate,LCD real-time display, convenient and swift.
3.This tester have touch key and LCD display.
4.It can choose the microcomputer interface to control the test and to save and print the data.
2.Touch key operate,LCD real-time display, convenient and swift.
3.This tester have touch key and LCD display.
4.It can choose the microcomputer interface to control the test and to save and print the data.
|
Technical parameter
|
JY-10
|
JY-20
|
JY-50
|
JY-100
|
|
Max. test force
|
10KN
|
20KN
|
50KN
|
100KN
|
|
Measure range
|
Max. test force: 2% ~ 100%
|
|||
|
Test force accuracy
|
Precede indicating value ±1%
|
|||
|
Displacement measurement
|
Resolution ratio: 0.01mm
|
|||
|
Transformation accuracy
|
±1%
|
|||
|
Speed adjustable range
|
1 ~ 300mm/min
|
1 ~ 300mm/min
|
||
|
Tensile space
|
600mm(Customize)
|
|||
|
Compression space
|
600mm(Customize)
|
|||
|
Mainframe shape
|
Portal frame
|
|||
|
Mainframe dimension
|
660 × 450 × 1700 (mm)
|
800 × 600 ×1800 (mm)
|
||
|
Weight
|
450 kg
|
600 kg
|
700 kg
|
|
