Equipment summary:

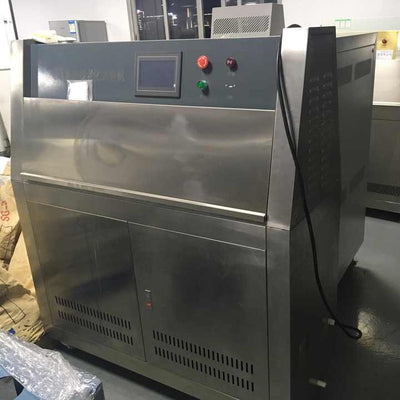

QUV UV aging testing machine can simulate the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

Corresponding standard:

Accord with ASTMG53-77, GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS, SAE, ASTM D4355, ISO-4892, ASTM-G53, D4587, 4799, BS-27282, SAE-J2020

Applicable industries:

It is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, , etc.

Model	JY-786
Inside Dimensions (CM)	45×117×50
Outer Dimensions (CM)	70×135×145
Rate of Work	4.0(KW)
Temperature Range	RT+10℃~70℃
Humidity Range	≥95%R.H
Distance Between Lamps	35mm
Distance Between Samples and Lamps	50mm
Specimen Number	L150mm×W75mm, about 48pics
Ultraviolet Wavelength	290nm~400nm UV-A340,UV-B313,UV-C351(state clearly in your order )
Rate of the Lamp	40W
Controller	touch screen programmable controller
Condensation Humidifying System	stainless steel shallow evaporative humidifier
Blackboard Temperature	double metal blackboard meter
Water Supplying System	Humidification water supplying automatic control
Exposure Way	moisture condensation way exposure, light radiation exposure
Safety Device	leakage, short circuit, super temperature, water shortage and over-current protection

FAQ

1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven, vacuum oven, Universal Tensile testing machine, Environmental Climatic chamber, Muffle furnace, Plastic & Rubber industries, Paper & Package Testing Machines, etc. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

uv Aging Test Chamber
