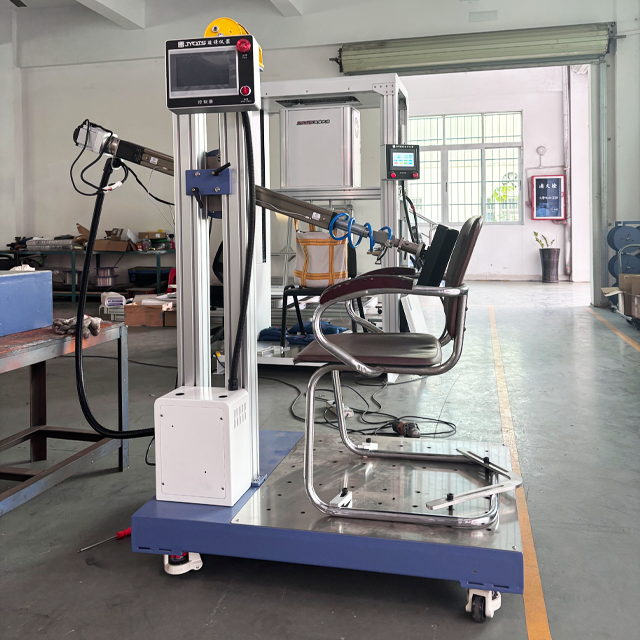

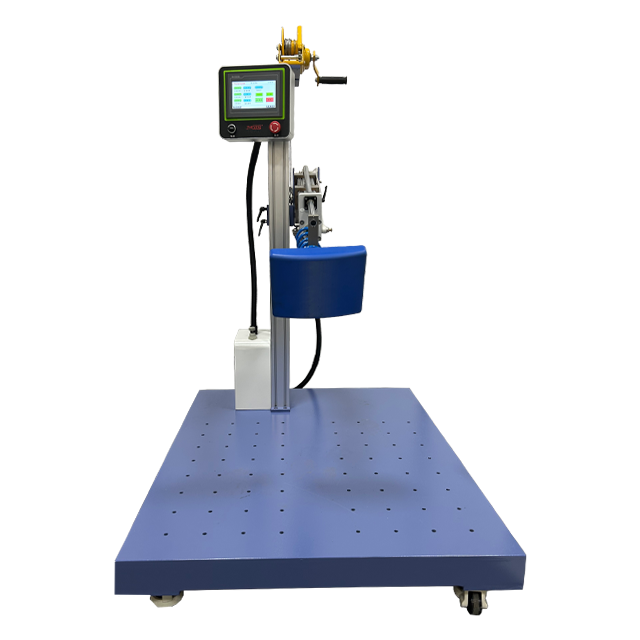

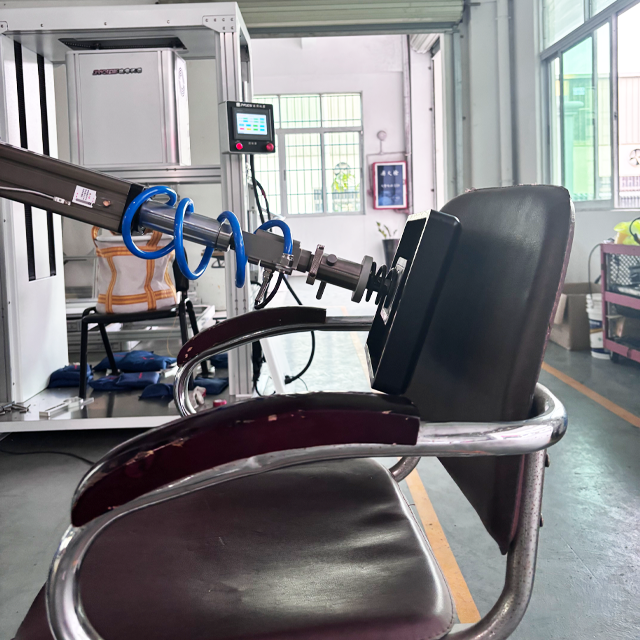

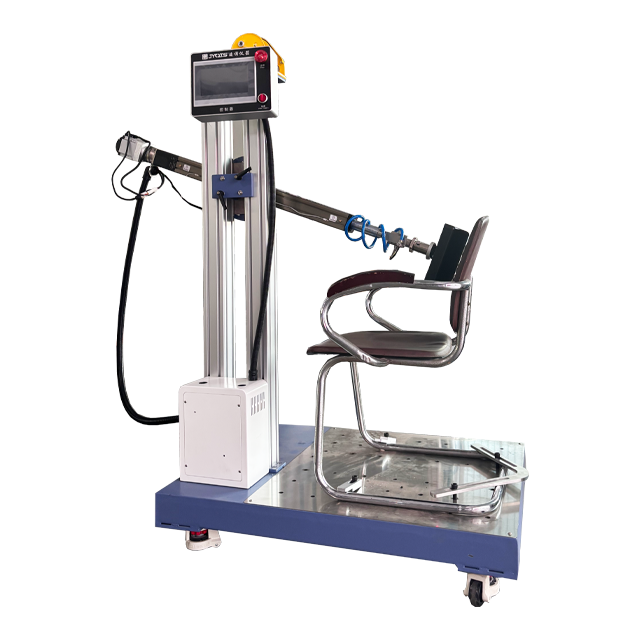

Office chair back-pushing testing machine
PRODUCT DETAILS
Office Chair Backrest Compression Tester – Validate Reclining Safety & Structural Integrity
BIFMA X5.1 §5.13 / EN 1335 Compliant Simulation of User Leaning Forces
Our Backrest Compression Tester rigorously evaluates chair backrests under static, cyclic, and impact loads to prevent structural failures, ensuring compliance with global ergonomic and safety standards for office, gaming, and healthcare seating.
Core Testing Capabilities
Multi-Mode Load Simulation
- Static Compression: Apply 300–1,000 N forces (BIFMA X5.1 standards) to simulate user leaning.
- Cyclic Fatigue: 100,000+ cycles at 0.5–5 Hz (simulate reclining over product lifetime).
- Sudden Load Impact: 15–50 J impact energy via pendulum/drop module (simulate abrupt reclining).
- Torsional Stability: ±15° twist tests for flexible backrests.
Precision Measurement
- Force Accuracy: ±0.5% FS (Class 0.5 load cell).
- Deformation Tracking: Laser displacement sensors (0.01 mm resolution).
- Angle Control: ±0.1° precision for recliner mechanisms.
- Failure Detection: Auto-stop upon fracture or irreversible deformation.
Smart Operation
- 10" Touchscreen: Pre-loaded BIFMA X5.1, EN 1335, ANSI/BIFMA, and GB/T 22894.
- Adaptive Fixtures: Auto-adjust for backrest heights (300–900 mm) and curvatures.
- Real-Time Reporting: Export force-time curves, displacement graphs, and compliance certificates.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Load Capacity | 5 kN (1,124 lbf) |
| Test Speed | 1–500 mm/min (static), 0.5–5 Hz (cyclic) |
| Angular Range | ±15° (torsion mode) |
| Impact Energy | 15–50 J (pendulum module) |
| Backrest Width Range | 250–700 mm (adjustable) |
| Compliance | CE, ISO 17025, BIFMA X5.1-2023 |
Applications
✅ Office Chairs: Mesh, plastic, or steel-frame backrests.
✅ Gaming Chairs: High-stress testing for recliner mechanisms.
✅ Healthcare Seating: Validate wheelchair/massage chair back supports.
✅ Material R&D: Compare polymer composites, aluminum, and tubular steel designs.
Key Advantages
✅ Fail-Safe Testing: Overload protection + deformation alerts prevent sample damage.
✅ Modular Upgrades:
- Integrated seat-back testing (combines with seat compression module).
- Environmental chamber (-40°C to +80°C).
- 6-axis force/torque sensors.
✅ Cost Efficiency: 50% faster testing vs. manual machines (auto-reset system).
✅ Compliance-Ready: Generate BIFMA/EN pass reports with one click.
Customer Testimonials
"Failed 3 BIFMA certifications due to backrest weld cracks. This tester exposed flaws in prototype stage – saved $250K in recalls!"
– ErgoDynamics Inc., USA
"100,000-cycle testing proved our bamboo-reinforced backrests outlasted plastic by 3x. Critical for sustainability claims!"
– GreenSeat Solutions, Sweden
FAQ
Q: Can it test chairs with lumbar support mechanisms?
A: Yes – add-on fixtures simulate adjustable lumbar systems (manual or motorized).
Q: How to test curved/flexible backrests?

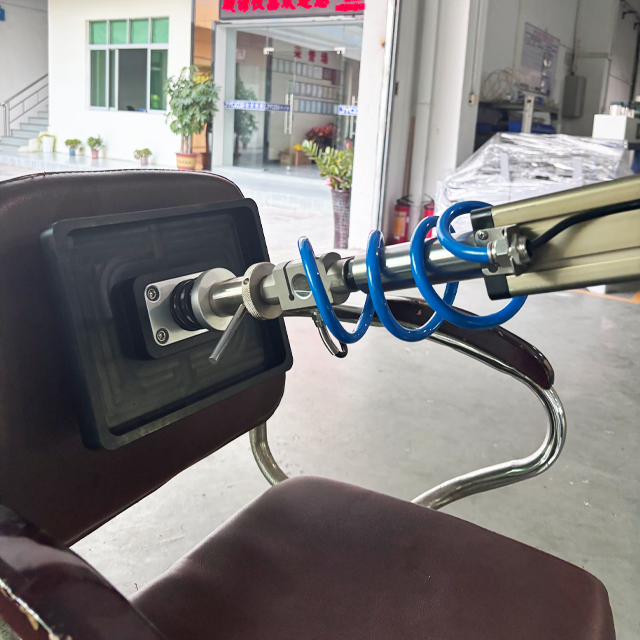

A: Contoured compression heads included (flat/arc/custom 3D profiles).
Q: What maintenance is required?

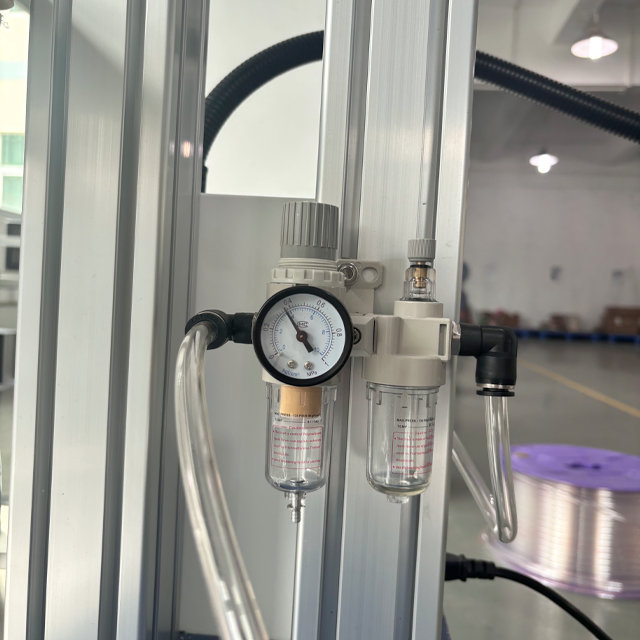

A: Self-lubricating actuators – only annual calibration recommended.
Q: Is training provided?
A: Free virtual training + 24/7 remote support included.
Request Custom Configuration or Live Demo!
📞 Speak to a Test Engineer | 📧 Download BIFMA X5.1 Checklist | 🌍 Global Delivery in 4 Weeks
SEO Keywords:
Office chair backrest compression testerBIFMA X5.1 compliance test machineChair backrest durability testerFurniture safety testing equipmentEN 1335 backrest test system
Ideal for:
- Office furniture OEMs
- Gaming chair brands
- Third-party testing labs
- Healthcare seating manufacturers
- Material engineering labs
