Office chair seat surface impact testing machine
PRODUCT DETAILS

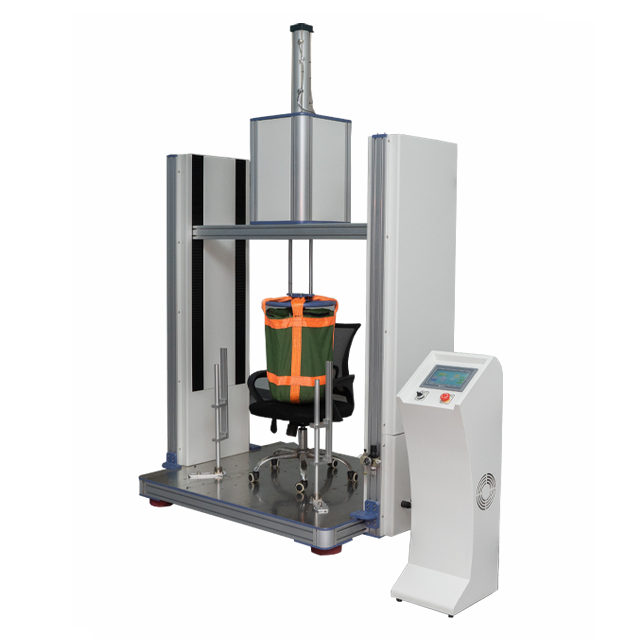

Office Chair Seat Impact Tester – Simulate Real-World Durability & User Safety
BIFMA X5.1, EN 1728 & ANSI/BIFMA Compliant Impact Testing for Seat Foam, Frames & Mechanisms
Our Seat Impact Testing Machine replicates years of dynamic loads, drops, and shocks to validate seat durability, ensuring chairs withstand heavy use without structural failure or safety risks.
Core Testing Modes & Features
Multi-Energy Impact Simulation
- Free-Fall Drop Test: 25–100 kg weights from 50–500 mm height (adjustable per BIFMA §7.3).
- Pendulum Impact: 15–50 J energy strikes to simulate sudden lateral forces (e.g., chair tipping).
- Cyclic Fatigue Test: 50,000+ vertical impacts at 1–10 Hz (simulate repeated sitting).
Precision Measurement
- Force Accuracy: ±1% FS with piezoelectric sensors (0–20 kN range).
- Deformation Tracking: 3D laser scanning for foam compression & frame deflection (0.01 mm resolution).
- Energy Calculation: Auto-measure absorbed energy (J) and rebound coefficients.
Automation & Compliance
- Auto-Reset System: Robotic arm reloads weights for 24/7 batch testing (50+ seats/day).
- Pre-Loaded Standards: BIFMA X5.1 (100,000 cycles), EN 1728, GB/T 10357.
- Real-Time Alerts: Detect foam collapse, frame cracks, or mechanism jams.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Impact Energy | 500 J (100 kg × 500 mm) |
| Test Frequency | 1–10 Hz (cyclic mode) |
| Drop Weight Range | 25–100 kg (standard) / Custom up to 200 kg |
| Impact Head Diameter | 100–400 mm (interchangeable) |
| Data Sampling Rate | 10,000 Hz |
| Compliance | CE, BIFMA X5.1-2023, ISO 17025 |
Applications
✅ Office Chairs: Test foam density, mesh elasticity, and frame welds under BIFMA cycles.
✅ Gaming Chairs: Validate high-impact seats for long-duration use.
✅ Public Seating: Ensure stadium/theater chairs withstand crowd dynamics.
✅ Foam Suppliers: Certify PU foam durability for OEM contracts.
Why Choose Our Impact Tester?
✅ Multi-Standard Testing: Single machine covers BIFMA, EN, ANSI, and GB/T.
✅ Fail-Safe Design: Overload protection, emergency stop, and shock-absorbing base.
✅ Data-Driven Insights: Generate heatmaps of seat stress distribution and fatigue life curves.
✅ Global Certification: NIST-traceable calibration with 3-year warranty.
Customer Success Stories
“This tester exposed weak foam bonding in our ergonomic chairs, cutting returns by 25%.”
– UrbanSeat Co., USA
“Achieving BIFMA 100k-cycle certification helped us win a government contract for 10,000 chairs.”
– National Furniture Ltd., Australia
FAQ
Q: How to prepare samples?
A: Mount complete chairs or isolate seats (with frames) under real-use conditions.
Q: Can it test seats with tilt mechanisms?
A: Yes! Lock tilt angles or simulate dynamic reclining during impacts (optional module).
Q: What’s the maintenance cost?
A: <$300/year – self-lubricating guides and minimal wear parts.
Q: Can it test non-flat seats (e.g., contoured designs)?
A: Yes – use interchangeable impact heads (hemispherical, flat, or custom shapes).
Request a Quote or On-Site Demo!
📞 Engineering Consultation | 📧 Download Test Protocols | 🌍 Global Installation in 4 Weeks
