50L Custom sizes available

At high temperatures, the test can reveal potential issues such as softening, reduced performance, altered characteristics, potential damage, and oxidation of product components and materials (for example, the softening or melting of fillers and seals, decreased stability and insulation damage in electronic circuits, and accelerated aging of polymers and insulators). At low temperatures, the test can reveal issues such as cracking, brittleness, jamming of moving parts, and altered characteristics (for example, hardening and brittleness of materials, changes in the performance of electronic components, water condensation and ice formation, and mechanical structural changes due to material contraction).

Test Standard 1.IEC60068-2-1 2.IEC60068-2-2 3.IEC60068-2-38 4.IEC60068-2-78

Model	JY-100	JY-150	JY-225	JY-408	JY-800	JY-1000
Inner volume	100L	150L	225L	408L	800L	1000L
WHD(mm)inner size	400500500	500600500	500750600	600850800	10001000800	10001000100
WHD(mm)external size	60014001300	70015001300	70016501400	80017501600	120019001650	120019001850

Temperature range	Low temperature:0℃、-20℃、-40℃、-55℃-60℃、-70℃；high：+150℃、+100℃、+80℃（adjustable）
Humidity range	5%~98RH;10%~98%RH; 20%~98%RH
Temperature change rate	3℃/min, 5℃/min, 10℃/min,15℃/min, 20℃/min,25℃/min (adjustable)
Temperature fluctuation	±0.2℃
Humidity fluctuation	±3%RH
Temperature uniformity	≤2℃
Humidity uniformity	±3%RH
Heating time	About 3~4℃/min
Temp.rising speed	+10℃→+80℃ 25 min nonlinearity（load testing））
Lead hole	2pcs 50mm (customize)

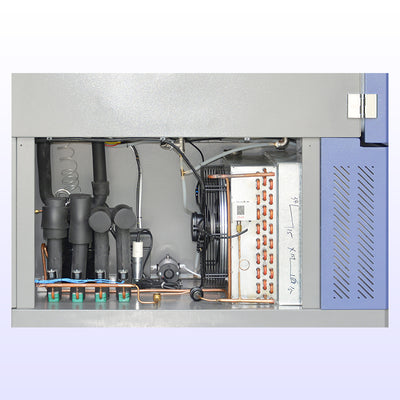

Condenser	Air-cooled condenser.
Cooling time	About 0.7℃~1.5℃/min (customize , linear or nonlinear )
Cooling method	Air or water cooling type
Heating system	Stainless steel fin heat pipe heating air way
Materials	SUS304 stainless steel
Total power	AC380V、50Hz、Three-phase four-wire + protected ground.

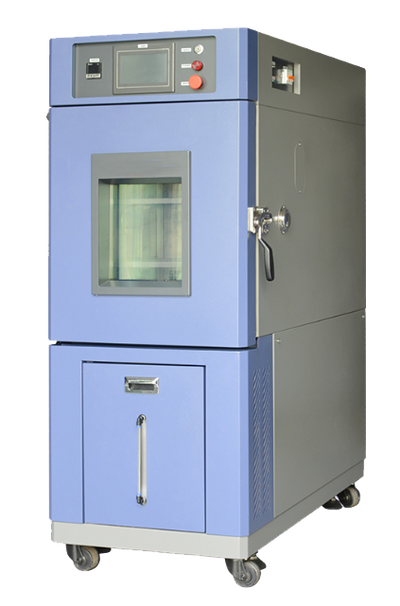

80L Constant temperature and humidity test chamber for electronics and semiconductors
