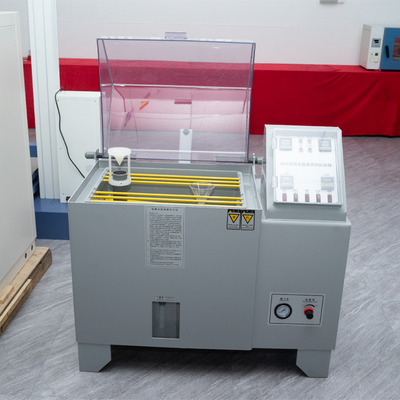

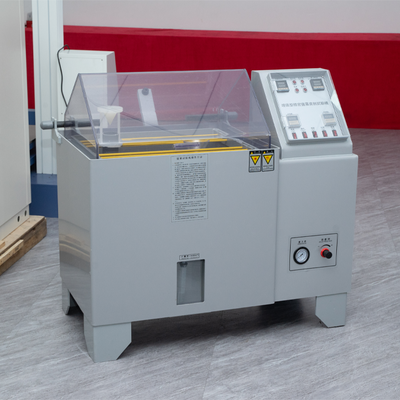

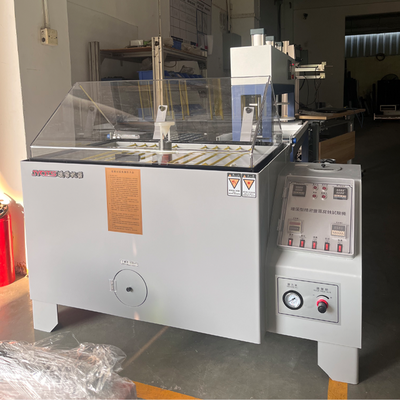

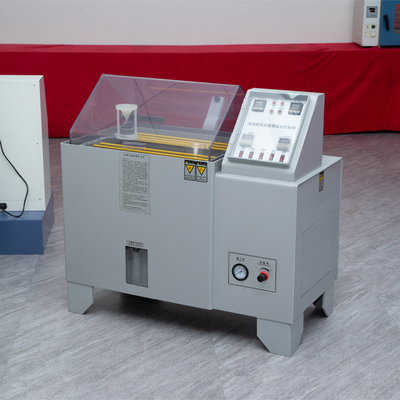

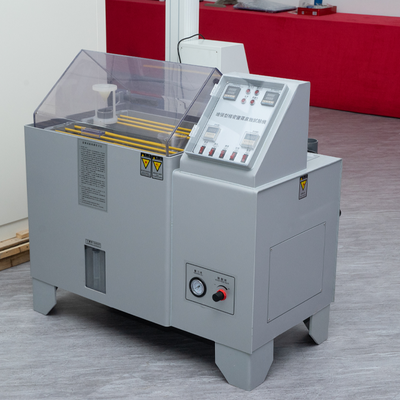

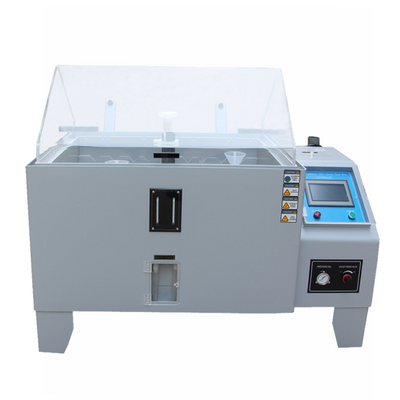

Salt Spray Test Chamber

Simulate Harsh Environments to Validate Material Durability

Our Salt Spray Test Chamber is engineered to replicate corrosive salt-laden environments, enabling industries to predict product lifespan and compliance with global standards like ASTM B117, ISO 9227, and JIS Z 2371. Ideal for automotive, aerospace, electronics, and coatings industries, this chamber ensures your materials withstand the toughest real-world conditions.

Key Features & Technical Excellence

🔬 Advanced Testing Modes

Neutral Salt Spray (NSS): 5% NaCl solution, pH 6.5–7.2, for general corrosion evaluation.
Acetic Acid Salt Spray (AASS): Accelerated testing with pH 3.1–3.3 for automotive coatings.
Copper-Accelerated Salt Spray (CASS): Rapid assessment of decorative electroplated layers.

🌡️ Precision Control

Temperature Range: Ambient to 55°C (±1°C stability).
Salt Settling Rate: 1–2 mL/80cm²/hour (adjustable via digital pressure regulation).
Chamber Material: Corrosion-resistant PP/FRP or PVC construction with stainless steel fog tower.

💻 Smart Operation

7-inch touchscreen with pre-loaded test profiles (ASTM, ISO, DIN).
Automatic pH monitoring, brine replenishment, and humidity compensation.
Data logging via USB/RS-485 and remote monitoring (optional).

Applications

✅ Automotive: Test coatings, fasteners, and electrical connectors for coastal or winter road salt resistance.
✅ Electronics: Validate PCB conformal coatings and connector housings against salt-induced failures.
✅ Aerospace: Assess aluminum alloys and magnesium components in marine atmospheres.
✅ Coatings & Plating: Qualify paint, zinc, nickel, or chrome layers for porosity and corrosion resistance.
✅ Construction: Evaluate hardware, steel structures, and marine-grade materials.

Technical Specifications

Parameter	Specification
Test Standards	ASTM B117, ISO 9227, JIS Z 2371
Chamber Capacity	60L / 150L / 300L / 1000L (custom)
Temperature Control	±1°C accuracy
Spray System	Pneumatic atomizer with ceramic nozzle
Power Supply	220V/50Hz or 380V/60Hz
Dimensions	1200×800×1000mm (standard 150L model)

Why Choose Our Salt Spray Chamber?

✅ Durability: Reinforced PP body resists deformation and chemical corrosion.
✅ Low Maintenance: Self-cleaning nozzles and easy-drain design minimize downtime.
✅ Custom Solutions: Add cyclic humidity, drying functions, or multi-zone testing.
✅ Global Compliance: CE, RoHS, and ISO 9001 certified.
✅ Support: 24/7 technical assistance with 3-year warranty.

Customer Success Stories

“This chamber streamlined our coating validation process. The CASS mode helped us identify a plating defect in just 24 hours!”
– AutoTech Manufacturing, Germany

“The precise pH control and data export features saved us weeks of lab work. Highly recommended for ISO 9227 testing.”
– Oceanic Aerospace, USA

FAQ

Q: How long does a typical salt spray test run?
A: Tests range from 24h (quick checks) to 1000h (long-term validation). We provide programmable cyclic modes.

Q: Can I test non-metallic materials like plastics?
A: Yes! Use NSS mode to evaluate color fading, cracking, or electrical insulation degradation.

Q: How often should I clean the chamber?
A: Flush the system after each test and deep-clean monthly. Our user manual includes a maintenance checklist.

Q: Do you offer combined corrosion-humidity chambers?
A: Yes! Ask about our Cyclic Corrosion Test Chambers for multi-environment simulations.

Boost Your Quality Control Today!

📞 Request a Free Quote
📧 Customize Your Chamber
🚚 Global Shipping & Installation Support
