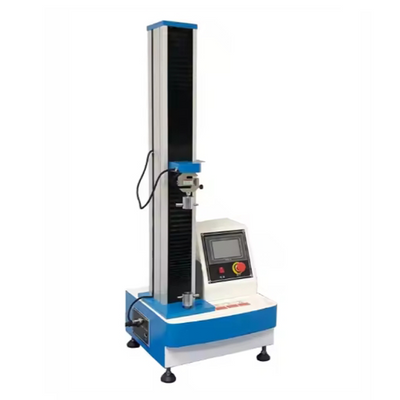

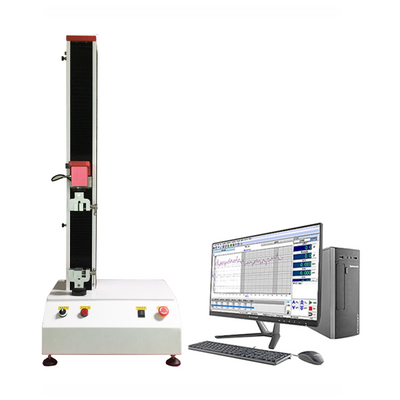

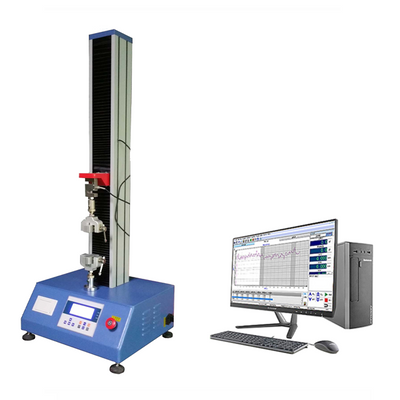

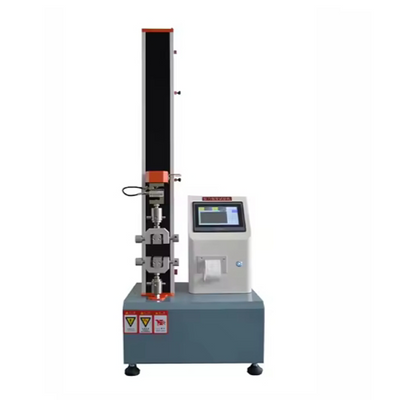

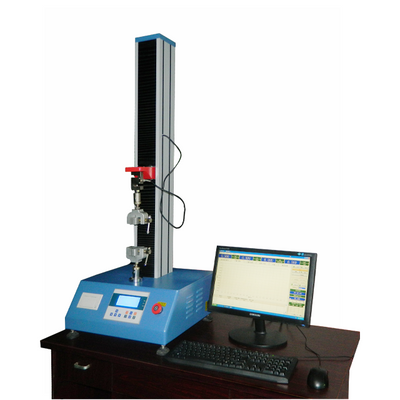

Touchscreen Single-Column Tensile Tester – Compact Precision for Materials & Components

ISO 6892, ASTM D638 & ASTM E8 Compliant Testing in Benchtop Design
Our Touchscreen Single-Column Tensile Tester integrates high-accuracy force measurement (±0.5% FS) with intuitive touch controls for rapid tensile, compression, peel, and bend tests – ideal for plastics, textiles, adhesives, and thin metals.

Key Features & Advantages

Smart Touchscreen Operation

10" Touchscreen: Preloaded ISO, ASTM, GB/T, and JIS standards with one-touch testing.
Auto-Calibration: Self-diagnosis and guided calibration routines.
Real-Time Curves: Graph force-displacement, stress-strain, and modulus data live.

Precision Performance

Capacity Range: 5 kN / 10 kN / 20 kN / 50 kN (1,125–11,240 lbf).
Speed Range: 0.001–600 mm/min (creep to high-speed testing).
Accuracy: ±0.5% FS (Class 0.5) with temperature-compensated load cell.
Displacement Resolution: 0.0001 mm (optical encoder).

Modular Flexibility

Quick-Change Fixtures: Swap grips for tensile, compression, peel, or friction tests in <60 sec.
Optional Attachments:
- Video Extensometer (non-contact strain).
- Thermal Chamber (-40°C to +200°C).
- Advanced Software Package (FEA data export).

Technical Specifications

Parameter	Specification
Max Load Capacity	50 kN (11,240 lbf)
Test Space Height	950 mm (adjustable)
Control Modes	Position / Speed / Force / Strain
Data Sampling	1,000 Hz
Grip Types	Wedge, pneumatic, rollers, film grips
Compliance	ISO 7500-1, CE, RoHS

Applications

✅ Plastics & Films: Tensile tests (ASTM D638), tear strength (ISO 34-1).
✅ Textiles & Nonwovens: Yarn strength, zipper durability (ASTM D5035).
✅ Adhesives: Peel strength (ISO 11339), shear tests (ASTM D3165).
✅ Electronics: PCB flexure, solder joint strength (IPC-TM-650).
✅ Medical Devices: Catheter tensile, packaging seal tests (ISO 11607).

Why Choose Our Benchtop Tester?

✅ Space-Saving: 50% smaller footprint vs. dual-column systems.
✅ Zero Learning Curve: Drag-and-drop test programming on intuitive touch UI.
✅ Lab-Grade Accuracy: High-repeatability results (<±0.7% RD).
✅ Cost Efficiency: 30% lower ownership cost vs. competitors.

Customer Success

“Testing 100+ adhesive strips daily with touchscreen presets cut operator training from weeks to hours!”
– MediSeal Packaging, Germany

“The video extensometer caught micro-cracking in OLED films our manual system missed.”
– FlexTech Displays, South Korea

FAQ

Q: How accurate is the strain measurement?
A: ±0.5% with optical encoder or ±0.2% with optional video extensometer.

Q: Can it perform cyclic fatigue tests?
A: Yes! Pre-programmed fatigue cycles (1–10 Hz) with SN curve analysis.

Q: What sample sizes are supported?
A: Max width: 150 mm; Max thickness: 40 mm (custom fixtures for larger samples).

Q: How to export reports?
A: USB/Excel/PDF or direct cloud sync (QTestLab™ software).

Request Quote or Virtual Demo!

📞 Technical Support | 📧 Get Compliance Checklist | 🌍 Global Delivery in 2 Weeks
